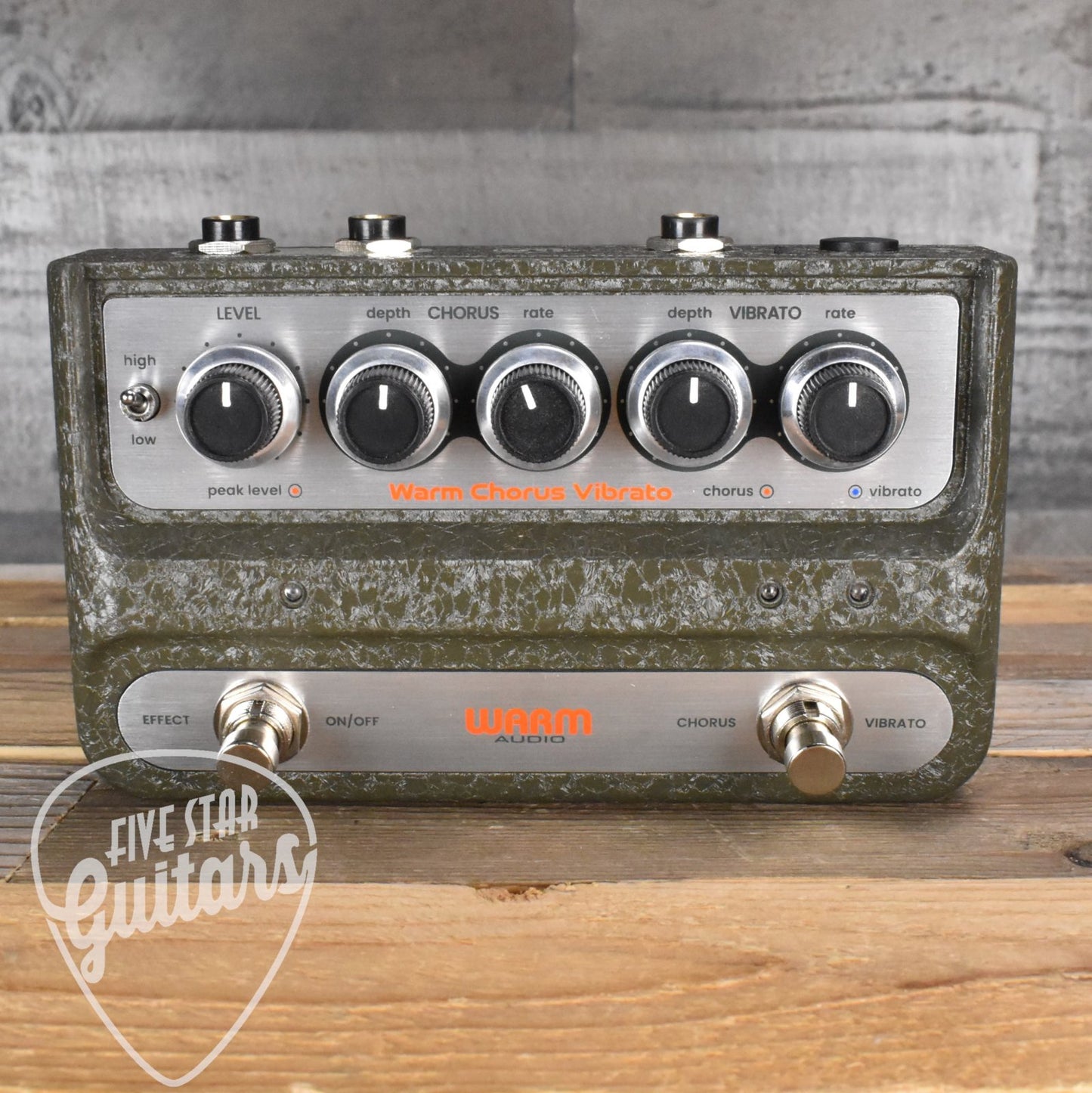

Warm Audio WA-C1 Chorus Vibrato

The Warm Audio WA-C1 Chorus Vibrato: Vintage Analog Depth and Modern Flexibility

The Warm Audio WA-C1 Chorus Vibrato pedal brings back the iconic analog chorus and vibrato tones that have shaped the sound of countless legendary musicians. Inspired by the classic chorus/vibrato pedals of the past, the WA-C1 delivers the same rich depth, lush modulation, and tonal character with additional controls for more fine-tuned sound shaping. Equipped with separate rate and depth controls, as well as a brightening option for added clarity, this pedal offers a more versatile range of chorus and vibrato tones while staying true to its vintage roots. Ideal for both subtle modulation and dramatic, swirling effects, the WA-C1 is a must-have for players who want that classic sound with modern enhancements.

Classic Chorus and Vibrato with Enhanced Control

The WA-C1 takes everything players loved about the original chorus/vibrato pedals and enhances it with modern features. Its 100% analog preamp is always engaged, adding warmth and character to your signal, whether you're dialing in the chorus or vibrato mode. The carefully designed circuit offers deep, rich modulation that can be adjusted from subtle, ambient textures to full-on swirling, warbling effects. With separate rate and depth controls, you can fine-tune the pedal to your exact preferences, and the true-to-original Bucket Brigade Device (BBD) analog circuit ensures that the classic tones are always at your fingertips.

True Analog Tone and Premium Components

At the heart of the WA-C1 is the Xvive MN3007 BBD chip, a premium recreation of the chip used in the original vintage chorus pedals. This, along with premium Texas Instruments audio op-amps and a carefully designed signal path, ensures the WA-C1 delivers authentic, warm analog tone. The pedal?s Hi-Z input setting adds even more versatility, allowing you to increase the upper-mids and treble for an 80s-inspired sound. The selectable input sensitivity also provides added headroom and clarity, making this pedal an excellent choice for guitarists looking for both vintage and modern sounds.

Rugged Design with Easy Monitoring

The WA-C1 features a sturdy design built to withstand the rigors of touring and live performance. A flashing LED on the pedal face allows for easy monitoring, showing which setting is engaged and the rate of modulation. The true bypass switching ensures that your tone remains pure when the pedal is disengaged, while the dual outputs provide flexible stereo operation for expansive, immersive effects.

Specifications:

• Circuit: 100% Analog Stereo Chorus & Vibrato
• Controls: High/Low Input Sensitivity, Preamp Level, Chorus Depth & Rate, Vibrato Depth & Rate, Effect On/Off, Chorus/Vibrato Switch, Hi-Z On/Off
• Components:
  • (5X) IC?s including 3X Texas Instruments Premium Audio Op Amps in signal path
  • (11X) Discrete Transistors
  • (3X) FETs
  • (19X) Diodes, 2 x MOSFETs
  • Premium Xvive MN3007 BBD chip
• Power Consumption: 800mW; 90mA at 9V with vintage-correct internal voltage operation via dual DC-DC voltage converter
• Input Sensitivity: 80mV / 10mV
• Output Level: 315mV
• Jacks: (1X) Input, (2X) Outputs
• Dimensions: W: 6.5" | H: 3.8" | D: 1.6"
• Weight: 1.9 lbs
