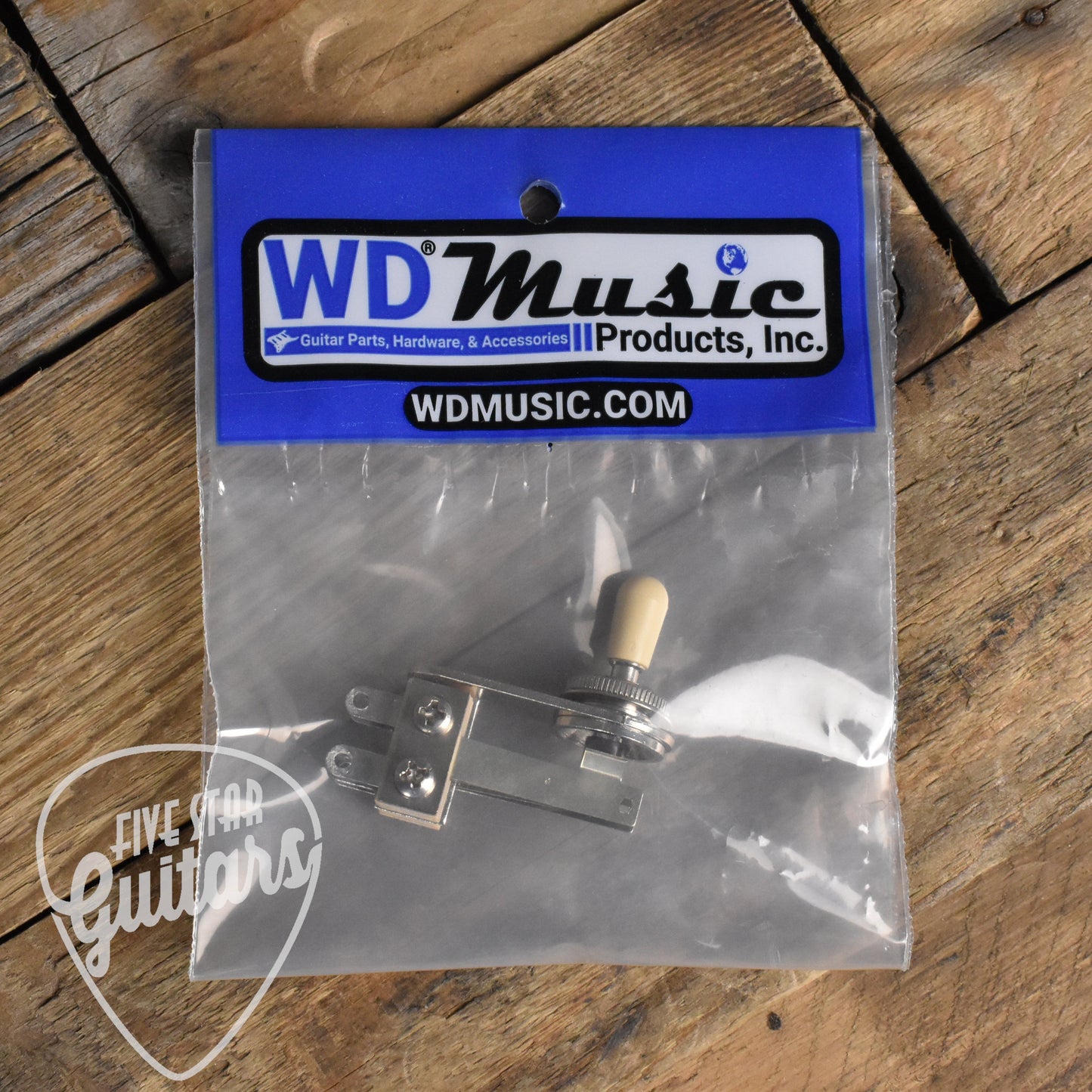

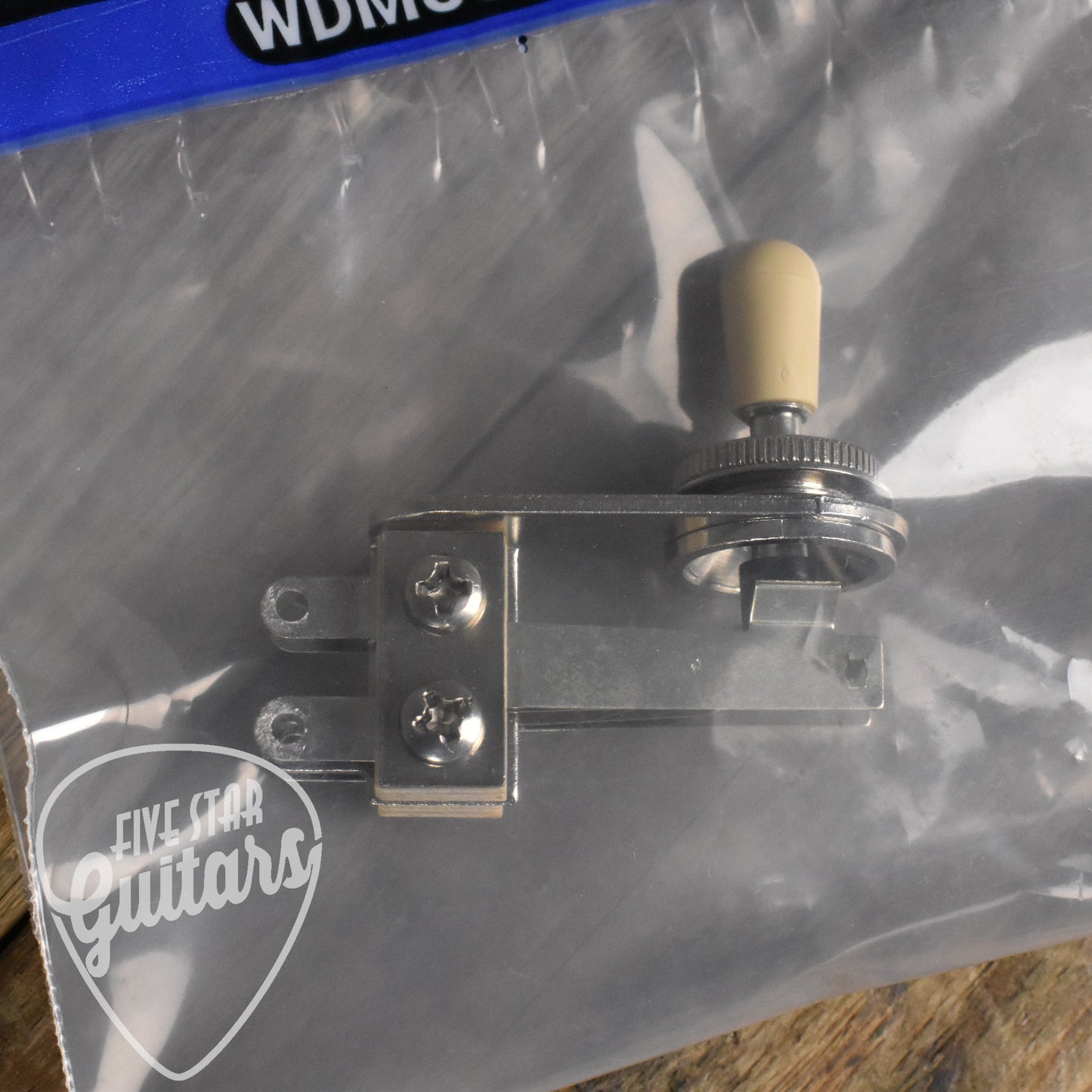

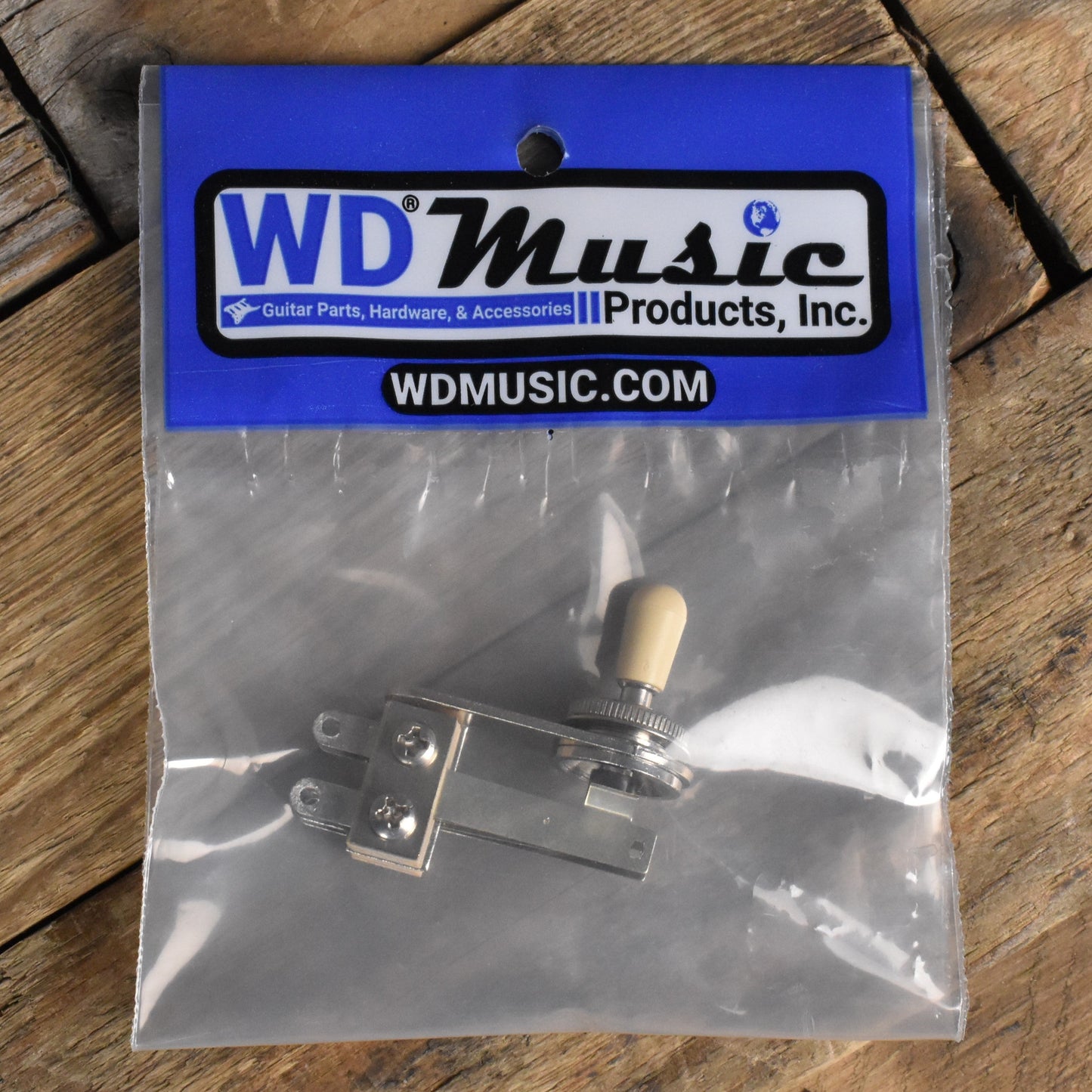

Switchcraft Right Angle 3 Way Toggle Switch

Switchcraft Right Angle 3 Way Toggle Switch

Regular price $ 32.25 USD
Regular price $ 0.00 USD Sale price $ 32.25 USD
Sale Sold out

SKU:73780

Switchcraft 3 Position Right Angle Toggle Switch

This is the exact Switchcraft right angle toggle switch as used in Gibson SG guitars or where the short 3/16 in. bushing length only has to pass through a thin wood top or pickguard. Switchcraft #12013.

Electrical:

  • Contact Ratings: Fine silver contacts rated at 3A, 300W maximum AC non-inductive load standard.
  • Leakage Resistance: 1,000 MW or greater
  • Dielectric Strength: 250 VDC

Materials:

  • Frame: Steel, plated
  • Bushing and Shaft: Copper alloy, plated
  • Springs: Copper alloy
  • Knob: Molded thermoplastic
  • Mounting Hardware: Knurled copper alloy locknut T10711, supplied
  • Insulation: Rigid plastic spacers with plastic tubing through stack. Rigid plastic and/or thermoplastic lifters. Thermoplastic cam on actuator end
