Strymon Zuma Isolated Power Supply

ÿ

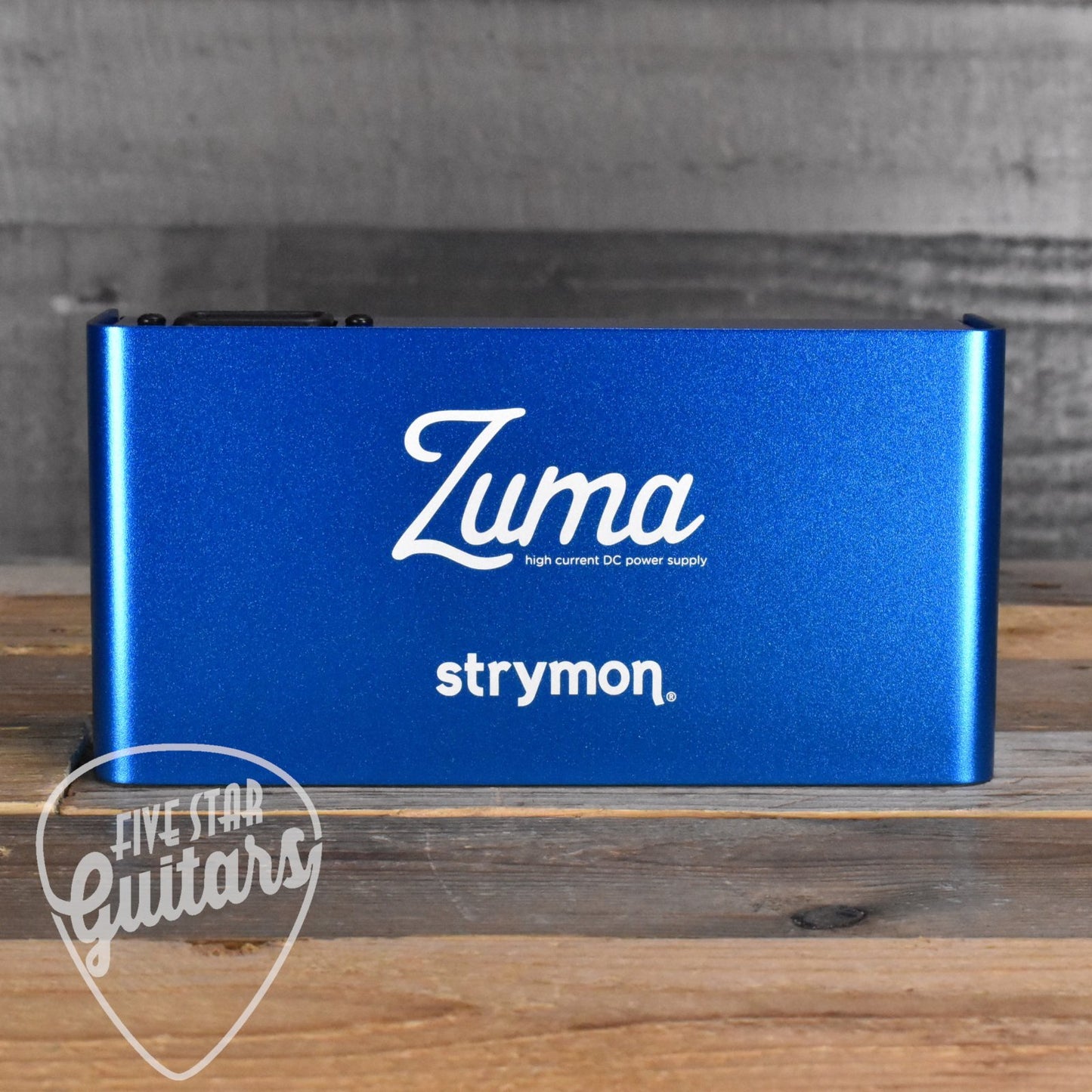

Strymon Zuma Power Supply: Never Worry About Power Again

When it comes to power supplies, everyone's got their favorite, but not all power supplies are created equal. Especially if you're running a lot of modern, digital pedals, you can use up all the current in a One Spot or Pedal Power 2 quickly, such that even if you have enough outputs, your pedals won't all be able to turn on simultaneously. The folks at Strymon saw this problem, and they used it as inspiration to design the Zuma, their top-of-the-line pedal power solution.

Ultimate Power Solution for Your Pedals

The Zuma gives you 7 dedicated 9V, 500mA outputs, ensuring you never have to worry about how much current your pedal draws (some exclusions may apply). You can run a whole board of just Strymon or Source Audio pedals without your power supply breaking a sweat. Additionally, the Zuma features 2 switchable outputs that offer the 3 most common voltages for pedal power supplies: 9V, 12V, and 18V, totaling 9 outputs.

Expandable and Versatile

The Zuma is expandable, allowing you to link multiple power supplies together using the 24V thru feature, so you only need one IEC cable. This feature works seamlessly with its companion product, the Ojai, enabling you to expand your power supply setup as needed.

Superior Isolation and Regulation

The Zuma addresses common power supply issues by providing double isolation to eliminate ground loop hum and other AC power noise. The power is also heavily regulated, ensuring consistent voltage and current levels regardless of the load. Designed for international use, the Zuma is compatible with various wall voltages worldwide, making it perfect for musicians who travel.

Key Features

• 9 Outputs Total: Powers up to 9 effects pedals simultaneously.
  • 7 Standard Outputs: 9V, 500mA each.
  • 2 Switchable Outputs: 9V/12V/18V for pedals with higher voltage requirements.
• Dual Isolation: Eliminates power noise and ground loop hum.
• Expandable: Connect up to 6 Ojai units to power up to 39 pedals total.
• International Compatibility: Works with 100V-240V AC; just plug in the appropriate IEC cable.
• Included Cables: 9 pedal power cables (5.5mm x 2.1mm barrel connectors, center negative, right angle to straight cables) and 1 IEC wall cable.

Specifications

• Inputs: 100V-240V AC (IEC cable included)
• Outputs:
  • 7 x 9V DC outlets
  • 2 x switchable 9V/12V/18V outlets
  • 1 x 24V thru jack for additional Ojai (sold separately)
• Maximum Output Current: 500mA per output
• Dimensions:
  • Height: 1.8"
  • Width: 6.8"
  • Depth: 3.3"
• Weight: 1.25 lbs
• Manufacturer Part Number: Z12A-ZUMA

Treat your pedals to the power supply they deserve. Come try the Strymon Zuma today!

This power supply ships fully insured with signature required.
