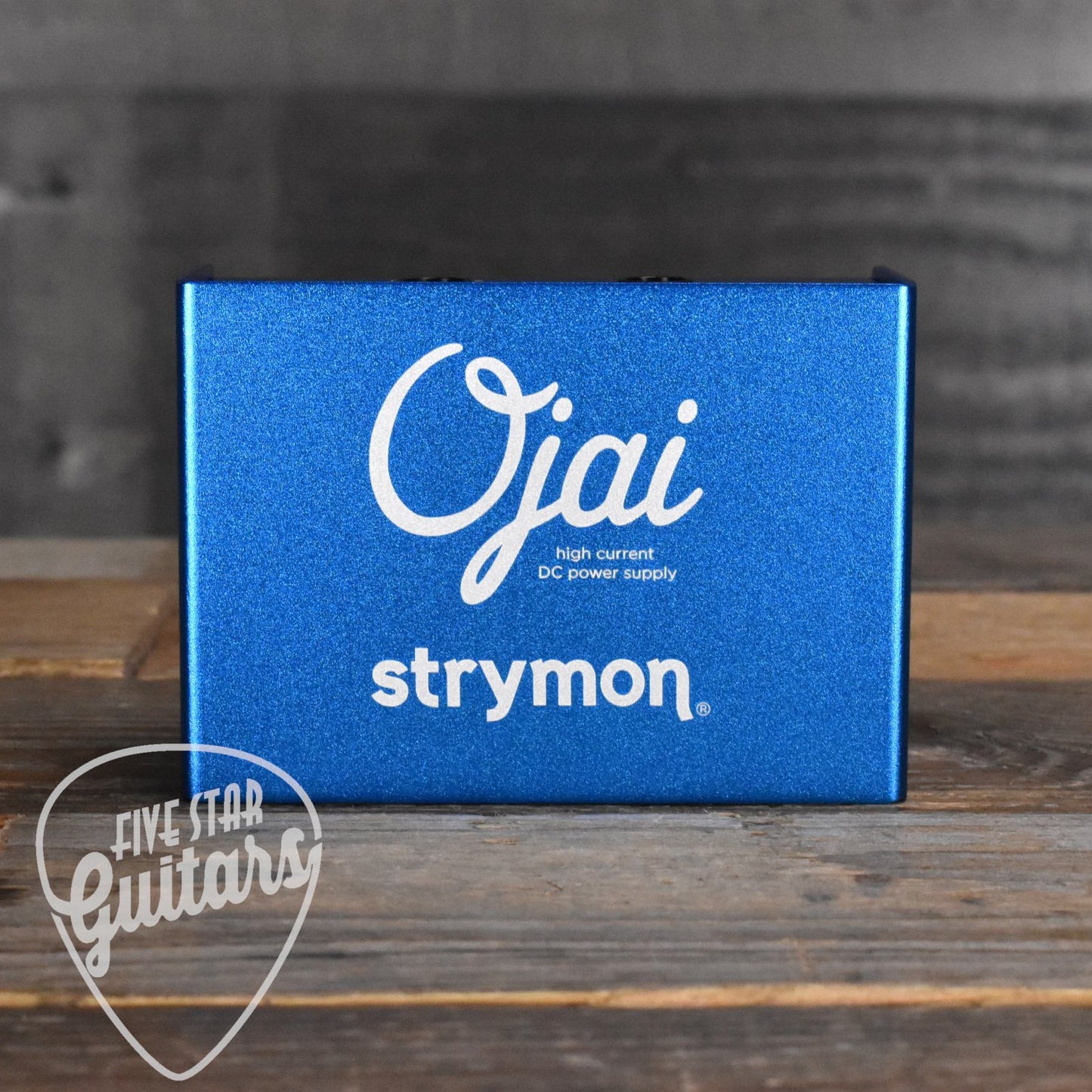

Strymon Ojai Compact Isolated Power Supplyÿ

Strymon Ojai: Huge Horsepower, Small Size

Power your pedals with the Strymon Ojai, the highest horsepower, most technologically advanced effects pedal power supply of its size. Ojai delivers clean, rock-steady power to your effects pedals in a lightweight and expandable package, providing flexibility and room to grow.

Superior Power and Flexibility

You get five high-current, individually isolated, ultra-low-noise outputs?each with its own dedicated regulator and custom transformer. Each output provides a massive 500mA of current. Ojai?s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering result in a power supply that allows your pedals to achieve their highest possible dynamic range.

Dual Isolation

Ojai?s all-analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.

World Tour Ready

With automatic international power compatibility built-in, Ojai delivers clean, reliable power to all your pedals, on any stage anywhere you play in the world.

Expandable System

Have a growing rig? Ojai is part of an expandable system. Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai to add five more outputs to the Zuma power supply (sold separately).

Features:

• High-Current Outputs: Five fully isolated 9V outputs with center-negative polarity, each providing 500mA.
• Dual Isolation: Two stages of isolation eliminate ground loop and AC line noise issues.
• Worldwide Power Compatibility: Ensures no-hassle international touring.
• Expandable System: Connect additional Ojai units via the 24V Thru jack.
• Advanced Filtering: Allows pedals to achieve their highest dynamic range.
• Compact and Rugged Design: Lightweight anodized midnight blue aluminum chassis fits under nearly any pedalboard.

Specifications:

Ins & Outs

• Outputs: 5 high-current, fully isolated 9V outputs with center-negative polarity
• Current Per Output: 500mA
• Included Cables: 5 pedal cables (5.5mm x 2.1mm barrel connectors, right angle to straight)
• Power Adapter: 24V power adapter (PS-124), EIAJ-05 power adapter cable, and IEC cable included
• 24V Thru Jack: Allows connection to additional Strymon Ojai units (sold separately)

Technology

• Transformers: 5 individual custom transformers (one per channel)
• Power Compatibility: Worldwide
• Design: Energy efficient, compact design

Construction

• Material: Lightweight and rugged anodized midnight blue aluminum chassis
• Dimensions: Fits under nearly any pedalboard
• Manufacturing: Designed and built in the USA

This power supply ships fully insured with signature required.
