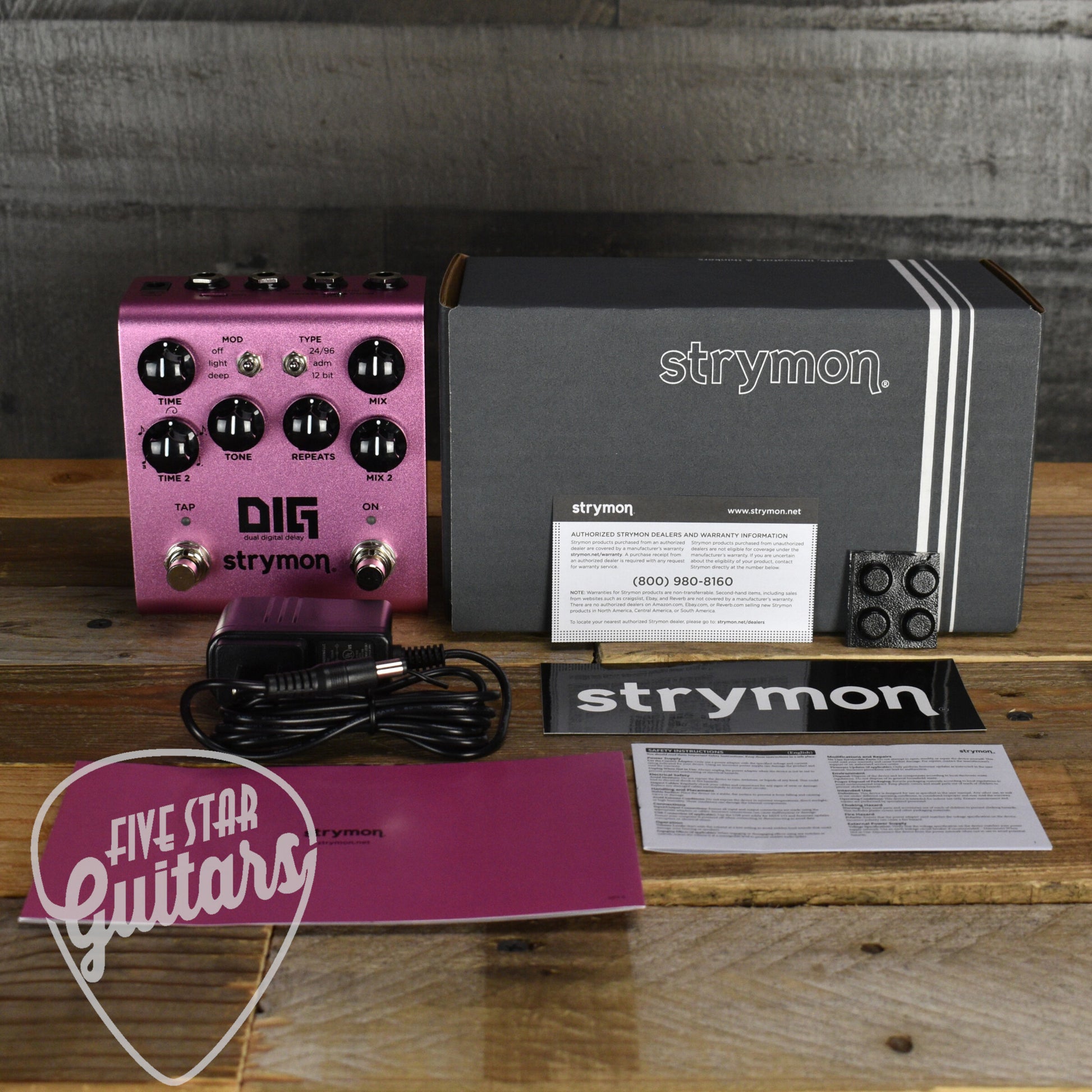

Strymon DIG V2 Dual Digital Delay

The Strymon DIG V2 Dual Digital Delay: Dual Engine Precision with Modern Control

Stereo dual delay pedal with flexible voicing

The Strymon DIG V2 is a dual digital delay pedal that delivers lush, synchronized echo textures using two integrated delay lines. Designed to serve as both a studio-grade delay and a pedalboard powerhouse, DIG V2 offers stereo input and output, a refined 24-bit/96kHz audio path, and three distinct delay voicings: pristine 24/96, percussive ADM, and warm 12-bit. With independent mix controls and rhythmic subdivision options, it provides a huge range of spacious, modulated, and vintage-tinged sounds, all in a compact form factor.

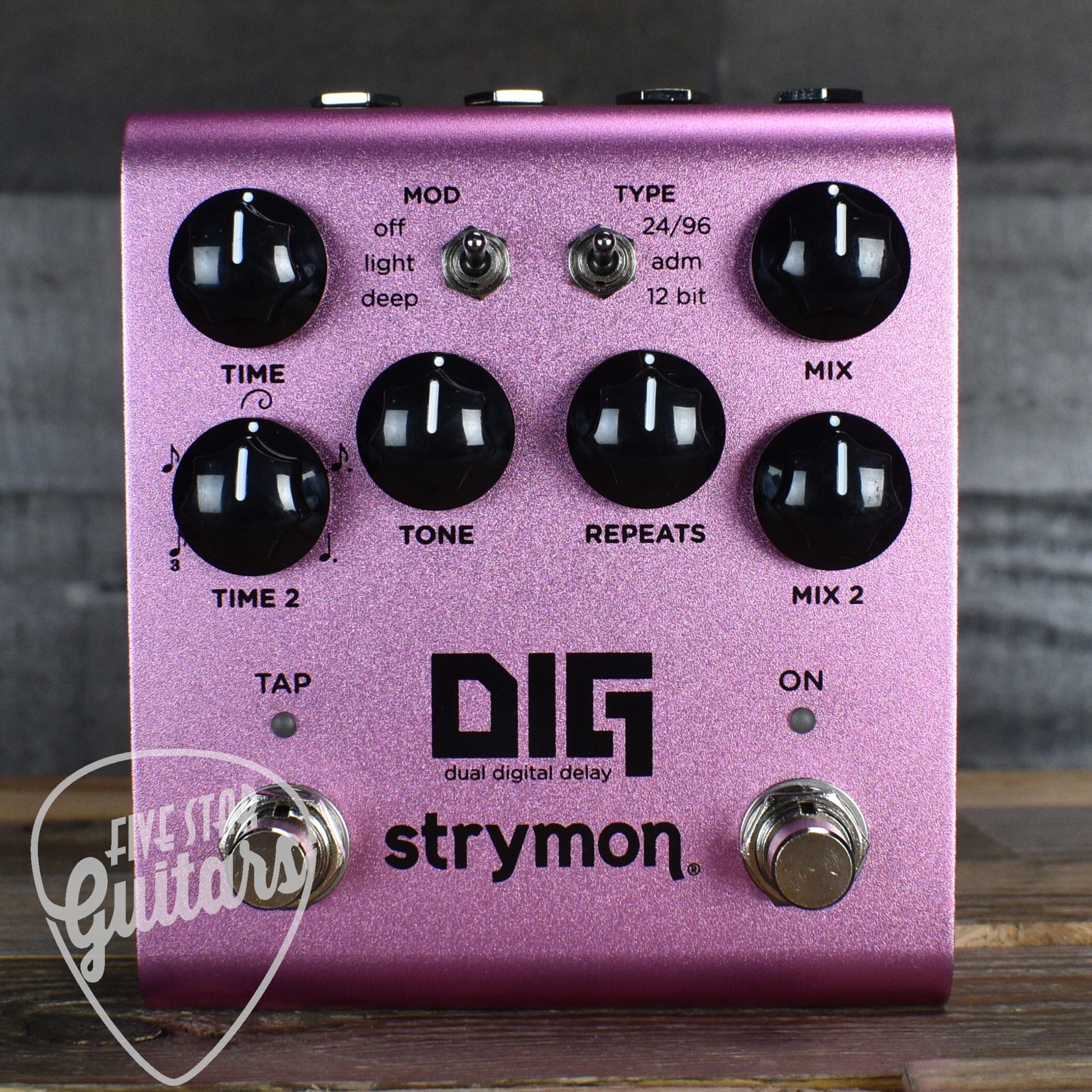

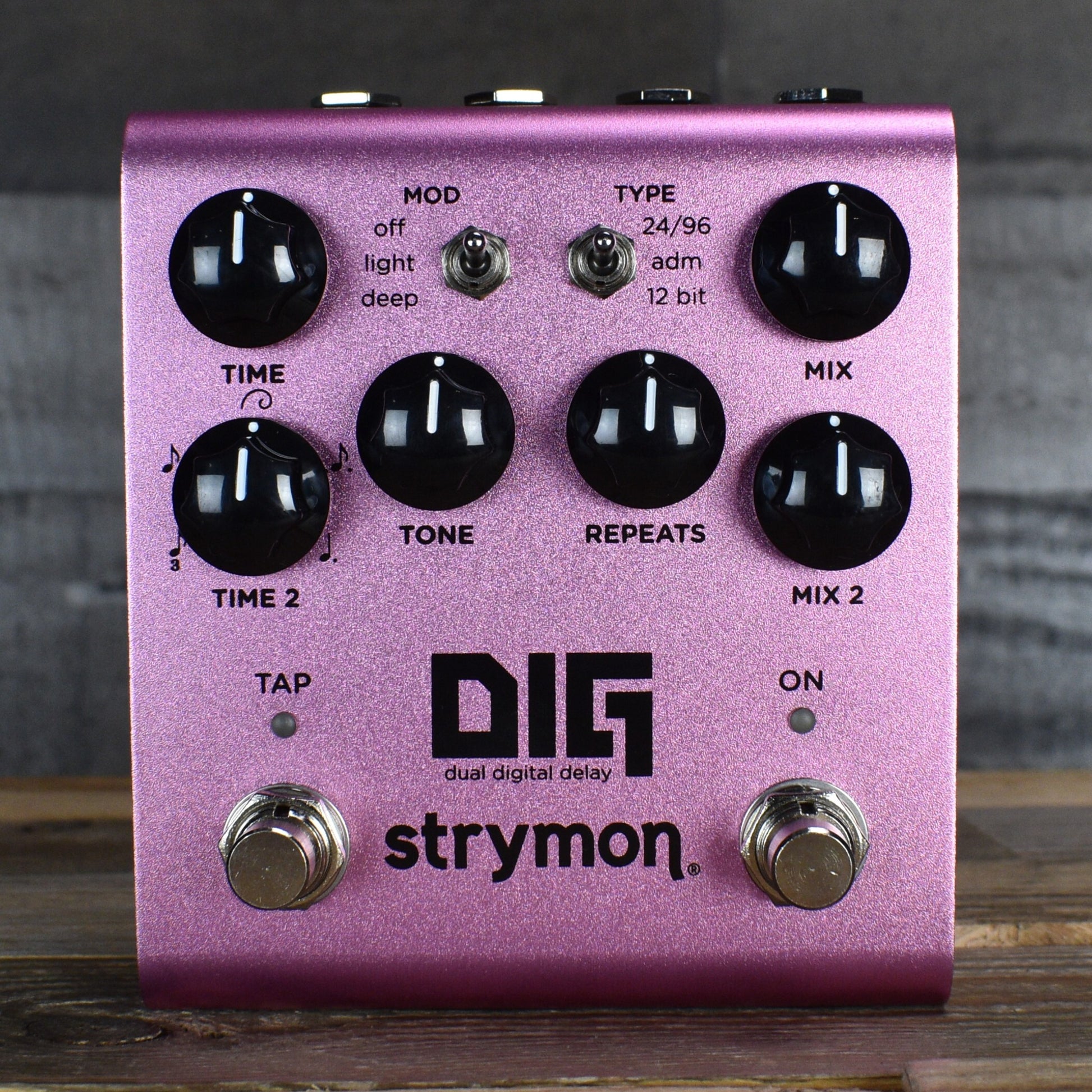

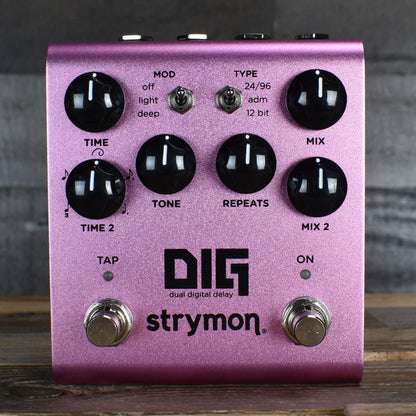

Three vintage-inspired digital delay types

DIG V2 gives you access to three distinct delay algorithms, each modeling a different era of digital delay. The 24/96 setting offers a clean and modern tone with crystal clarity, the ADM setting captures the wide-band grit and compression of early '80s digital delays, and the 12-bit mode brings the softer, darker edge of mid-'80s processors. Whether you’re aiming for glassy trails or lo-fi ambience, DIG lets you dial in the right character with a flick of a switch.

Independent modulation and subdivision control

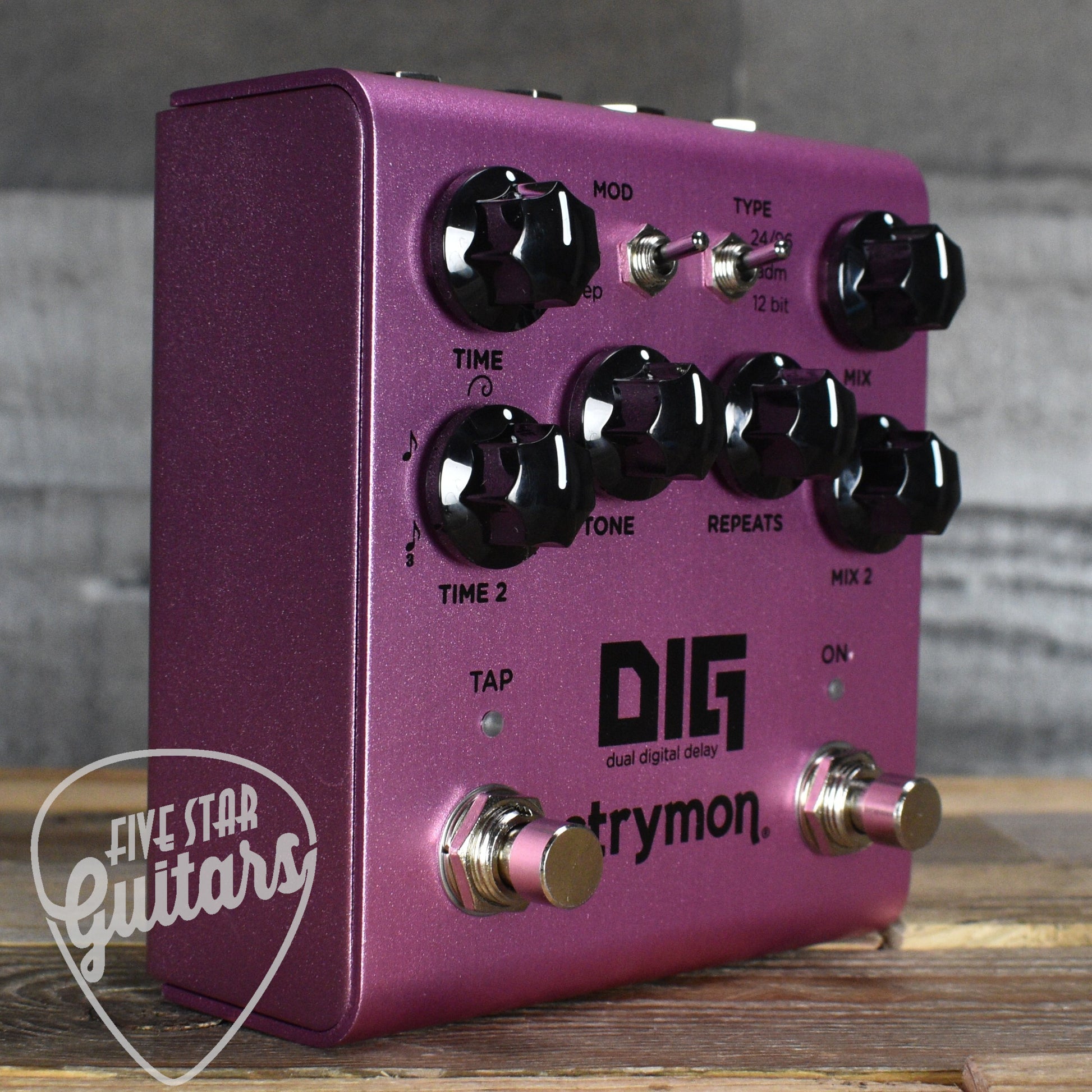

From subtle chorusing to lush, evolving modulation, DIG V2's Mod control offers Off, Light, and Deep modes for expressive texture on both delays. Delay 2 is rhythmically tied to Delay 1 by default, but you can decouple them using Free mode for individual control. You also get access to tap tempo, circular repeats, five rhythmic subdivisions including golden ratio and dotted eighth, and Live Edit functions to tailor dry mix, sync modes, and delay routing.

MIDI and expression pedal ready

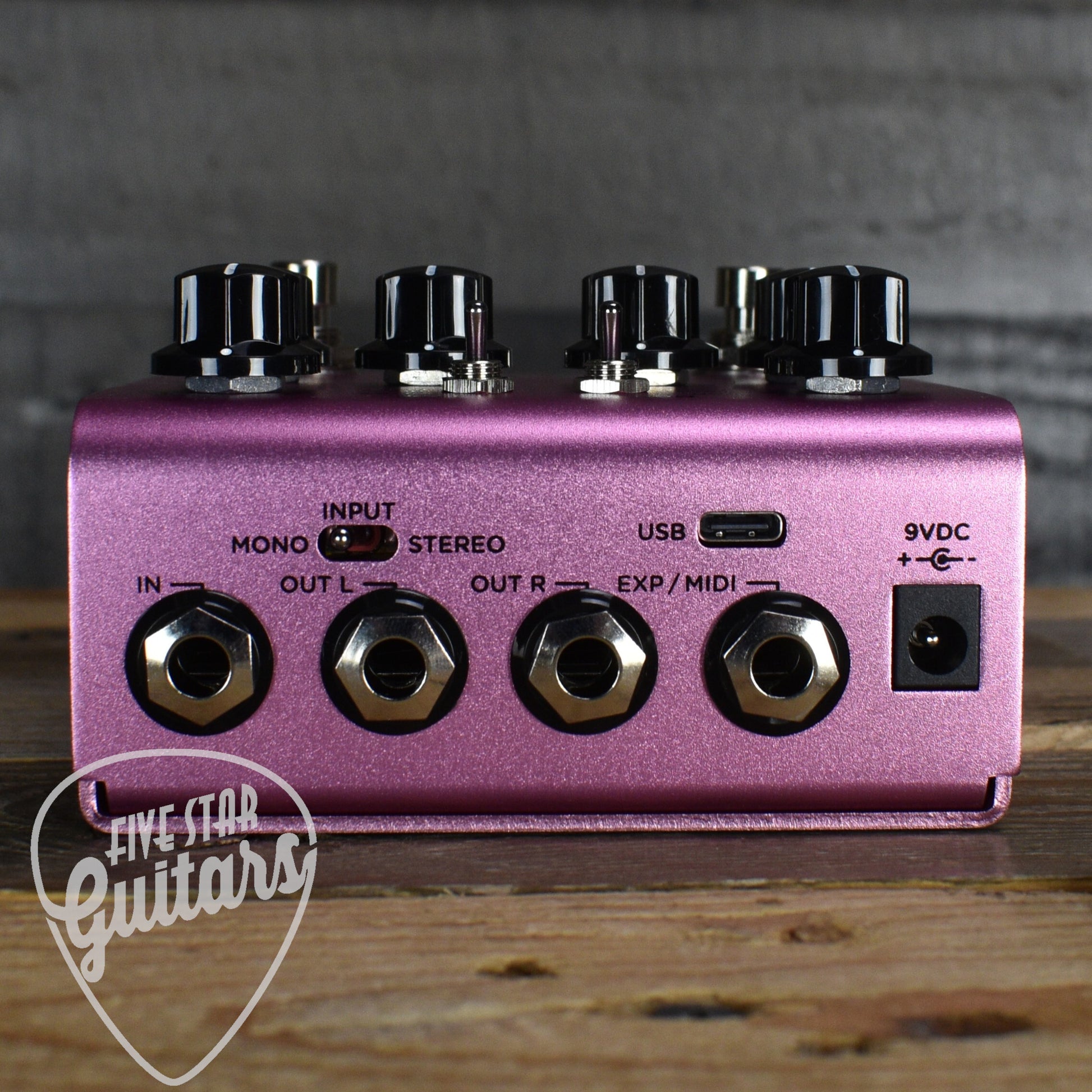

DIG V2 is also a deeply programmable unit with full MIDI integration over TRS or USB-C. Store and recall up to 300 presets, sync to MIDI clock, control any parameter via MIDI CC, or plug in a TRS expression pedal for hands-free control over multiple parameters. It’s equally at home in a modern digital rig or a traditional stompbox setup.

Compact form with premium construction

Despite its studio-level features, DIG V2 is built for the rigors of the road. It’s housed in a lightweight anodized aluminum chassis and powered by a standard 9VDC supply. Its high-impedance Class A JFET input ensures that your signal remains pristine whether you're using it front of your amp or in an effects loop.

Specifications:

• Dimensions: 4.5" deep x 4" wide x 1.75" tall

• Input impedance: 1 Meg Ohm

• Output impedance: 100 Ohm

• A/D & D/A conversion: 24-bit, 96kHz

• Max input level: +10 dBu

• Bypass switching: True Bypass (electromechanical relay switching)

• Delay time range: 20ms to 1.6s (Delay 1); up to 3.2s in certain modes

• Power requirements: 9VDC, center negative, 300mA minimum

• MIDI control via TRS and USB-C

• Expression pedal input for real-time control

• Three delay voicings: 24/96, ADM, 12-bit

• Modulation settings: Off, Light, Deep

• Dual delay configuration modes: Series, Ping Pong, Parallel

• 300 preset locations via MIDI

This effect pedal ships fully insured with signature required.
