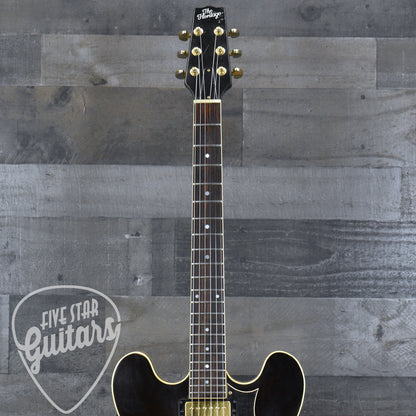

Pre-Owned 2002 The Heritage H535 Old Style Sunburst with Hardshell Case
The Heritage H535: A semi hollow classic with expanded tonal control

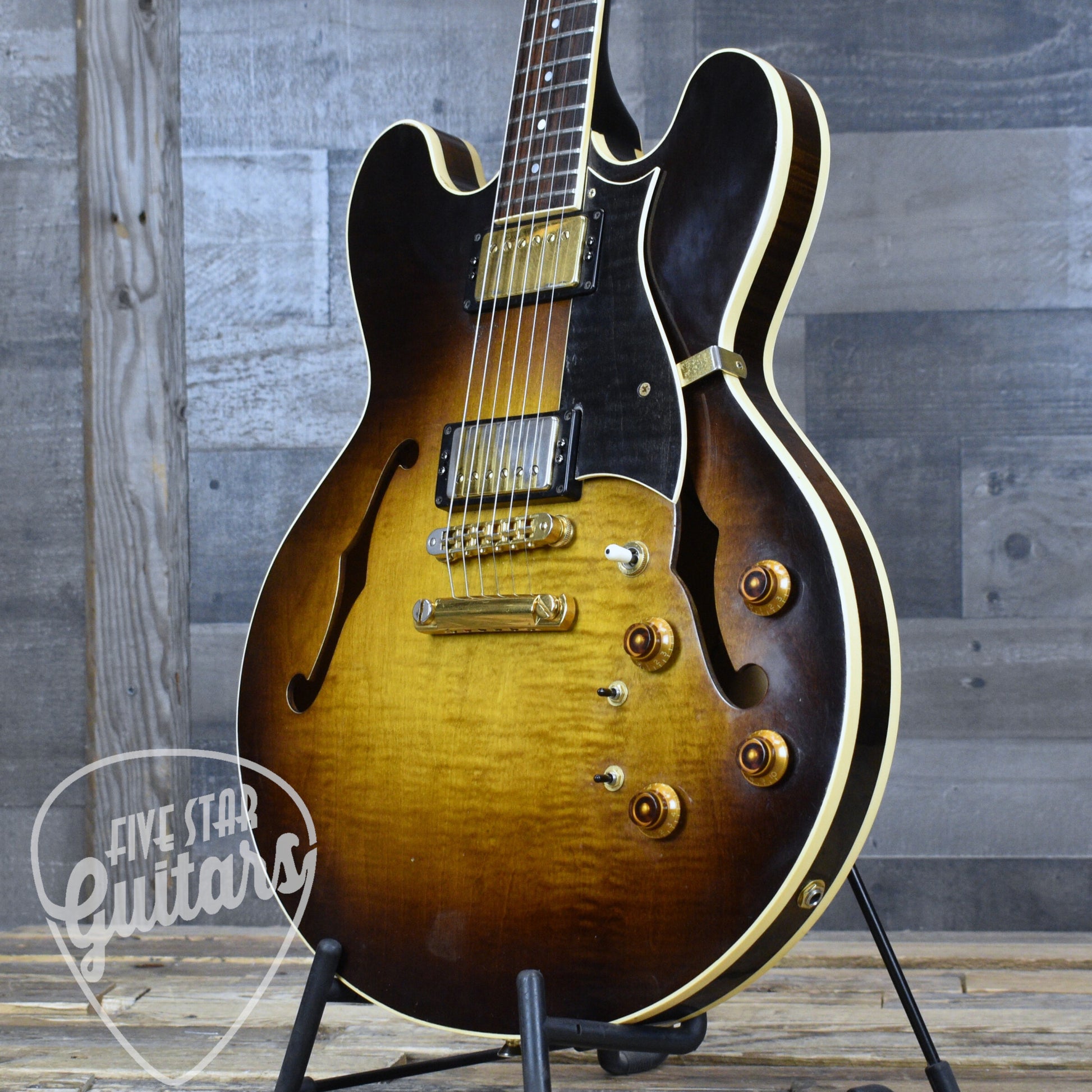

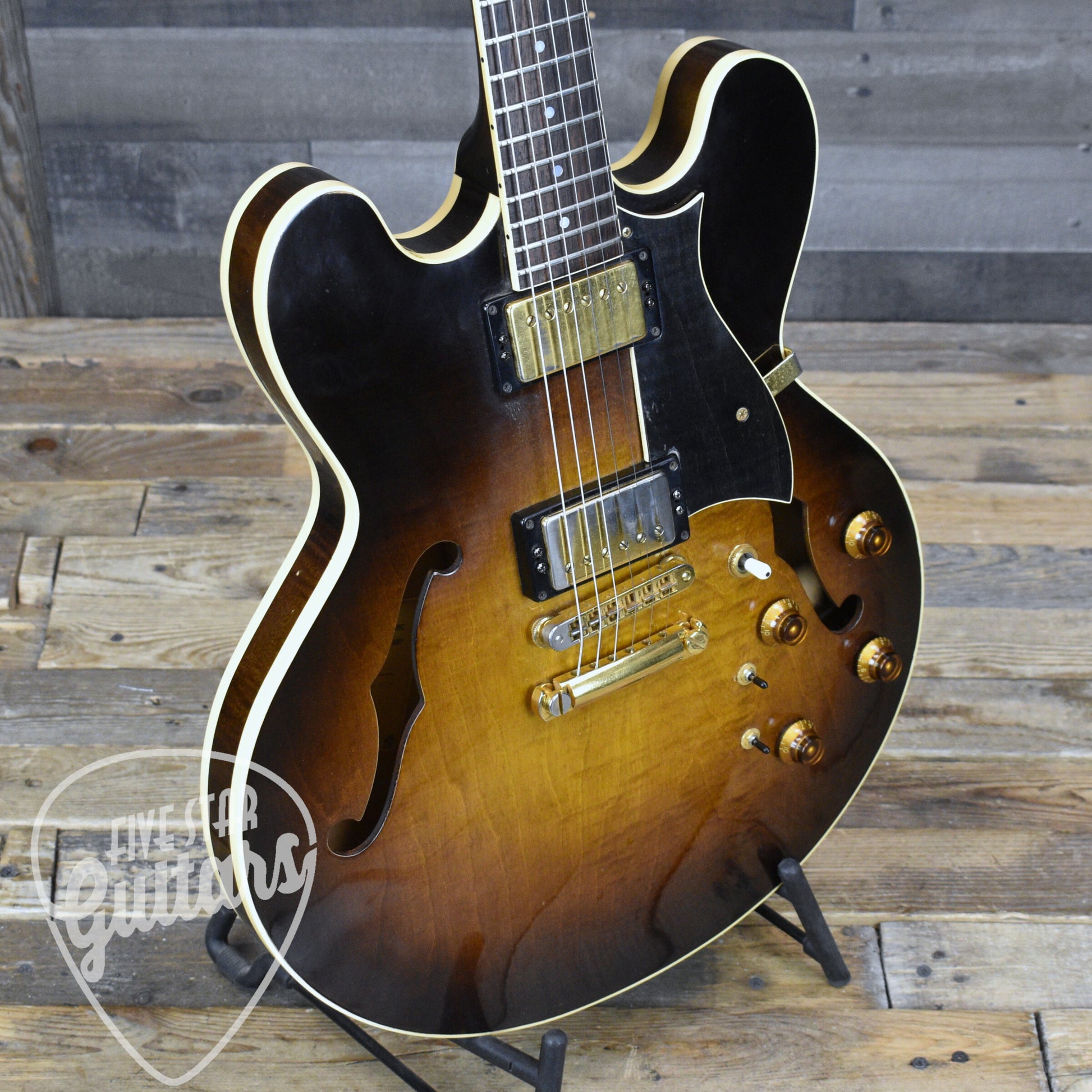

Vintage Semi Hollow Tone and Construction

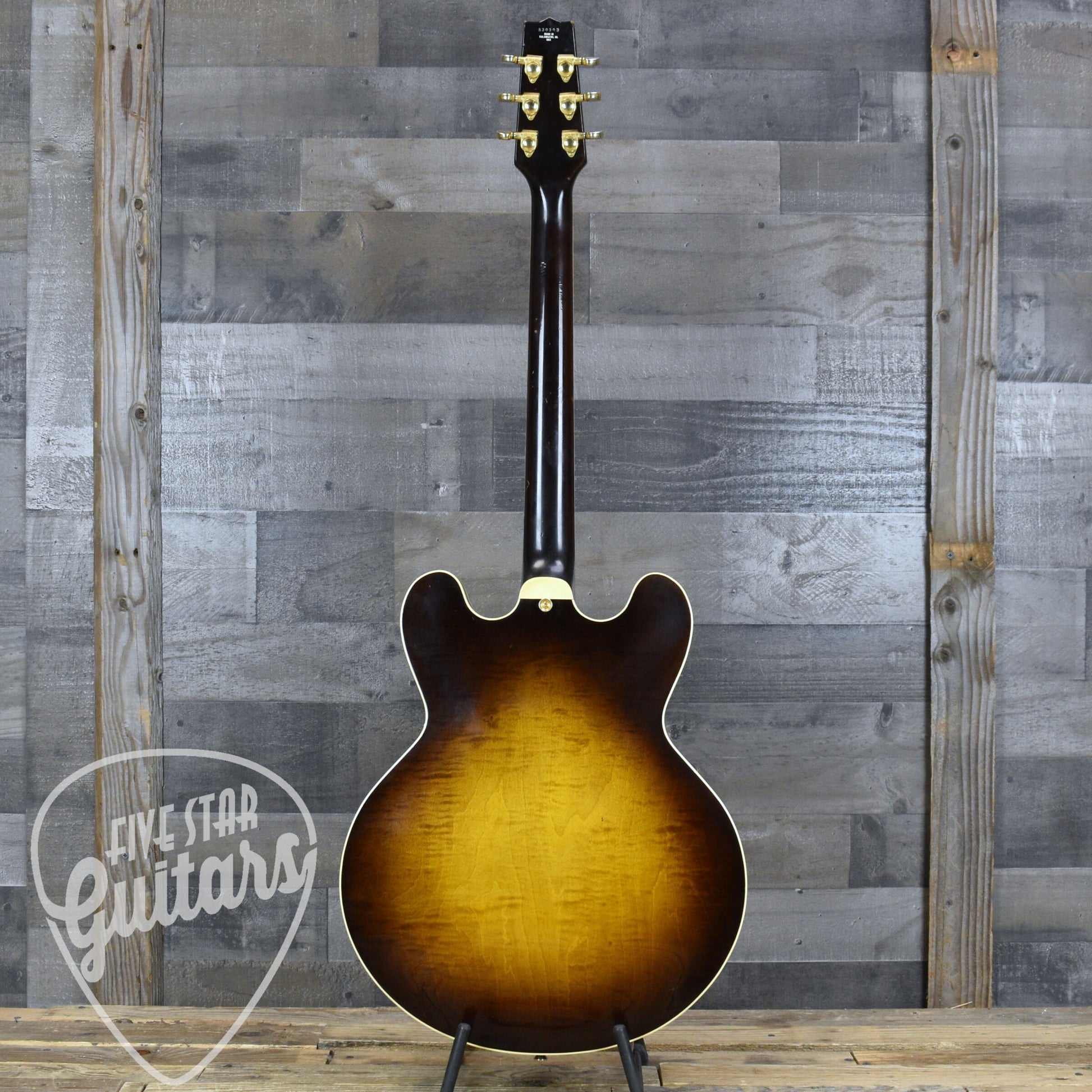

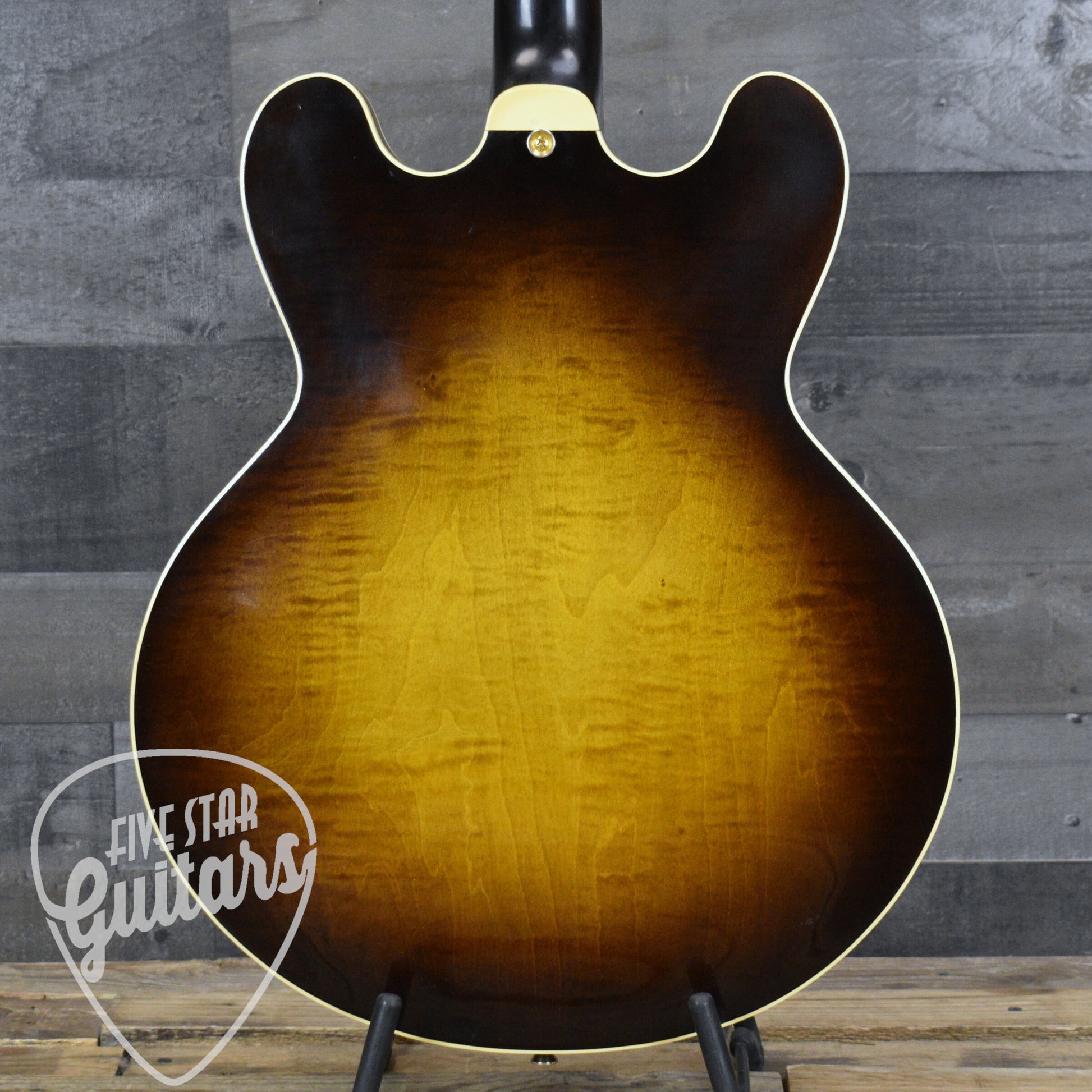

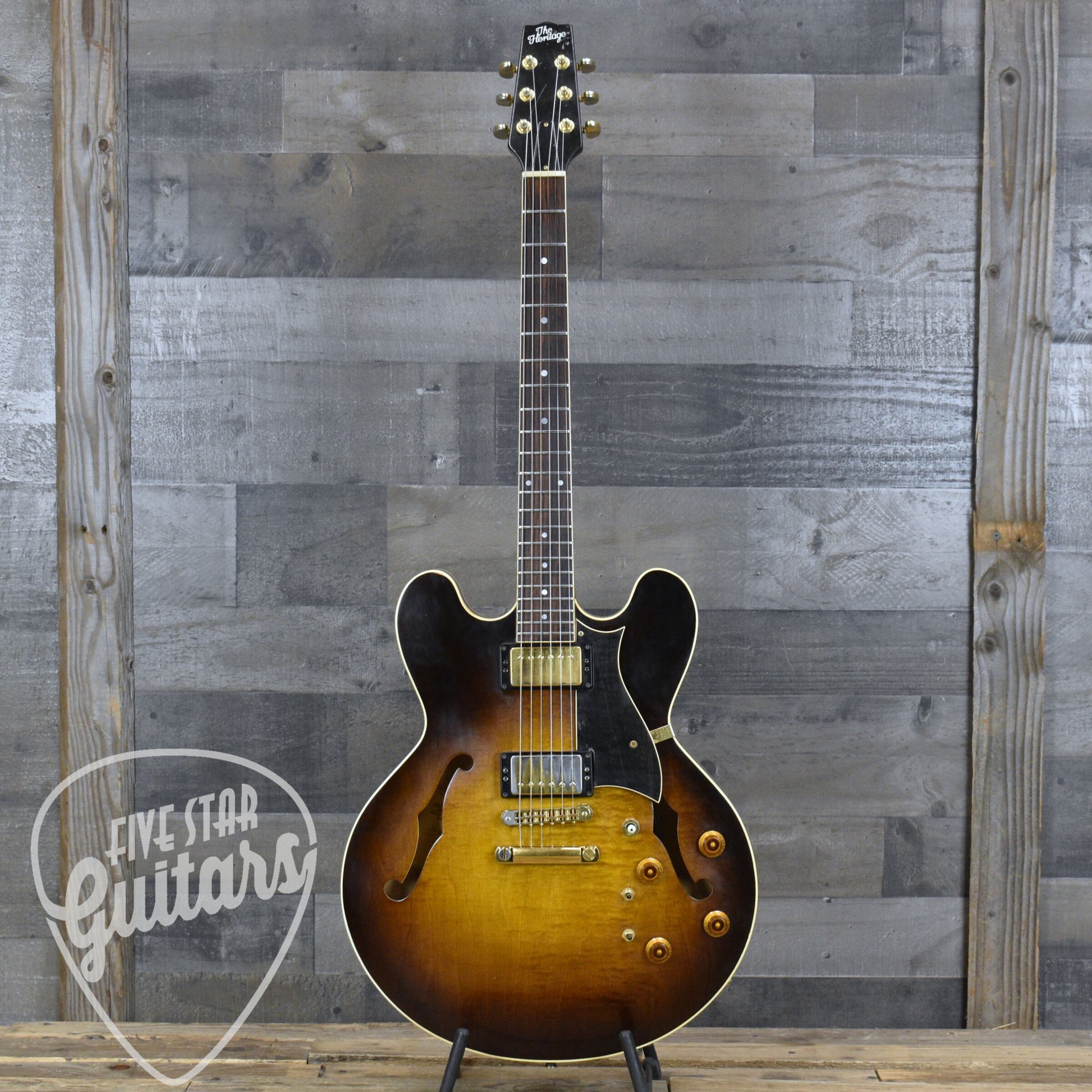

Built in 2002, this H535 delivers the familiar air and resonance of a true semi hollow design with a solid center block anchoring the response. Laminated curly maple top and back pair with a solid maple rim to produce a tone that is nice and lively. Notes bloom with natural sustain while chords retain clarity and depth, making this a versatile platform for any play style.

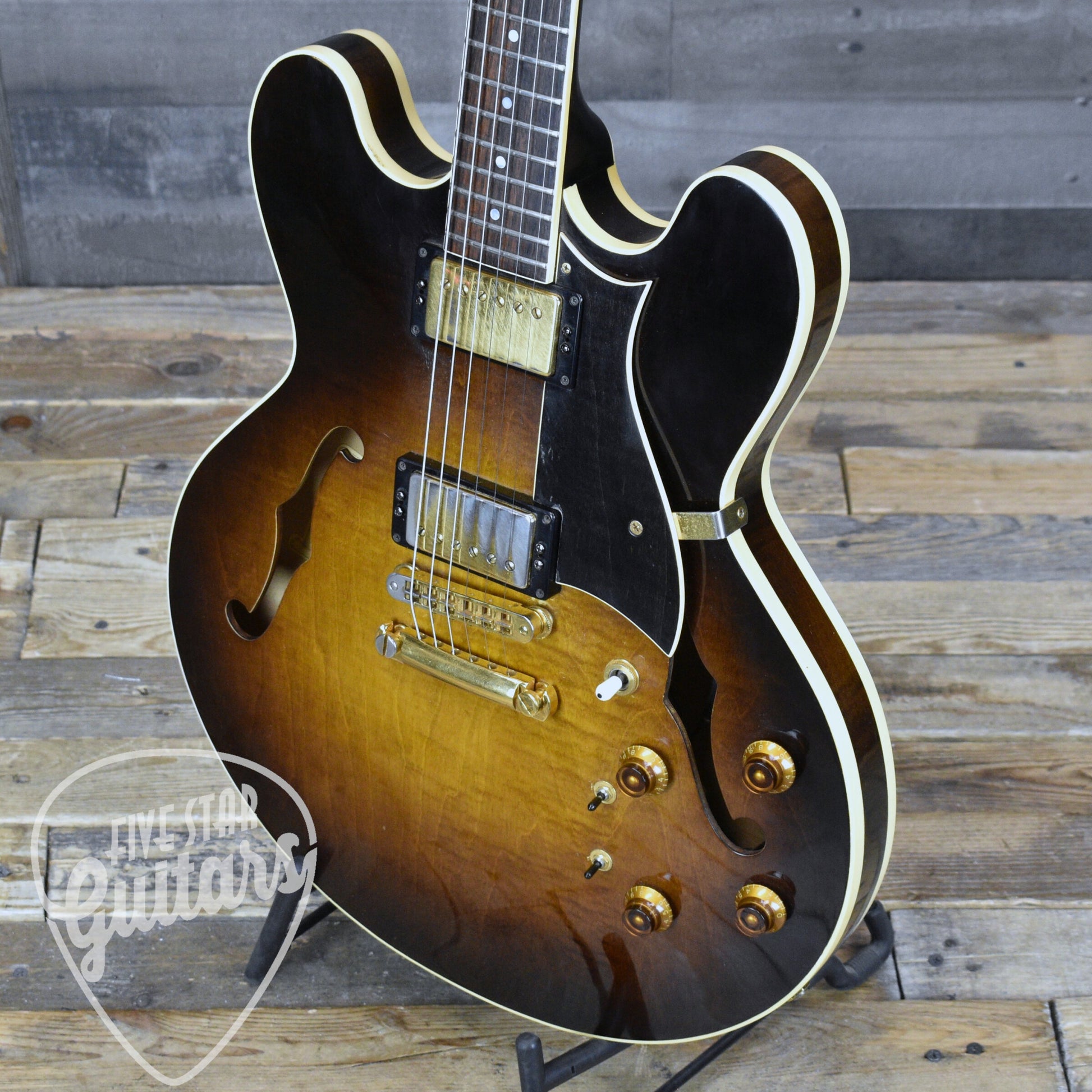

HRW Pickups and VIP Vari Phase Electronics

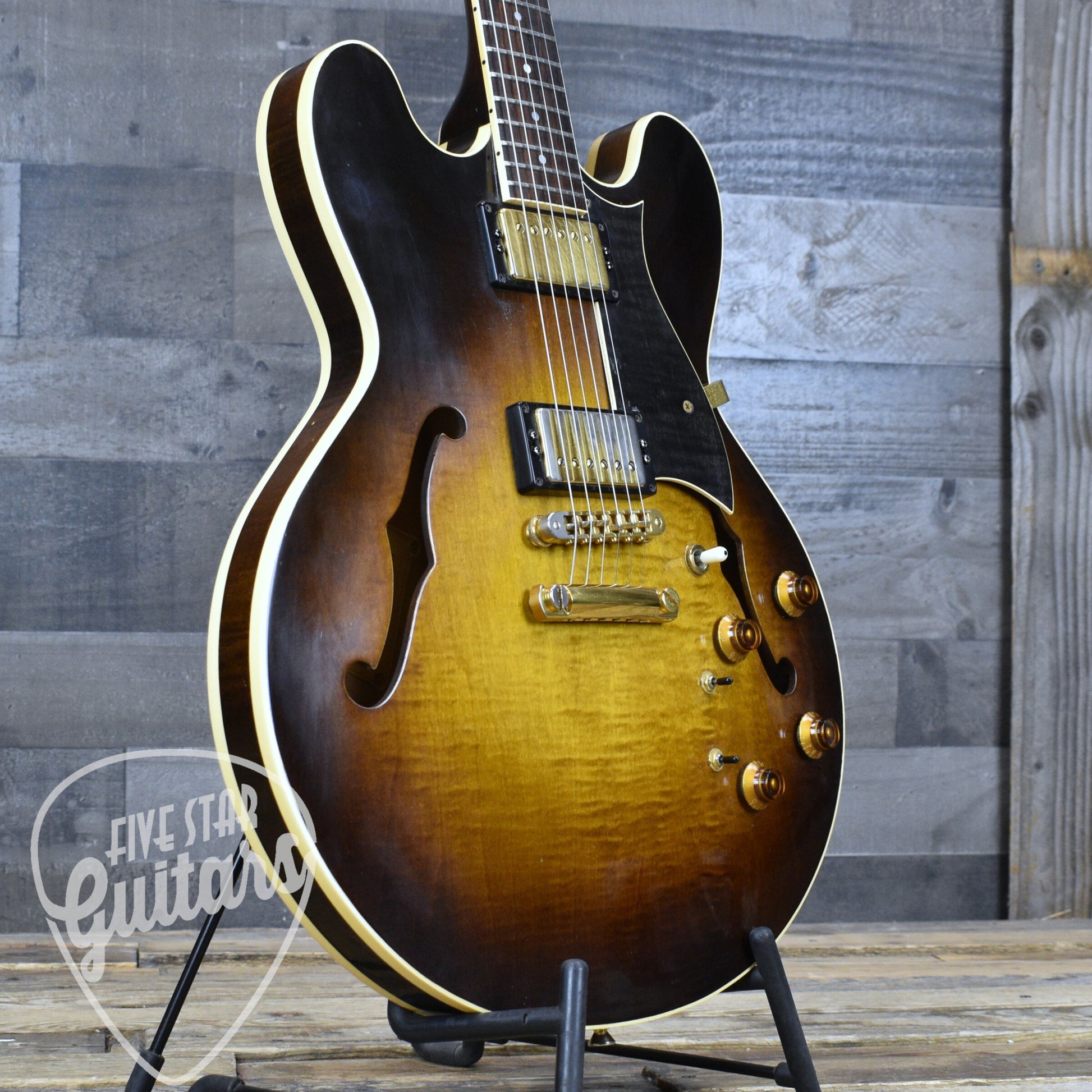

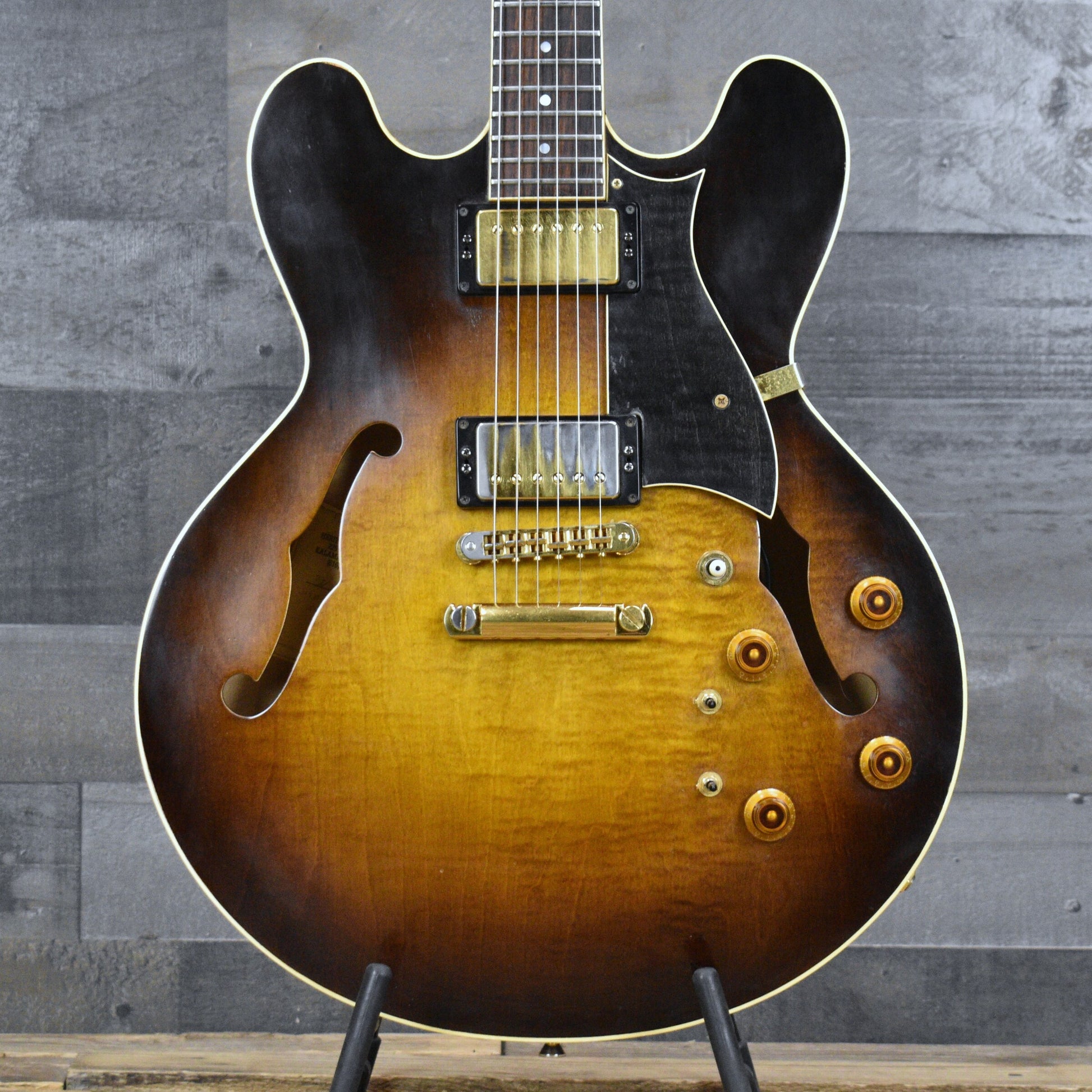

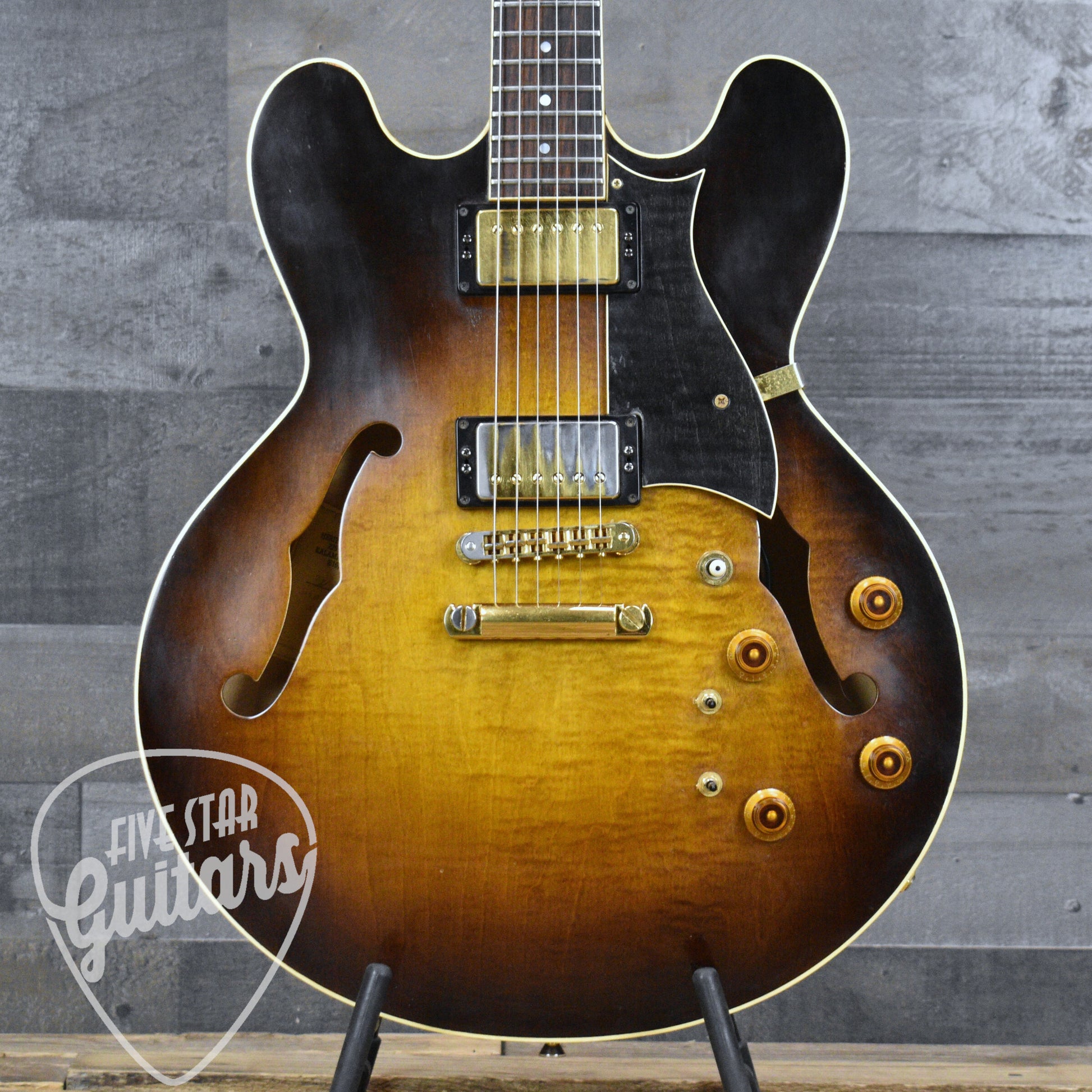

Loaded with HRW Gold pickups, this guitar offers a rich and expressive voice. What sets this example apart is the Heritage VIP Vari Phase system, instead of fixed phase switching, the dual roller controls allow you to sweep between in phase and out of phase tones. This creates a wide range of usable textures from full humbucking warmth to thinner, cutting tones with unique character. The passive design keeps the signal pure with no need for batteries.

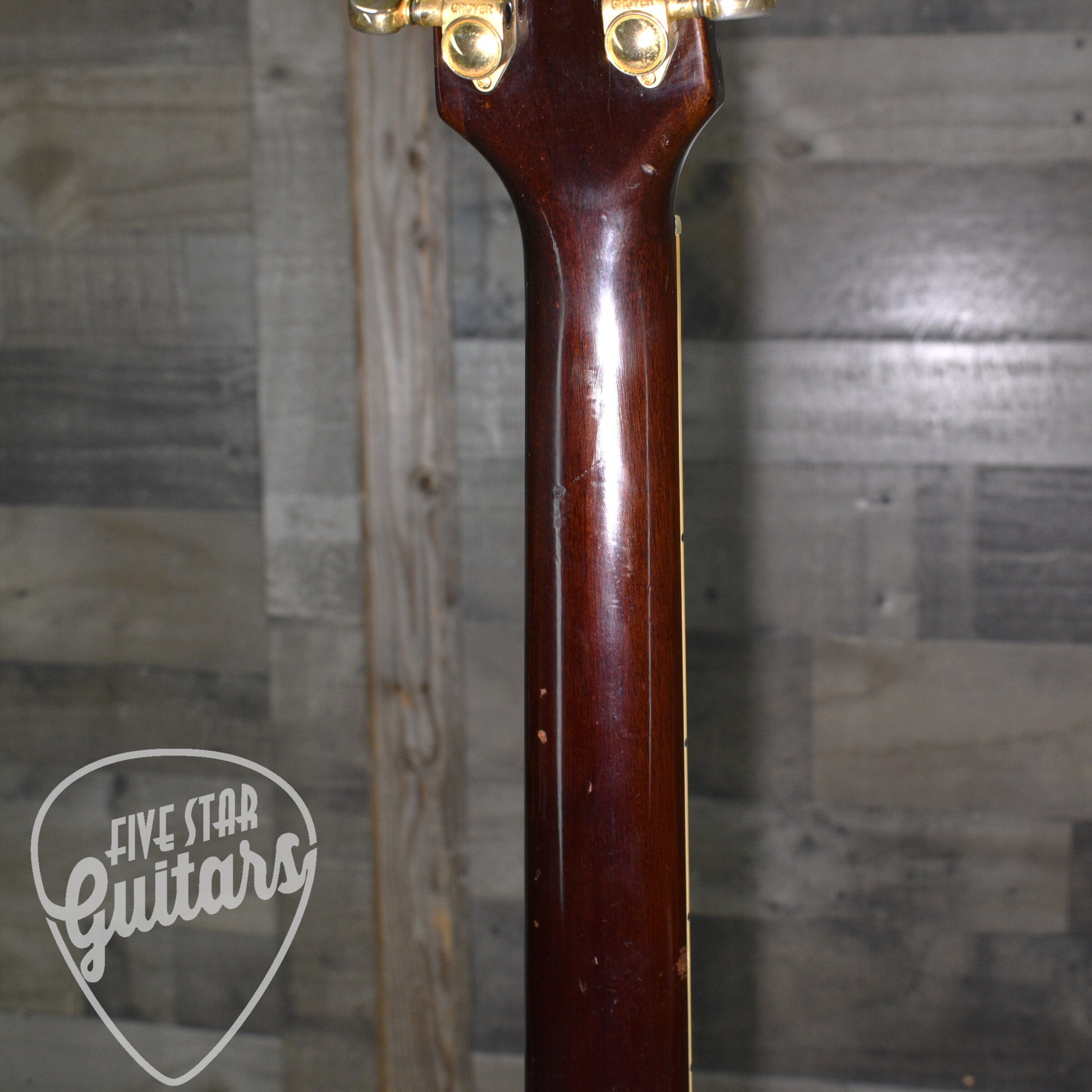

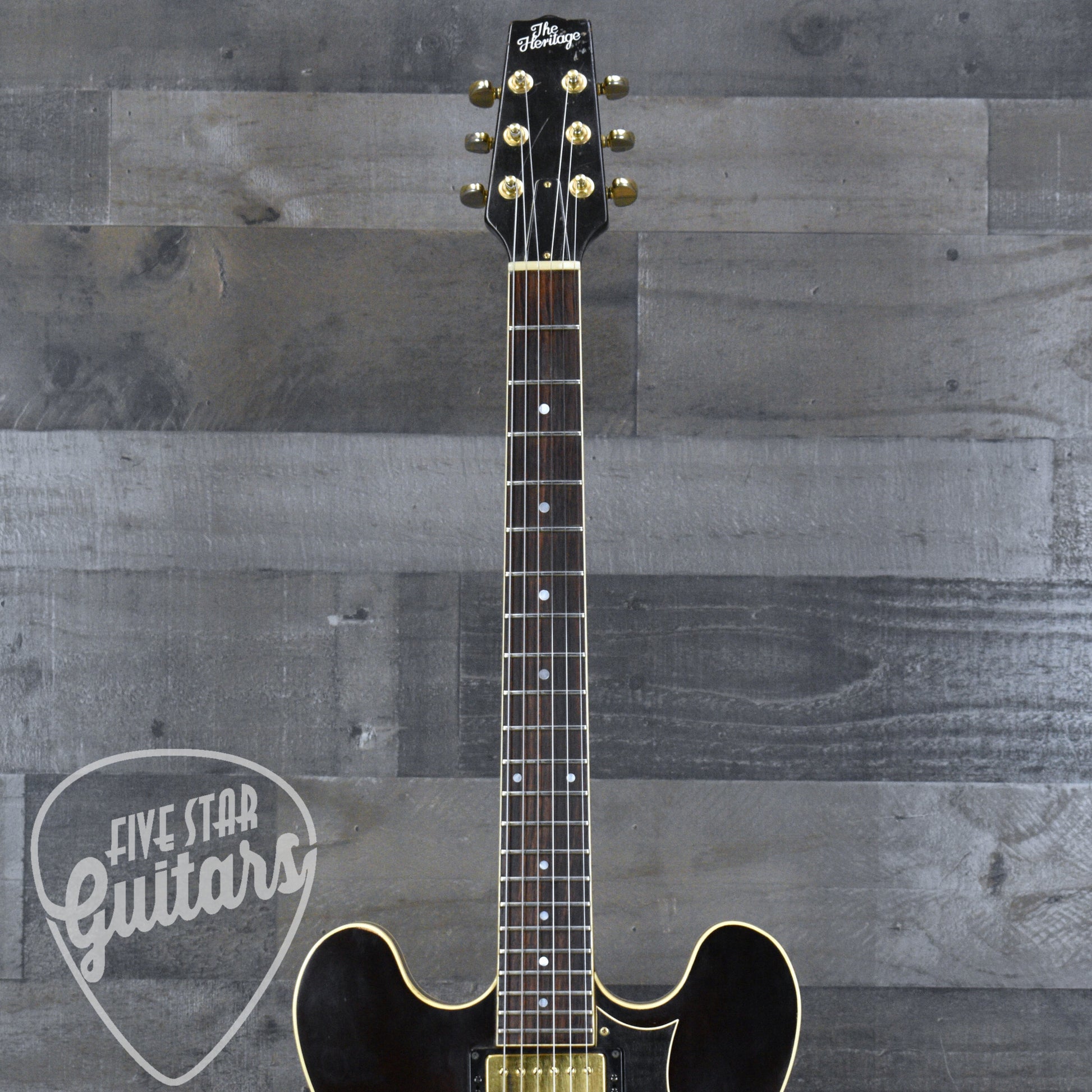

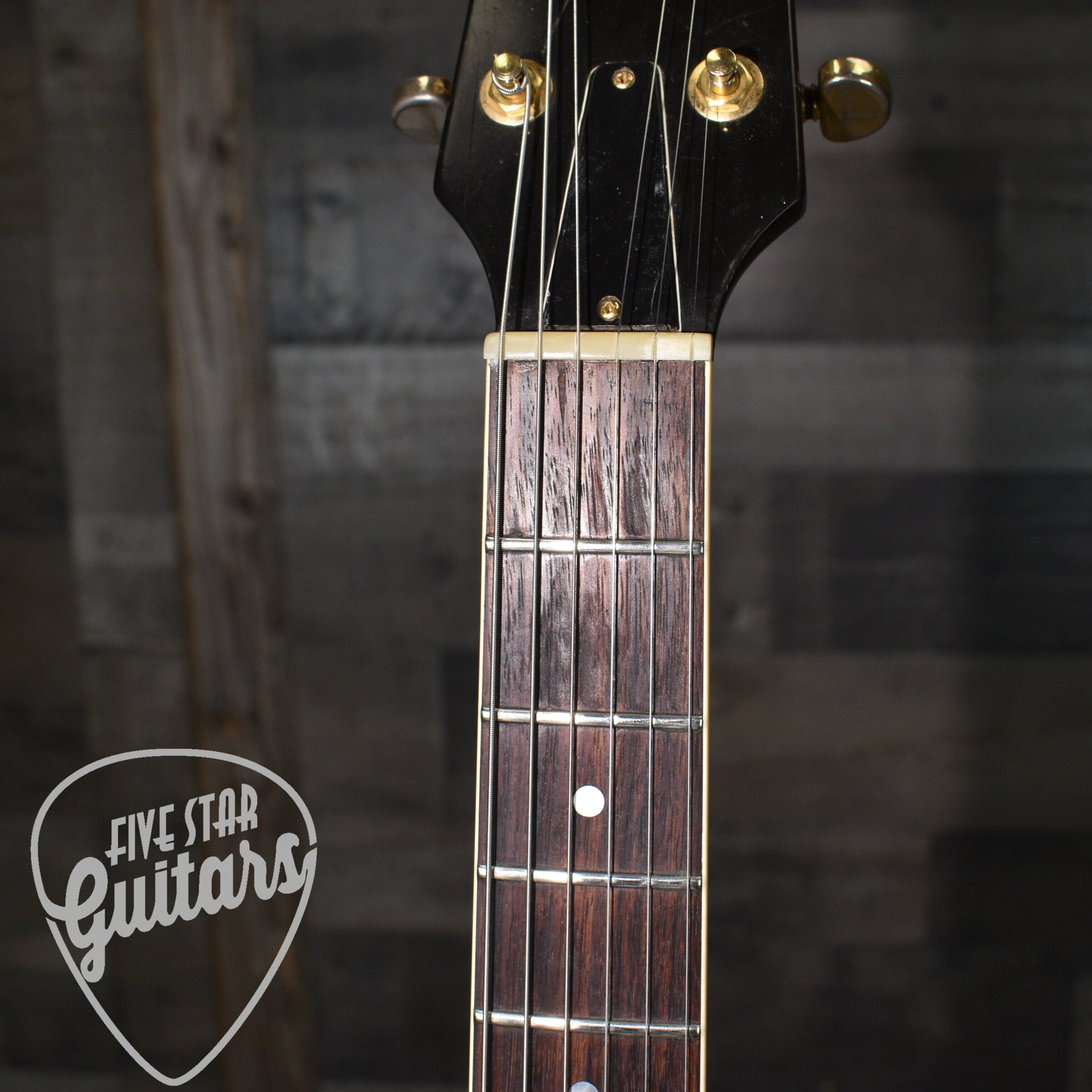

Playability and Neck Feel

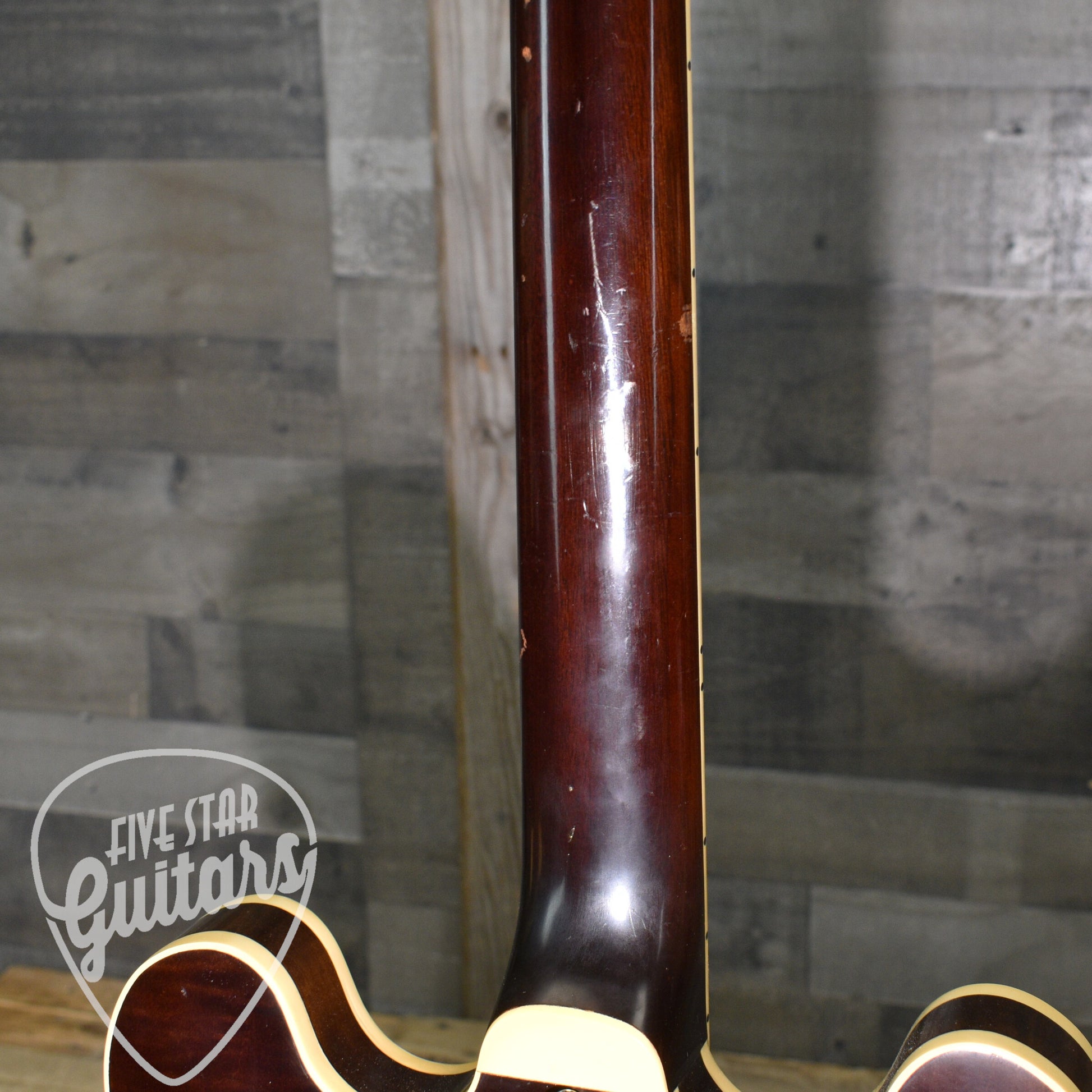

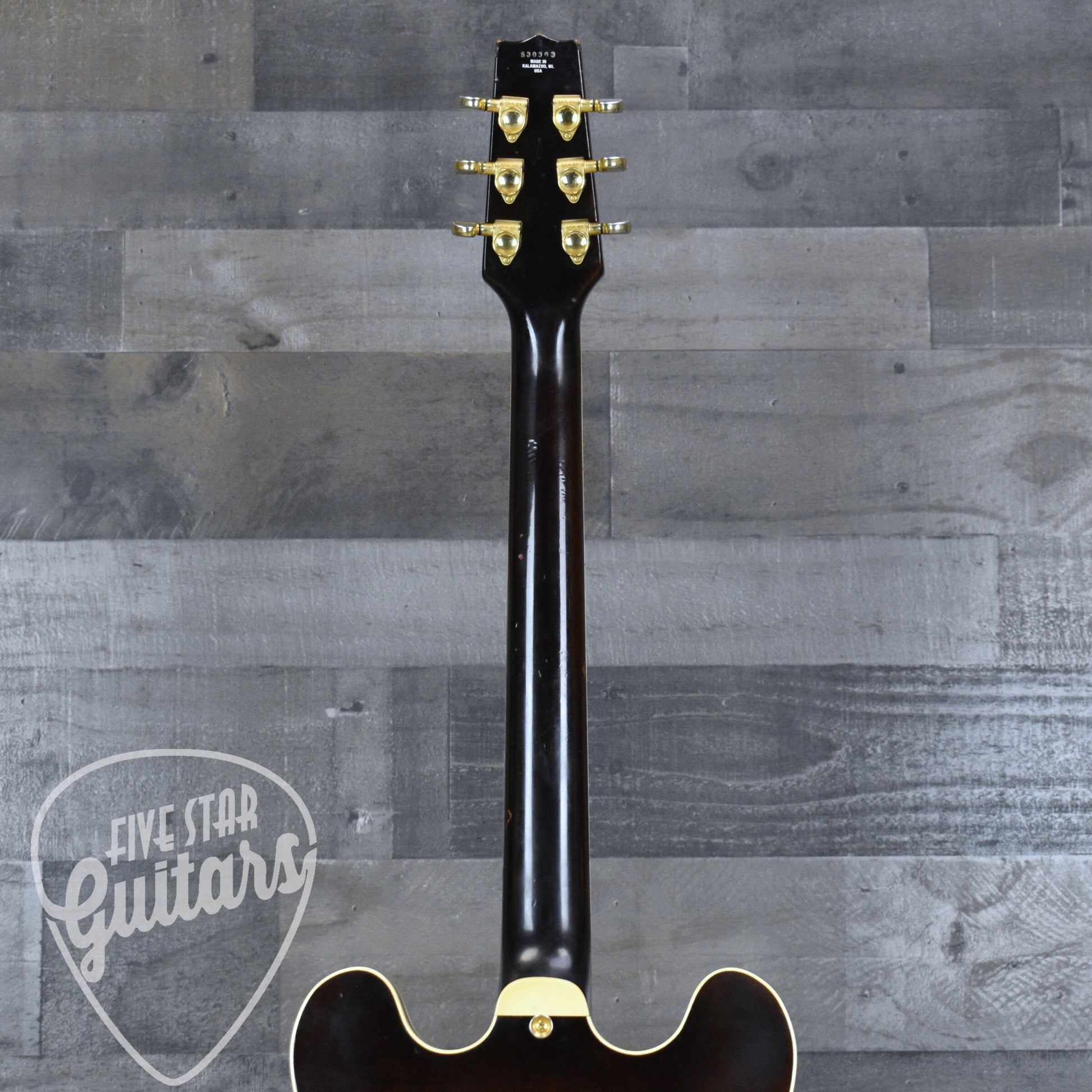

The one piece mahogany neck features a comfortable soft C profile with a 12 inch radius rosewood fingerboard. It feels familiar and broken in, offering smooth movement across all 22 frets. The shorter 24 3/4 inch scale adds a slightly slinkier feel, making bends and vibrato effortless while maintaining strong note definition.

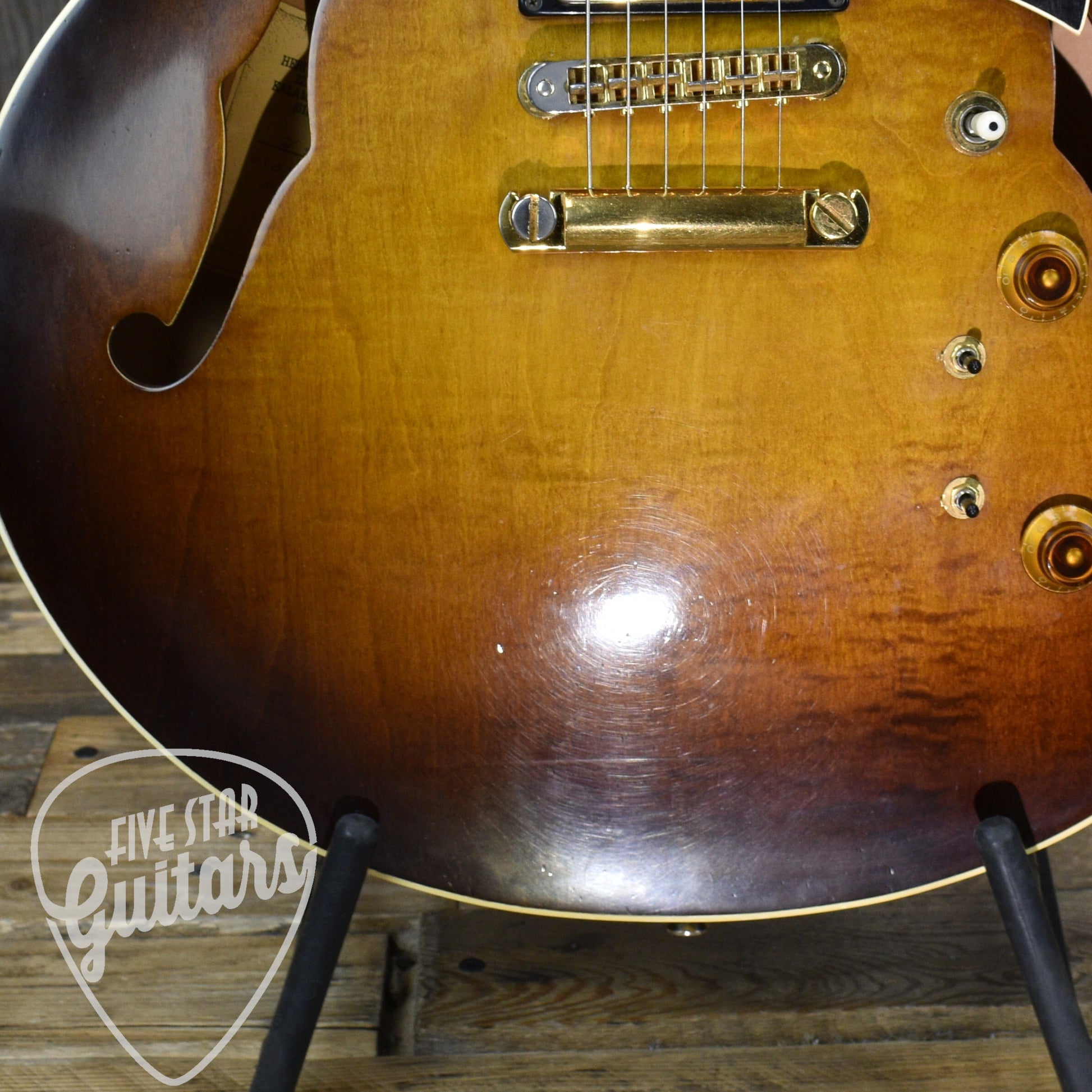

Condition and Real World Use

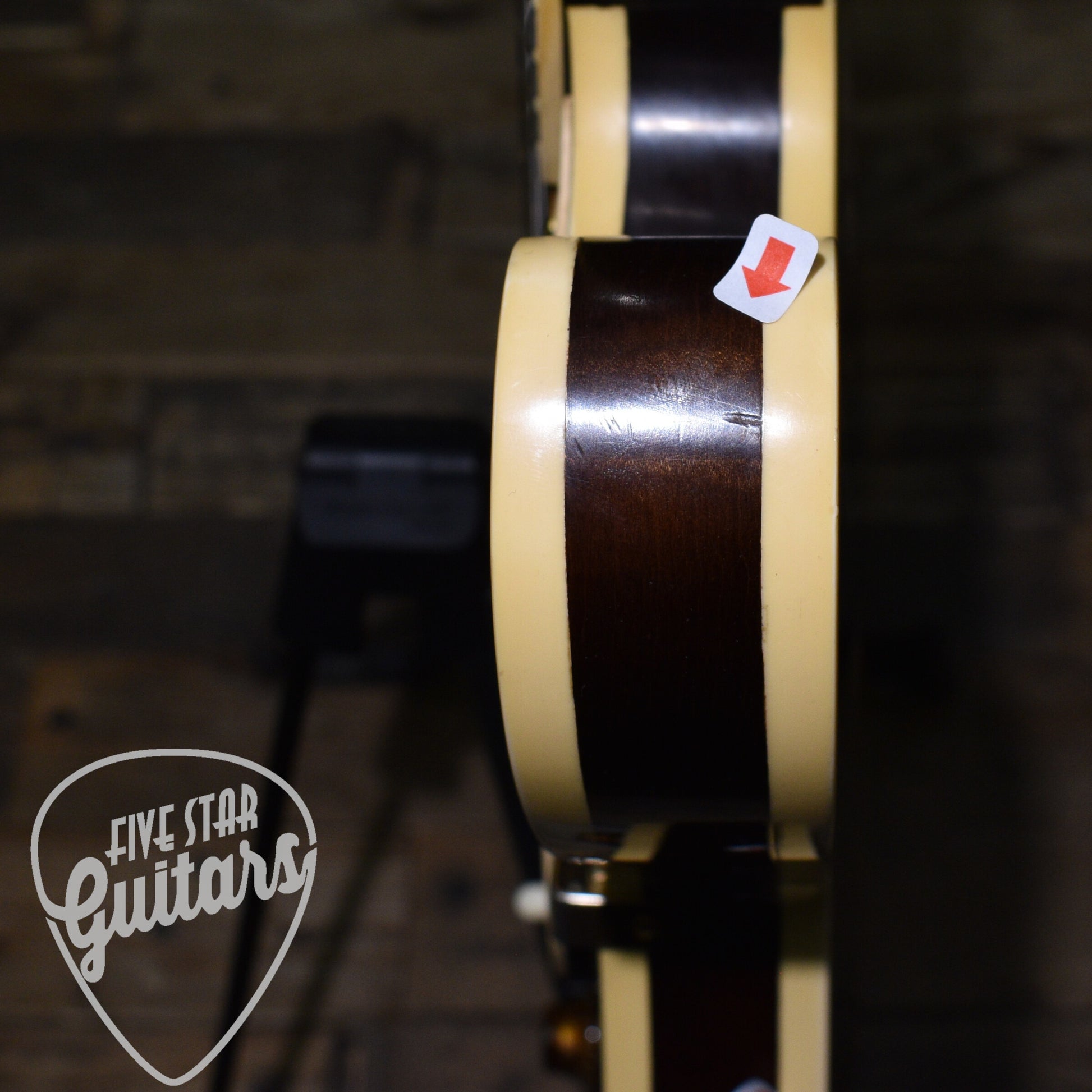

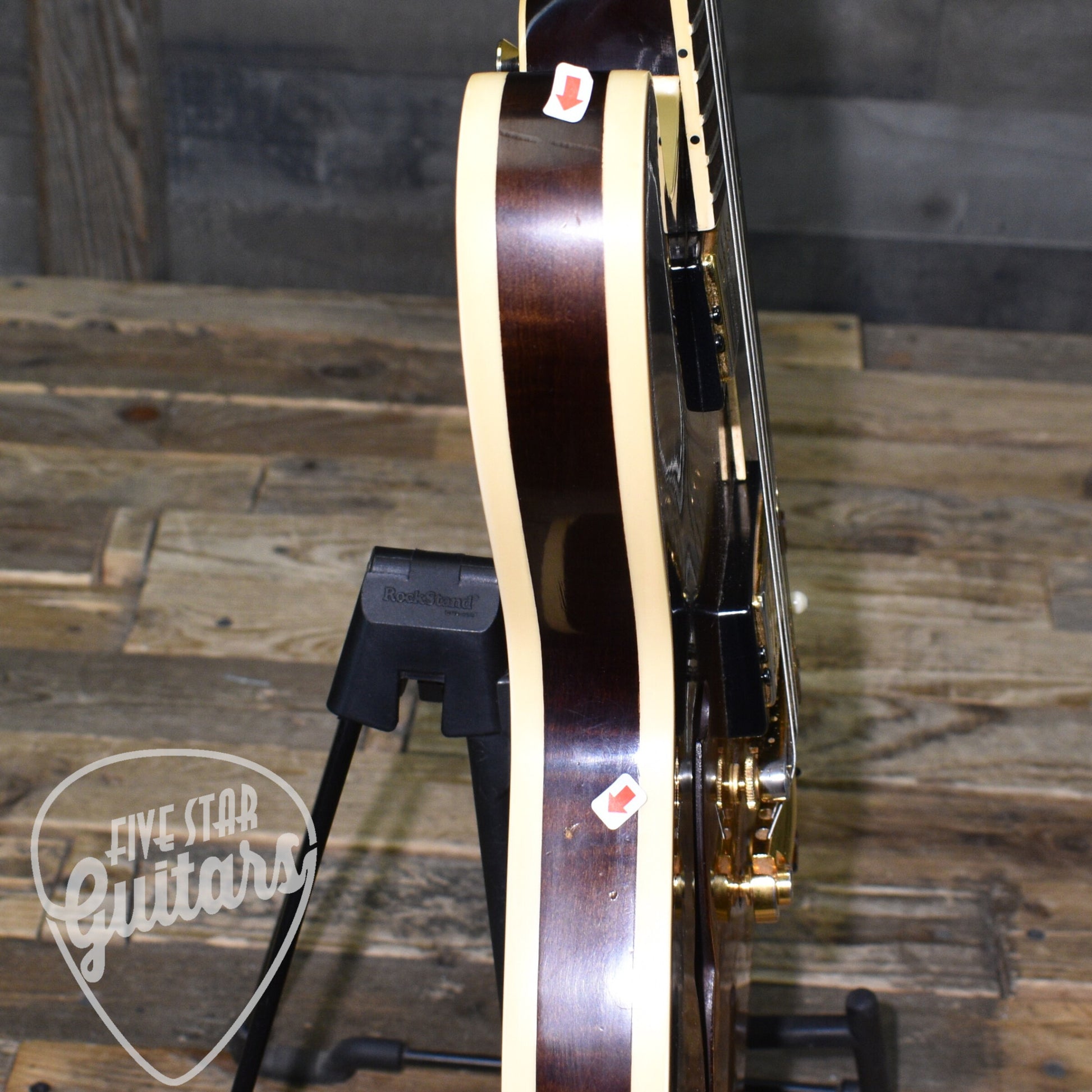

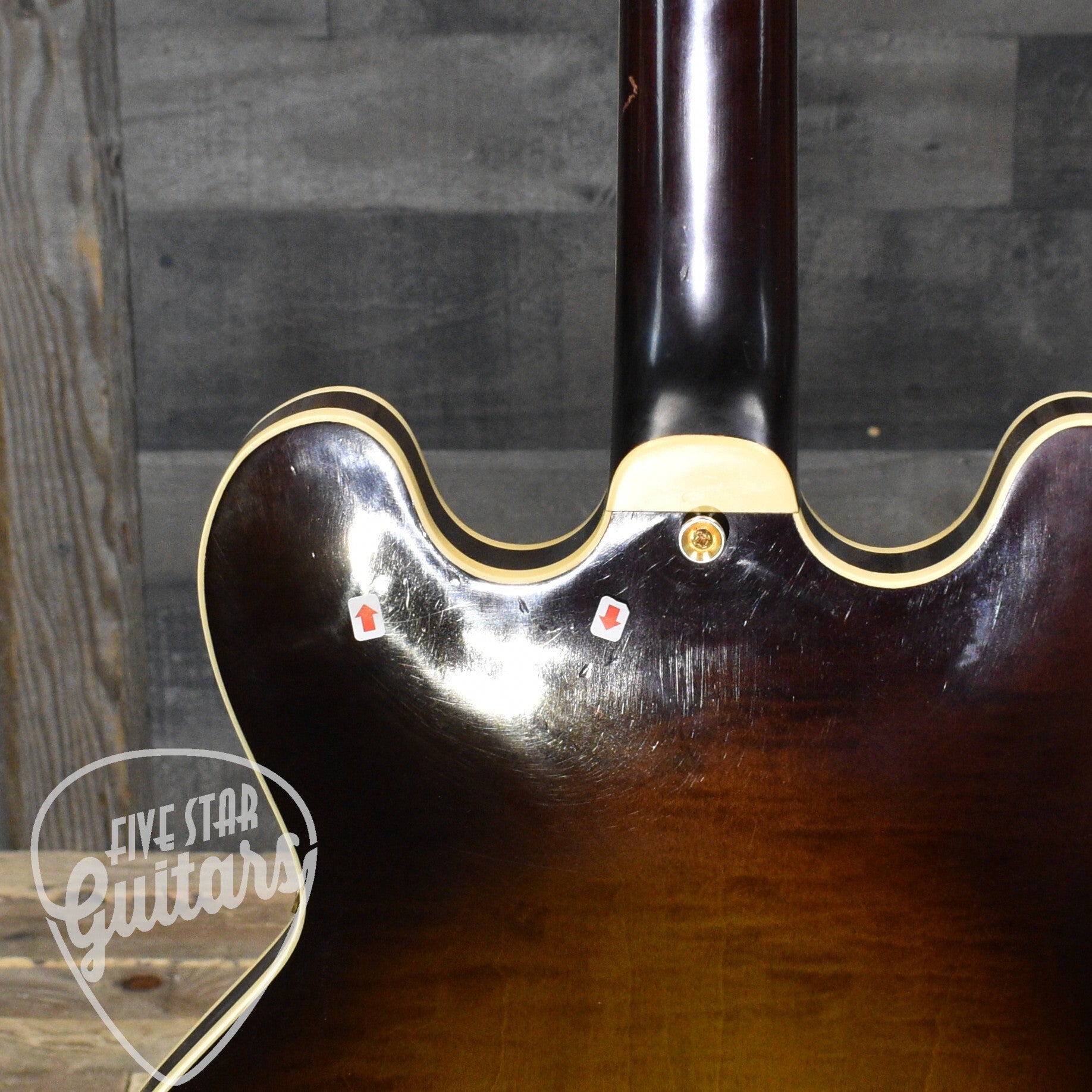

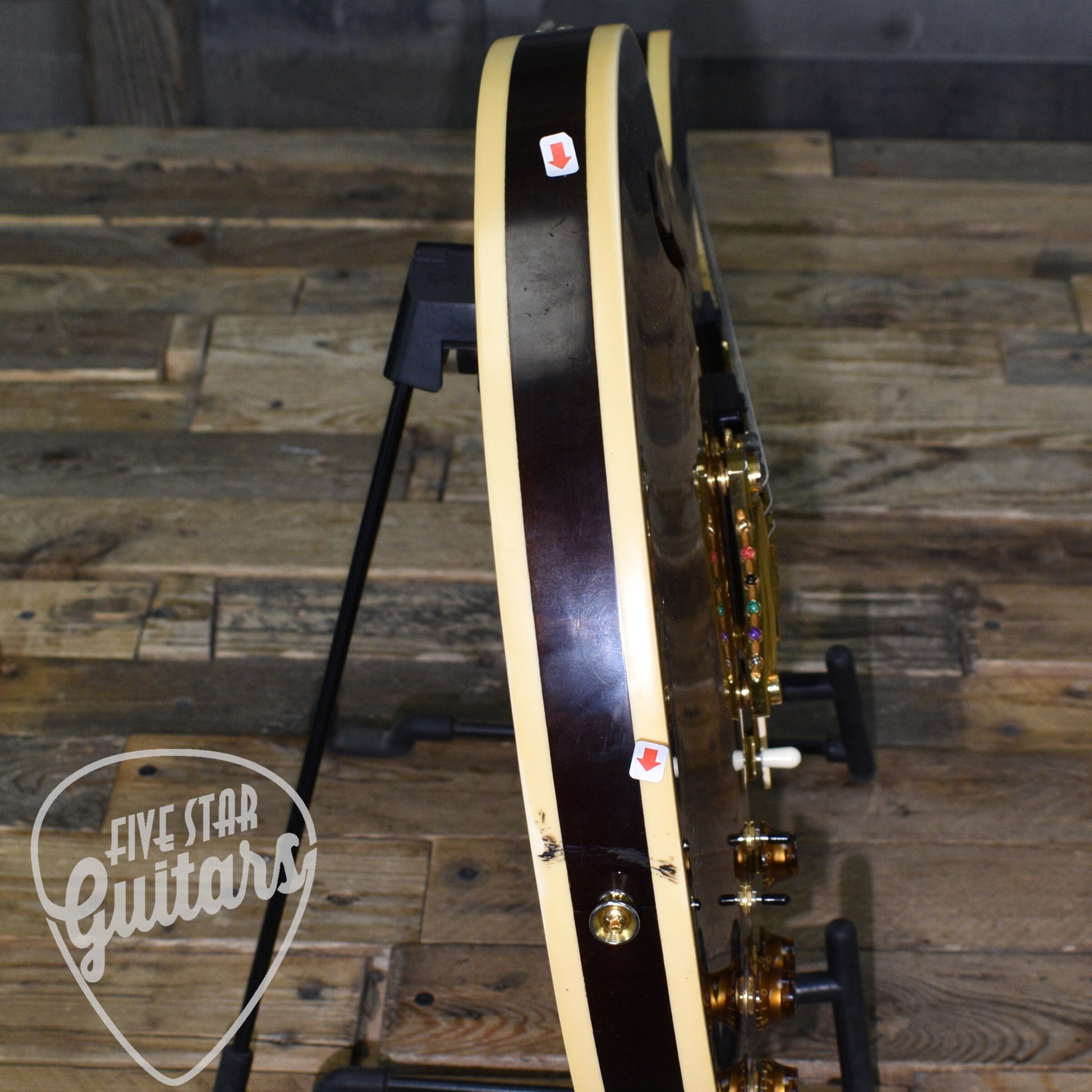

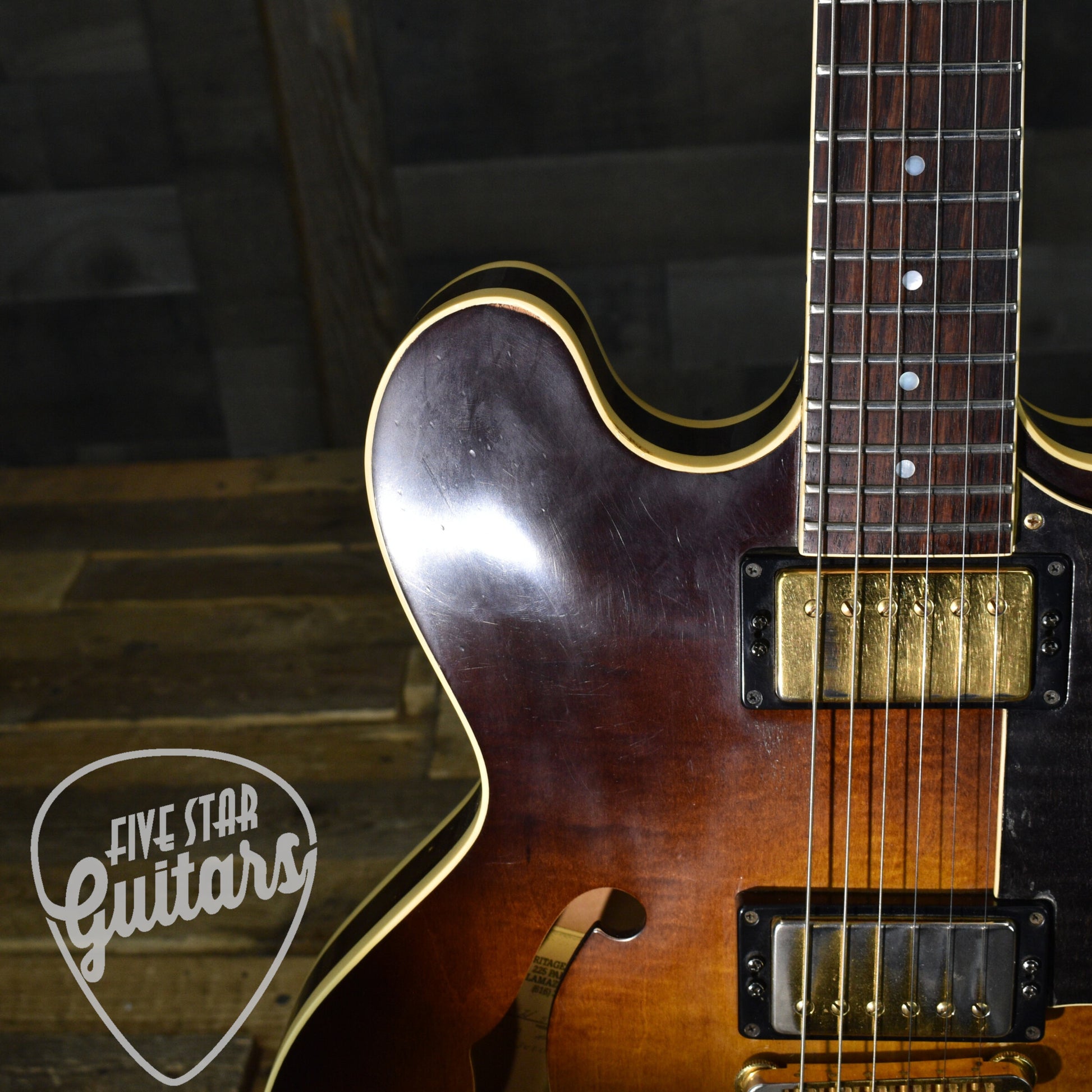

This is a true player grade instrument that has seen time in a working environment. There is moderate wear consistent with use in a gigging band, including numerous dings, dents, and scratches. The bridge and tailpiece have been replaced. All cosmetic wear is documented in the photo set. None of this detracts from the instrument’s structural integrity or performance. It remains a solid, reliable tool with serious capability, and plenty of gigs left to play.
Appointments and Included Case

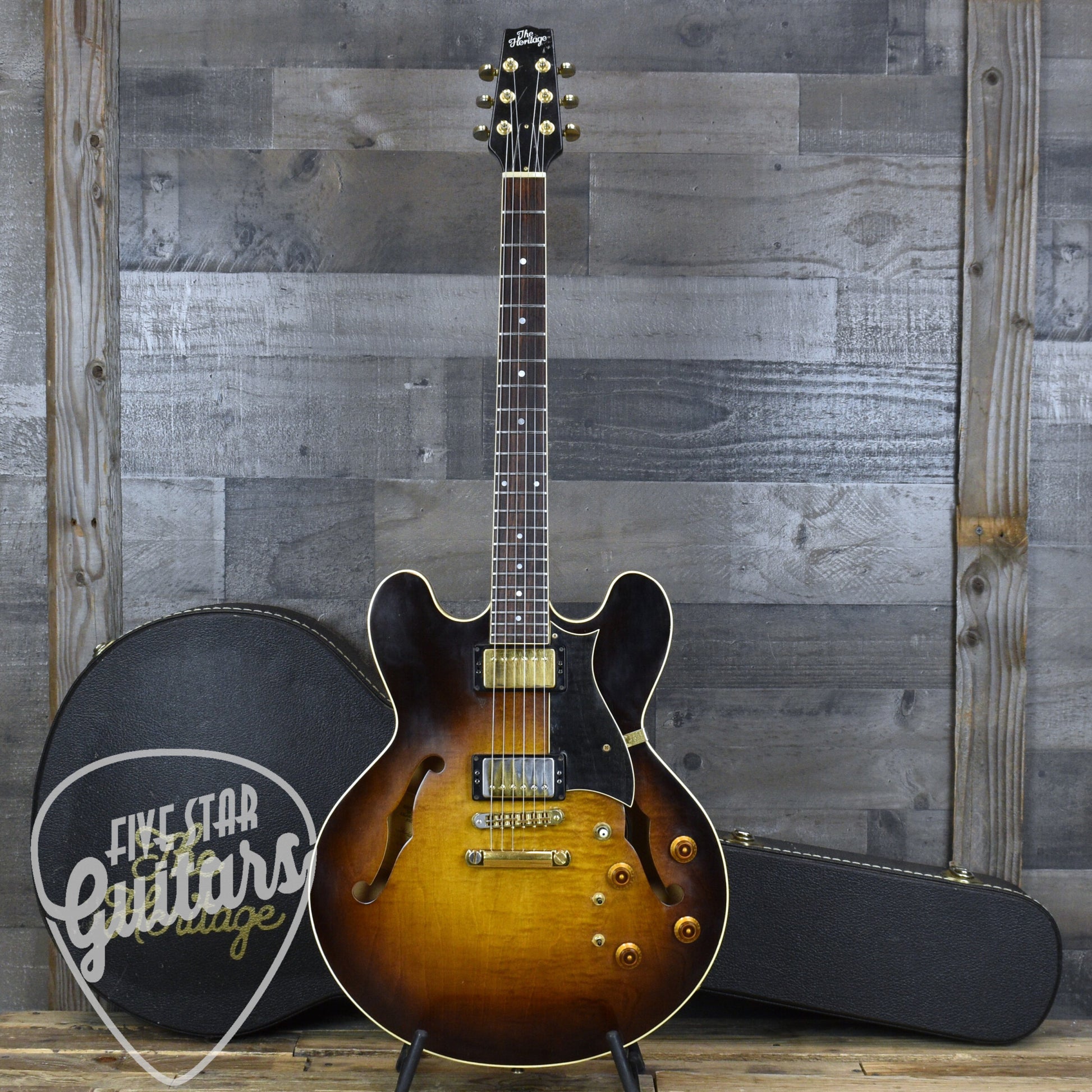

The guitar includes a hardshell TKL case for protection and transport. This is a well appointed American made semi hollow with expanded tonal flexibility that goes far beyond standard designs.
Specifications
- Year 2002
- Body Type Semi hollow
- Top Material Laminated curly maple
- Back Material Laminated curly maple
- Rim Material Solid curly maple
- Body Width 16 inches
- Body Length 18 inches
- Rim Thickness 1 5/8 inches
- Bracing Solid center block with patch
- F Holes Two
- Cutaways Venetian
- Neck Material One piece mahogany
- Scale Length 24 3/4 inches
- Neck Shape Soft C
- Headstock Pitch 17 degrees
- Fretboard Material Rosewood
- Number of Frets 22
- Inlays Mother of pearl dot
- Fretboard Radius 12 inches
- Nut Material Bone
- Nut Width 1 11/16 inches
- Fret Size .108 x .051 inches
- Truss Rod Single action
- Neck Pickup HRW Gold
- Bridge Pickup HRW Gold
- Controls Two volume two tone VIP system
- Switching One Switchcraft toggle
- Pots CTS 500K
- Capacitors Vishay Roederstein 0.022uF 250V
- Hardware Color Gold
- Bridge Replaced tuneomatic
- Tailpiece Replaced tailpiece

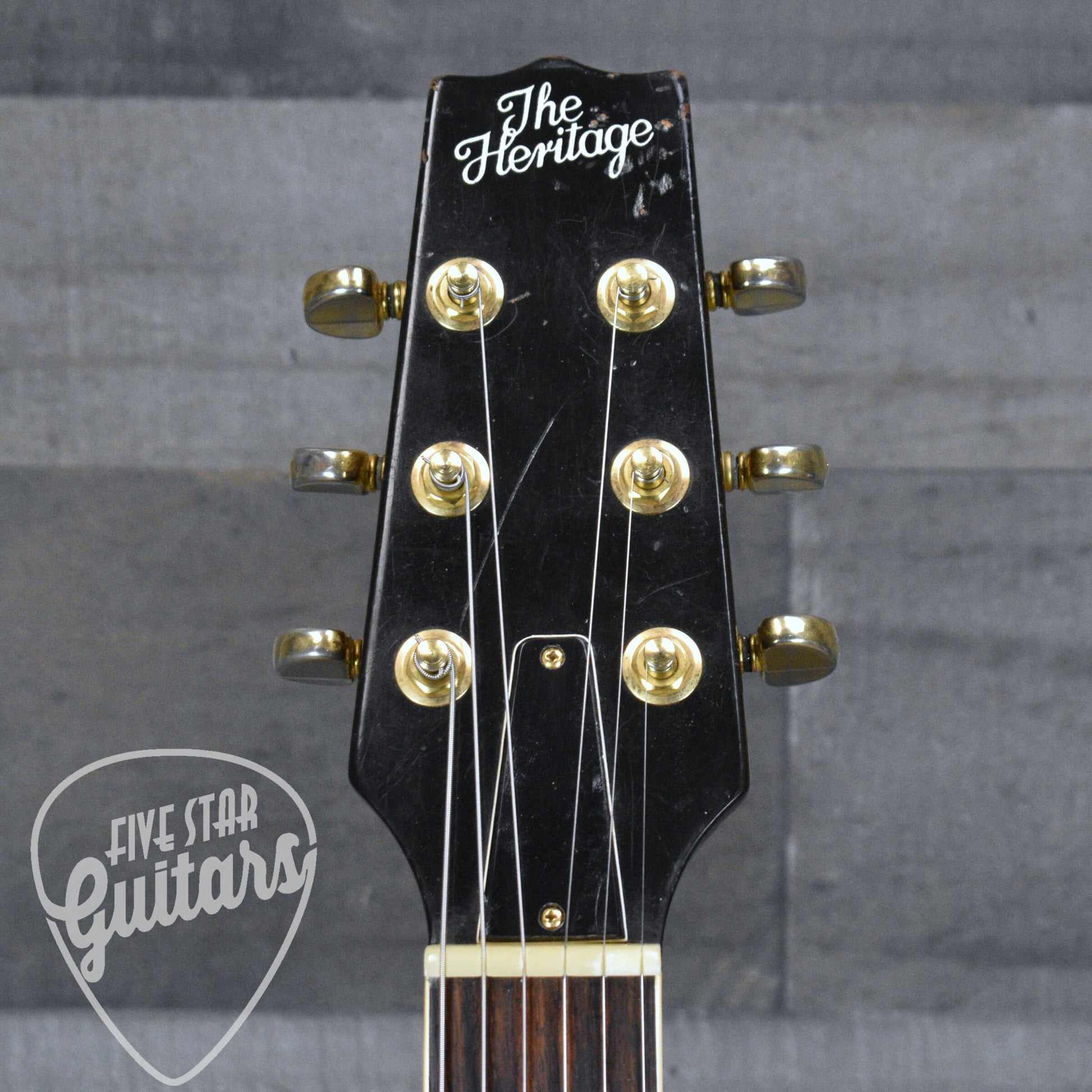

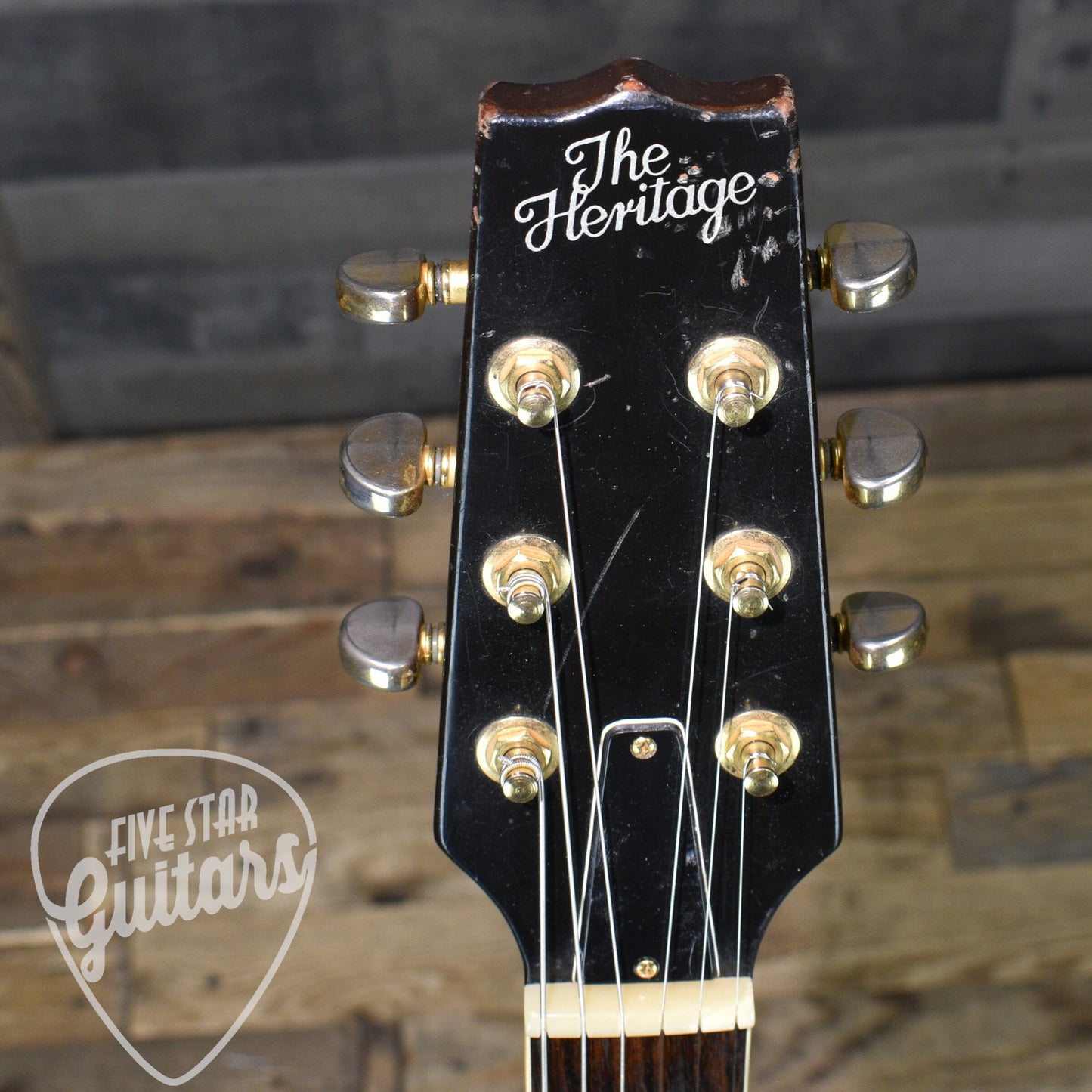

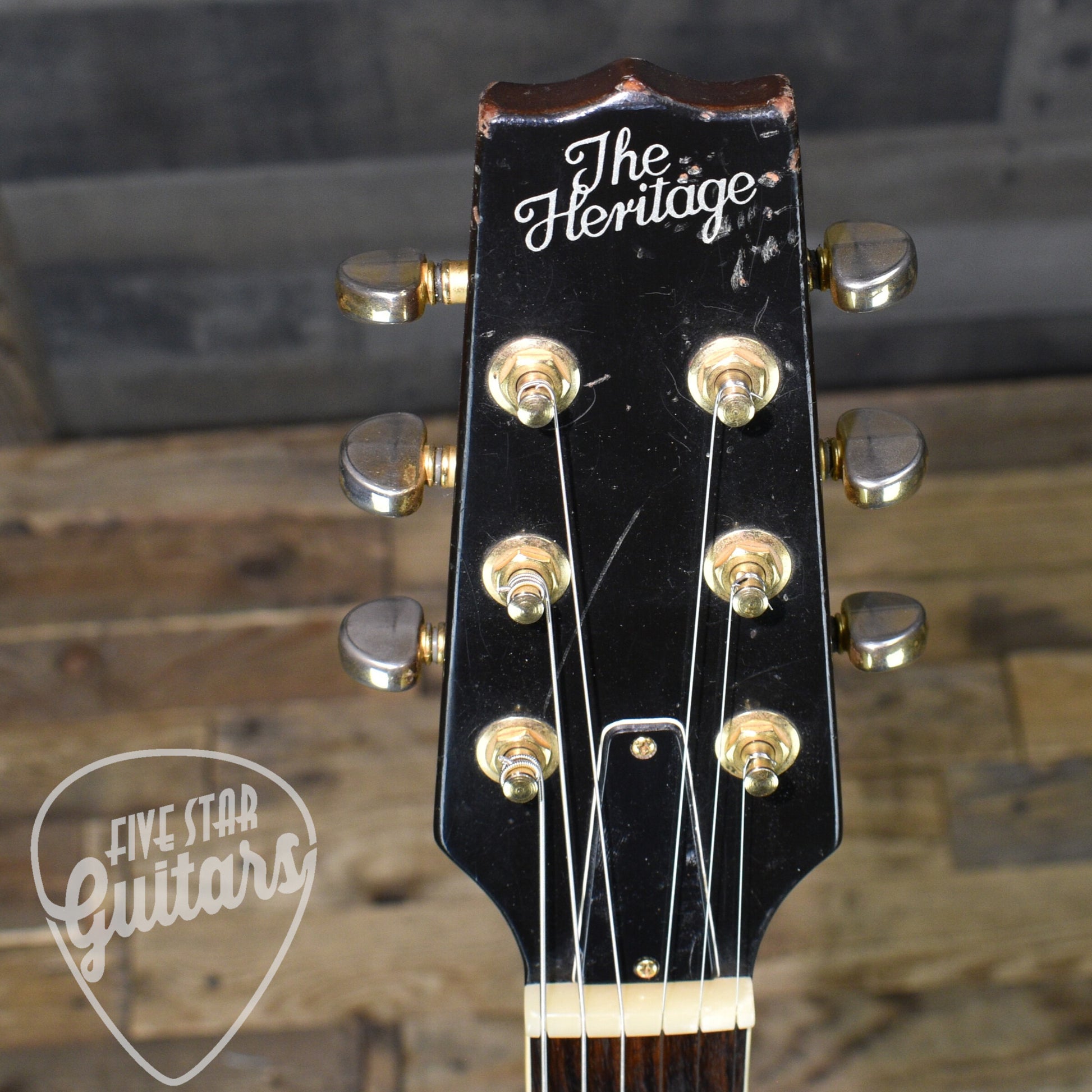

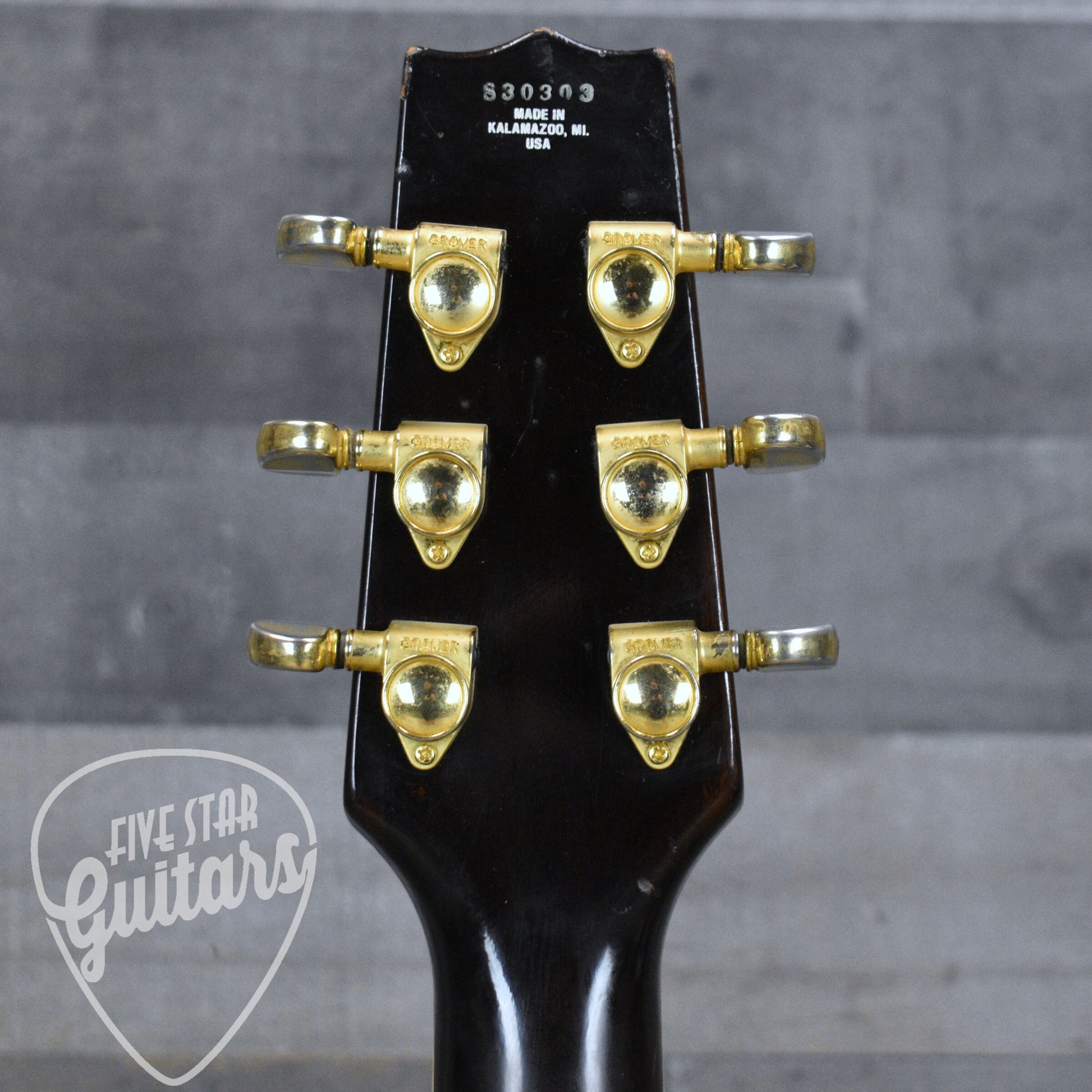

- Tuning Machines Grover Standard
- Pickguard Polished ebony
- Finish High gloss nitrocellulose
- Binding Single cream binding
- Case Hardshell TKL included
This electric guitar ships fully insured with signature required.
