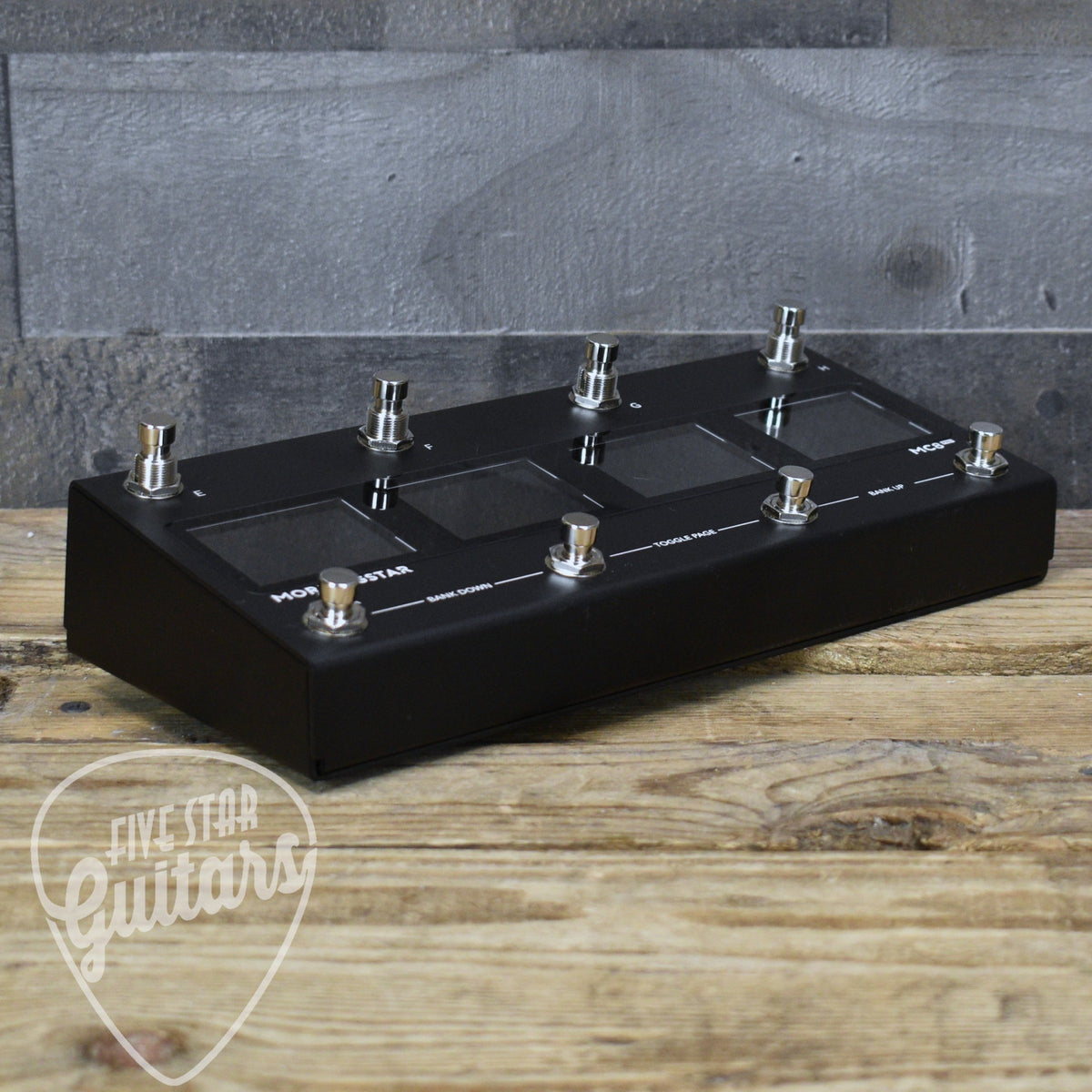

Pre-Owned Morningstar MC8 PRO Controller

The Morningstar MC8 PRO: Deep MIDI Control

Programmable MIDI Controller

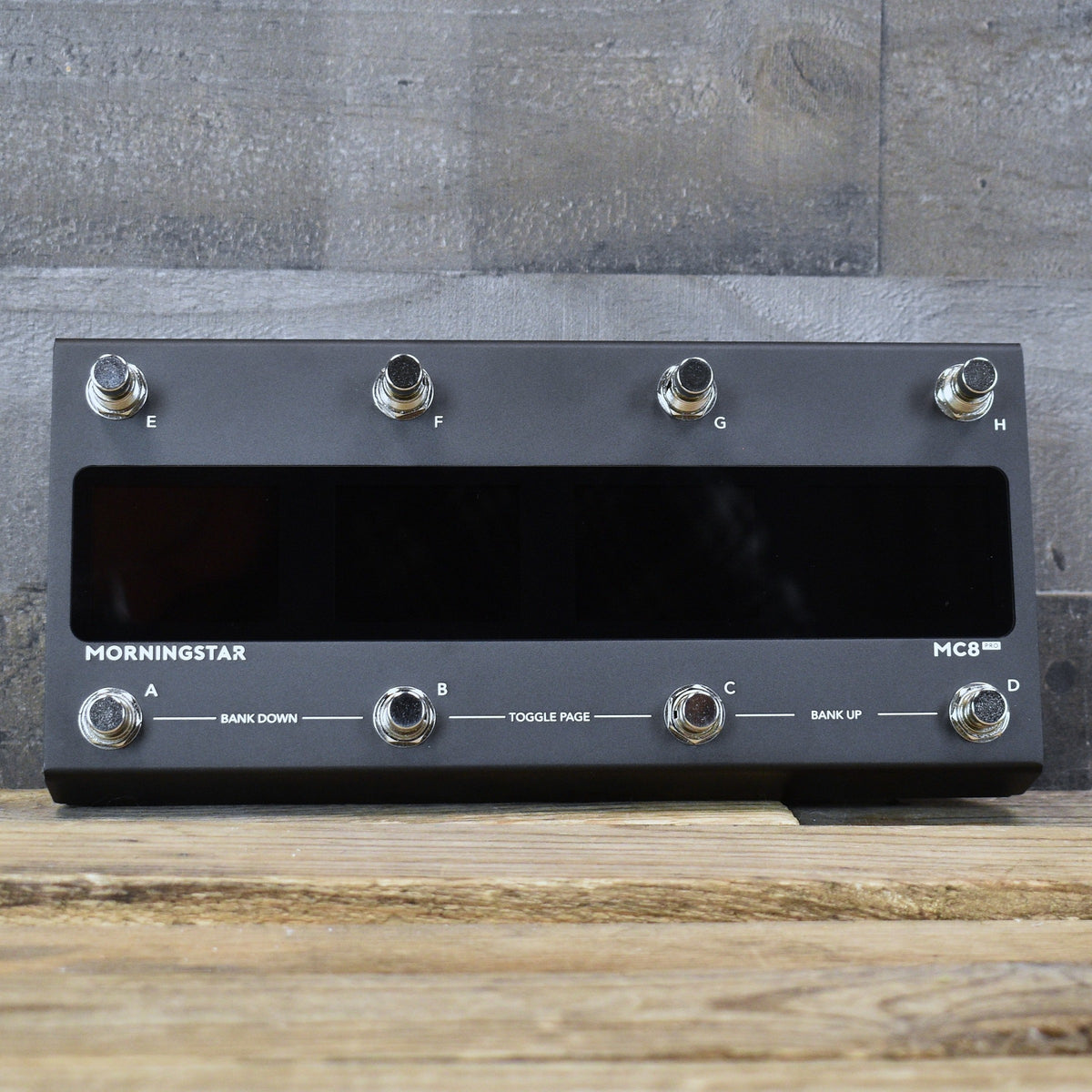

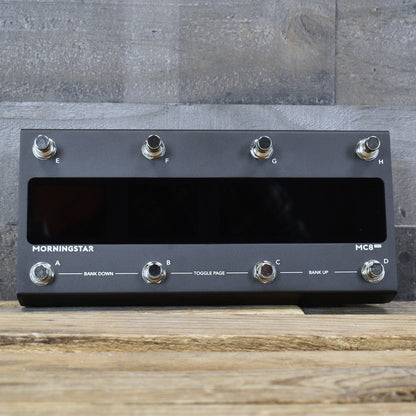

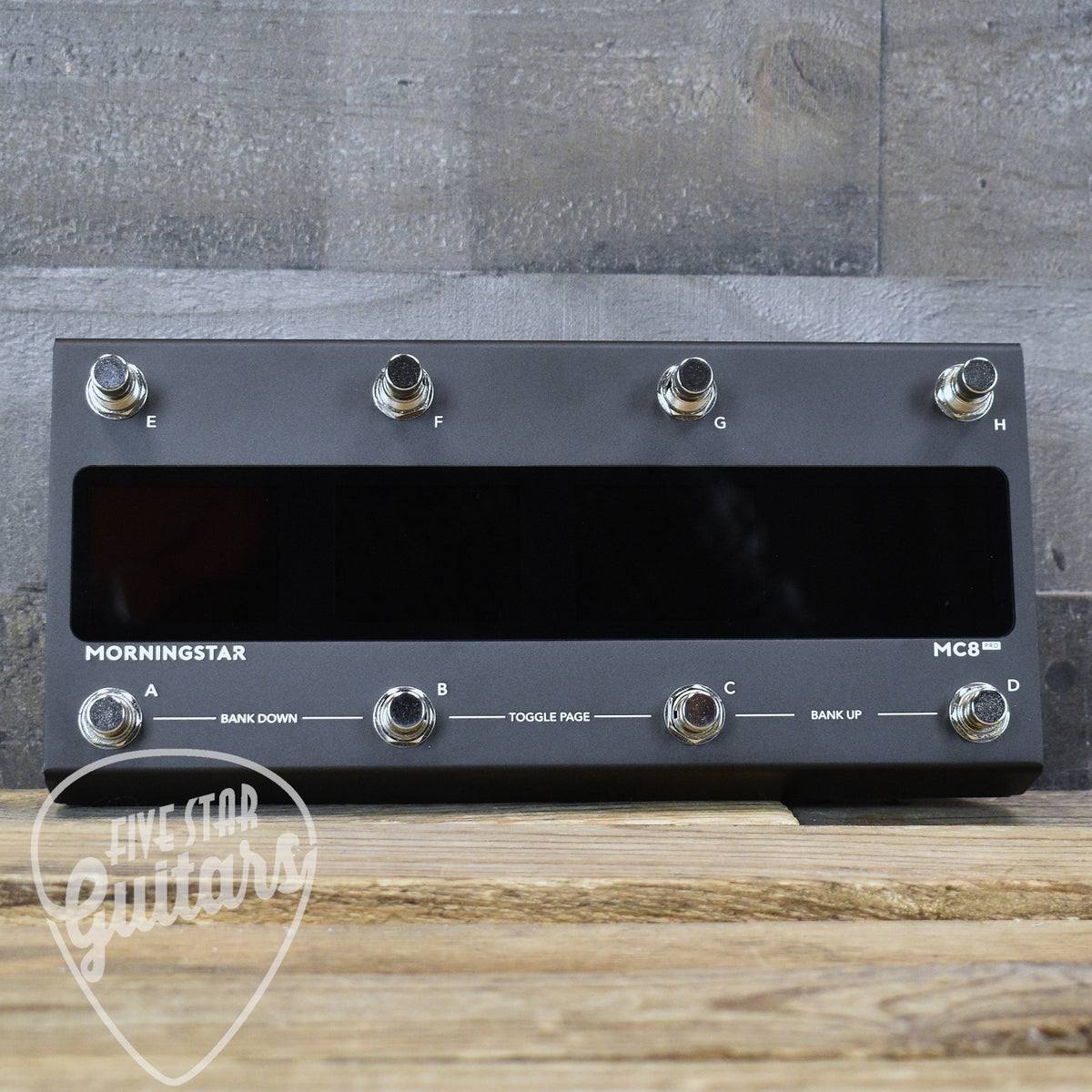

The Morningstar MC8 PRO is built for players who want serious control over a MIDI based guitar rig without turning every performance into a tap dancing routine. Its eight programmable footswitches can control MIDI capable devices, with each switch able to execute combinations of messages and actions. With 128 banks, three pages per bank and eight switch presets per page, there is plenty of room to organize everything from a straightforward pedalboard to a much more involved live rig.

High Resolution Displays and Flexible Presets

Four high resolution screens provide visual feedback for preset names, bank information and other controller functions. Presets can respond differently to actions including press, release, double tap and long press, allowing a single footswitch to handle multiple jobs. Presets also offer two toggle positions plus a temporary shift position, adding another layer of control without requiring more switches underfoot.

MIDI Connectivity for Pedals and Guitar Rigs

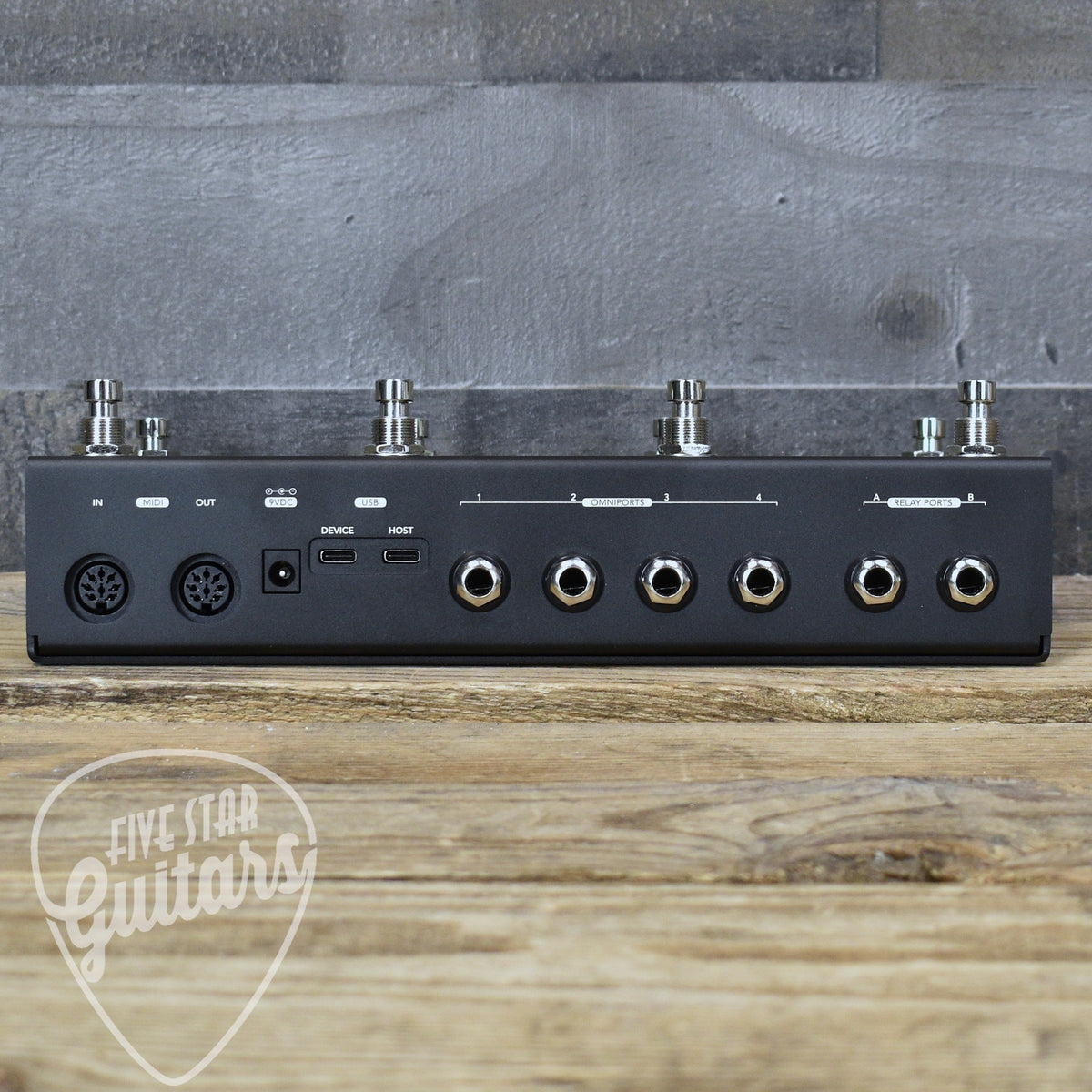

Connectivity is one of the MC8 PRO's strong suits. Standard 5 pin MIDI input and output are joined by 3.5 mm TRS MIDI input and output, USB Device and USB Host connections. Four Omniports can each be configured for TRS MIDI output, expression pedal input or auxiliary switch input. Relay ports provide control over compatible non MIDI equipment including amplifier channel switching, effects switching and analog tap tempo functions.

USB Bluetooth and Expression Control

The USB Host port can send and receive MIDI for direct control of compatible USB MIDI devices, while the USB Device connection provides access to the Morningstar Editor and MIDI capable music software. Bluetooth MIDI provides another option for wireless MIDI control. Up to four expression pedals can be connected through the Omniports, giving players continuous control over MIDI parameters such as volume, effect mix, feedback and other assignable functions.

Pre Owned Morningstar MC8 PRO Condition

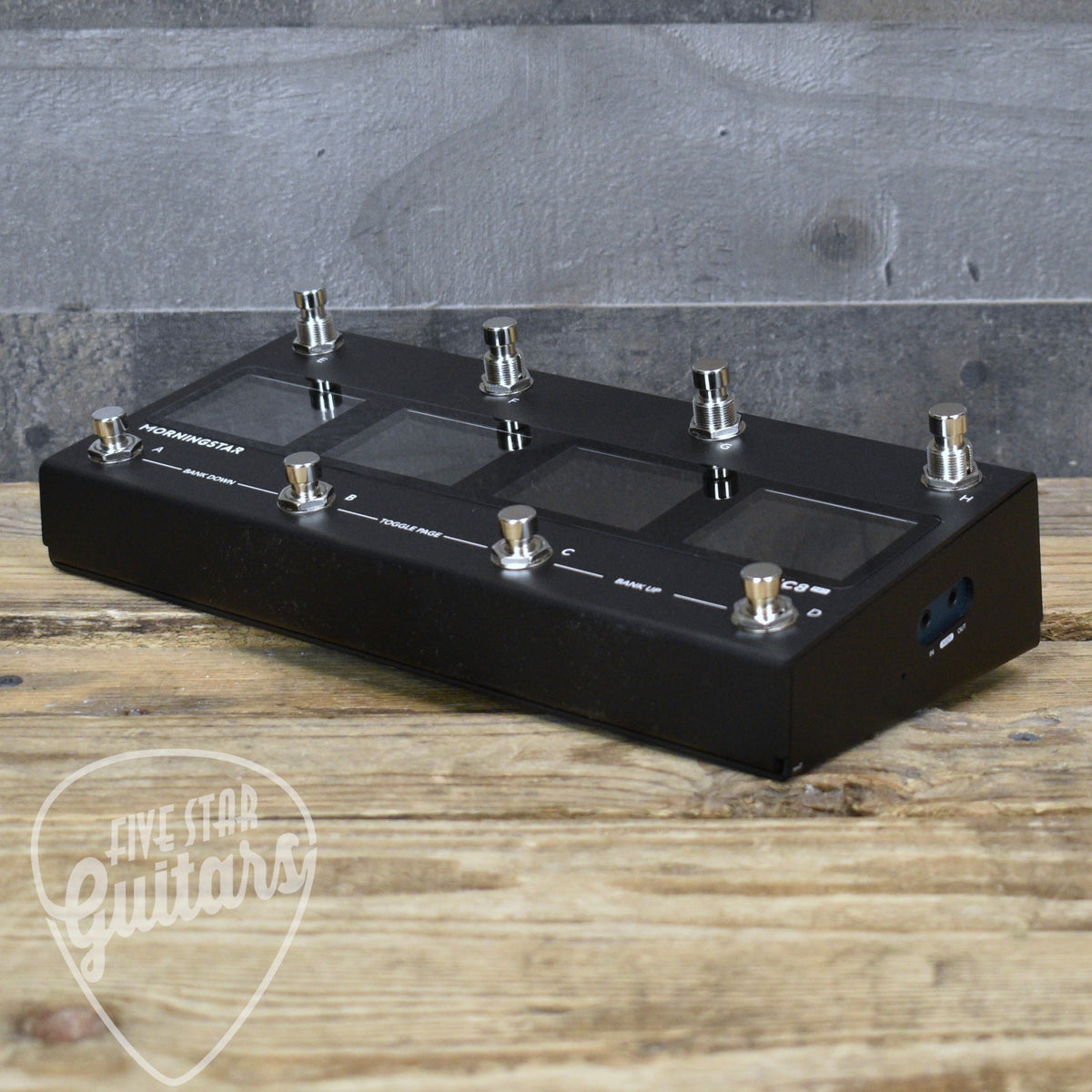

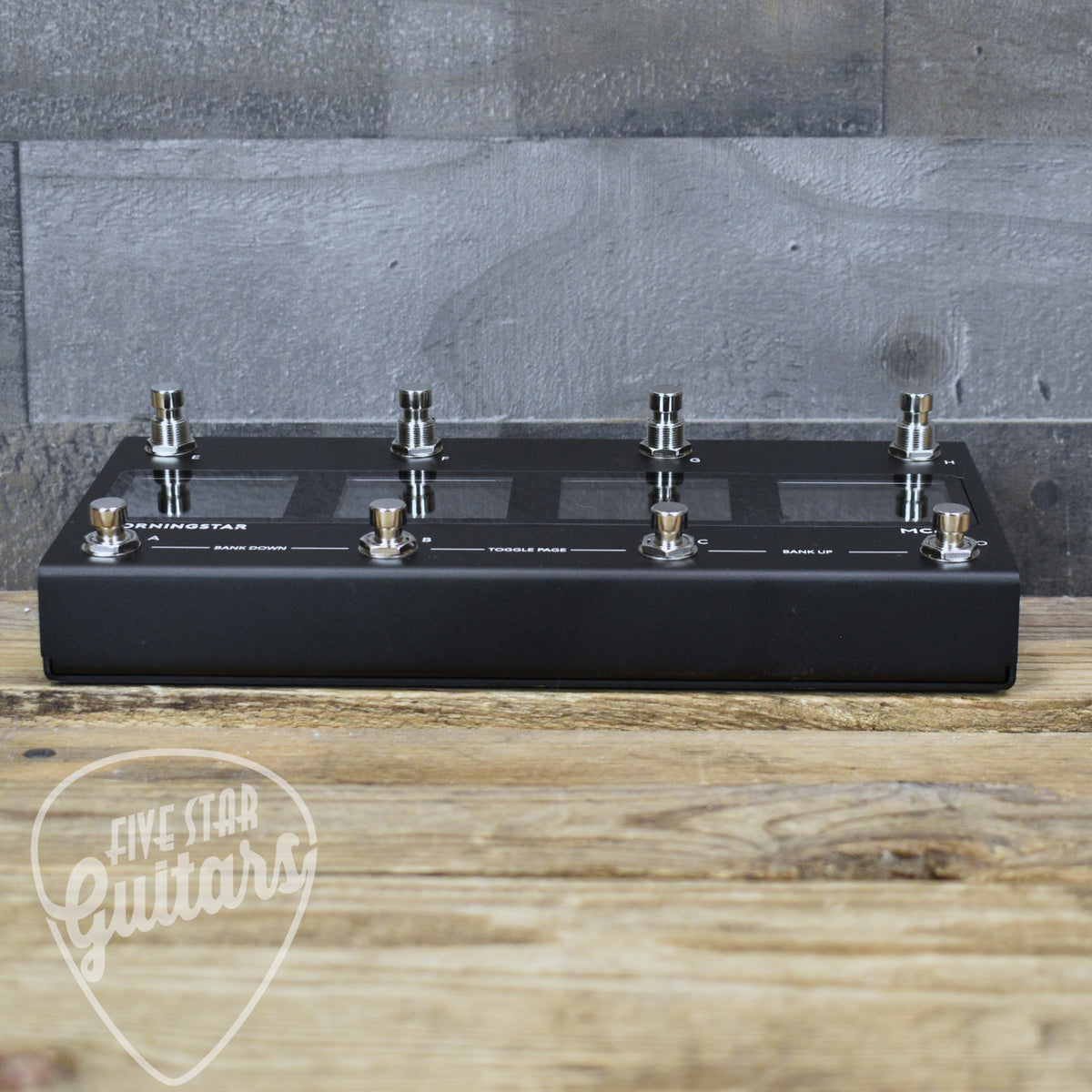

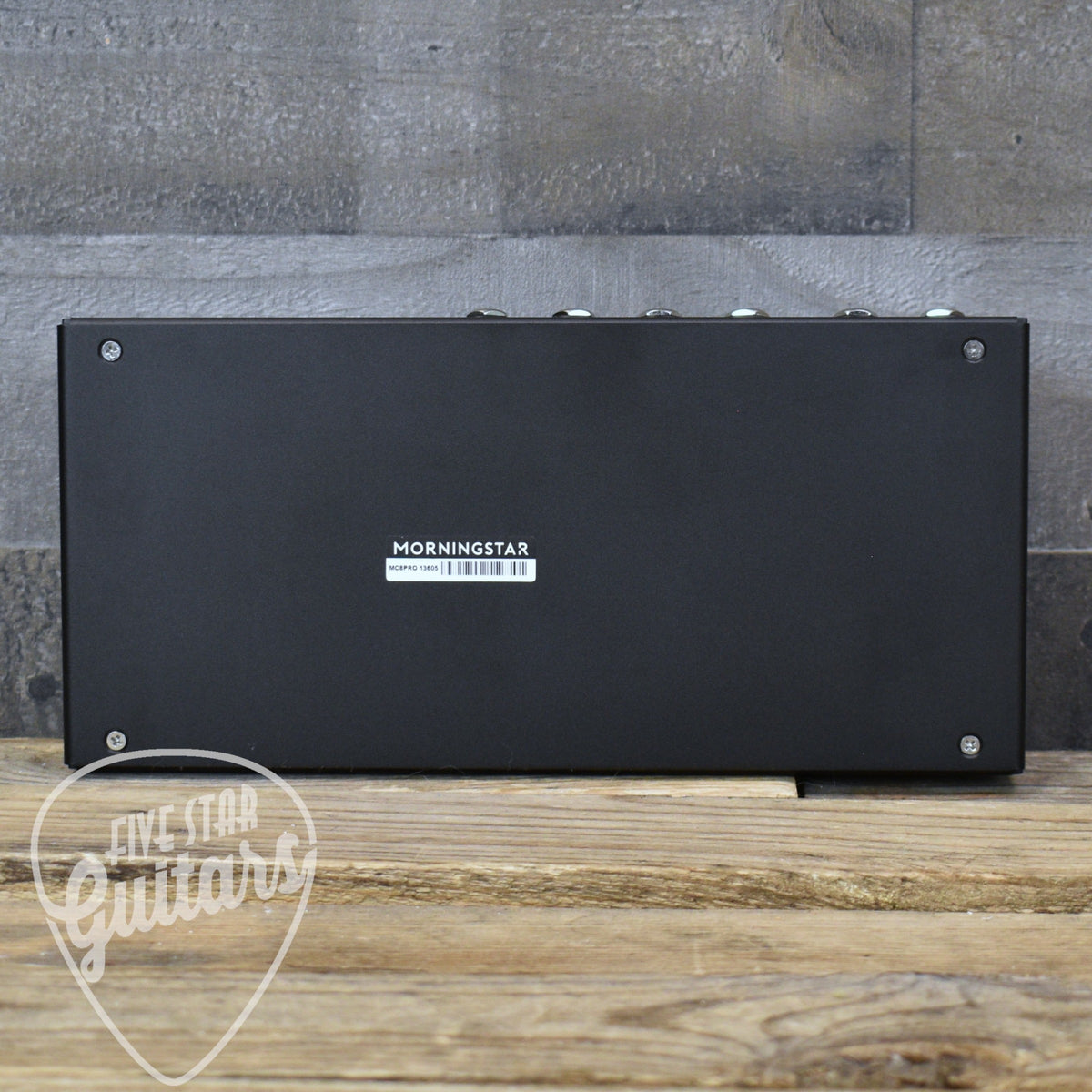

This MC8 PRO is pre owned and unmodified. It shows light wear consistent with regular use, with all cosmetic wear documented in the photoset. No accessories are included and no power supply is included.

Specifications

• Controller Type: Programmable MIDI controller

• Footswitches: 8

• Displays: 4 high resolution screens

• Profiles: 8

• Banks: 128 per profile

• Pages: 3 per bank

• Switch Presets: 8 per page

• Preset Messages: Up to 32 messages per switch preset

• MIDI Channels: 16

• MIDI Input: 5 pin DIN and 3.5 mm TRS

• MIDI Output: 5 pin DIN and 3.5 mm TRS

• Omniports: 4

• Omniport Functions: TRS MIDI output, expression pedal input or auxiliary switch input

• Expression Pedal Support: Up to 4 expression pedals

• Relay Ports: Included for compatible non MIDI device control

• USB Device: Included

• USB Host: Included

• USB Virtual MIDI Ports: 4

• Bluetooth MIDI: Included

• Power: 9 to 12V DC center negative, minimum 500mA at 9V DC

• USB Power: Supported

• Phantom Power: 9 to 12V AC or DC through pins 6 and 7 of the 7 pin MIDI output connection

• Included Accessories: None

• Power Supply Included: No

• Condition: Pre owned with light wear consistent with regular use

• Modifications: None

This effects controller ships fully insured with signature required.
