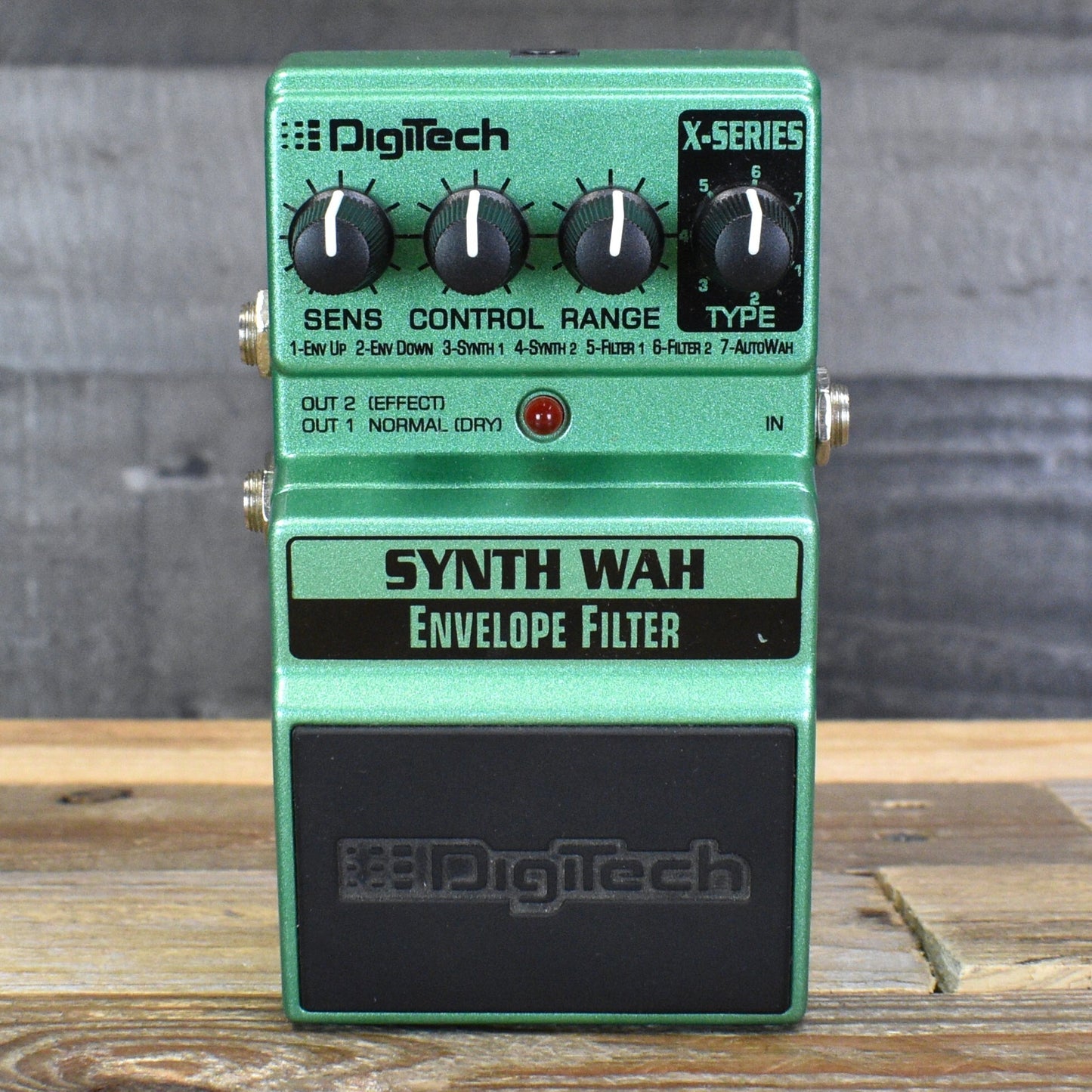

Pre-Owned Digitech Synth Wah Envelope Filter

The Digitech Synth Wah Envelope Filter: Seven Unique Effects in One Compact Pedal

Versatile envelope filter and synth tones for guitarists

The Digitech Synth Wah Envelope Filter is a multi-function effect pedal that offers a wide range of expressive and creative sounds in a compact and stage-ready format. Designed for guitarists seeking everything from classic envelope sweeps to synth-style textures, this pedal combines seven different filter, synth, and wah-based effects into a single unit.

Multiple modes for tonal experimentation

With seven selectable effect types, the Synth Wah delivers a wide sonic palette. Modes include envelope filters with upward or downward sweep, monophonic synth tones with dynamic filter movement, Digitech’s signature Synth Talk effect, and a classic auto wah. Whether you’re aiming for vintage funk, futuristic leads, or atmospheric textures, each mode brings its own distinct character.

Independent dry and effect outputs

The Synth Wah features dual outputs to give players maximum flexibility in signal routing. Out 1 (Normal/Dry) sends either a mixed or dry signal depending on how the pedal is connected, while Out 2 (Effect) provides an isolated effect signal when engaged. This setup allows you to send your dry guitar tone to one amp and your effected tone to another or a mixer—ideal for creative live or studio configurations.

Intuitive controls for real-time tone shaping

The four main controls—Sens, Control, Range, and Type—give you access to dynamic responsiveness and tone shaping. Sens adjusts the trigger response, Control and Range functions vary depending on the selected mode, and the Type knob lets you scroll through all seven effects. The pedal operates via a standard 9V battery or optional DigiTech PS200R power supply.

Compact design and stage-ready construction

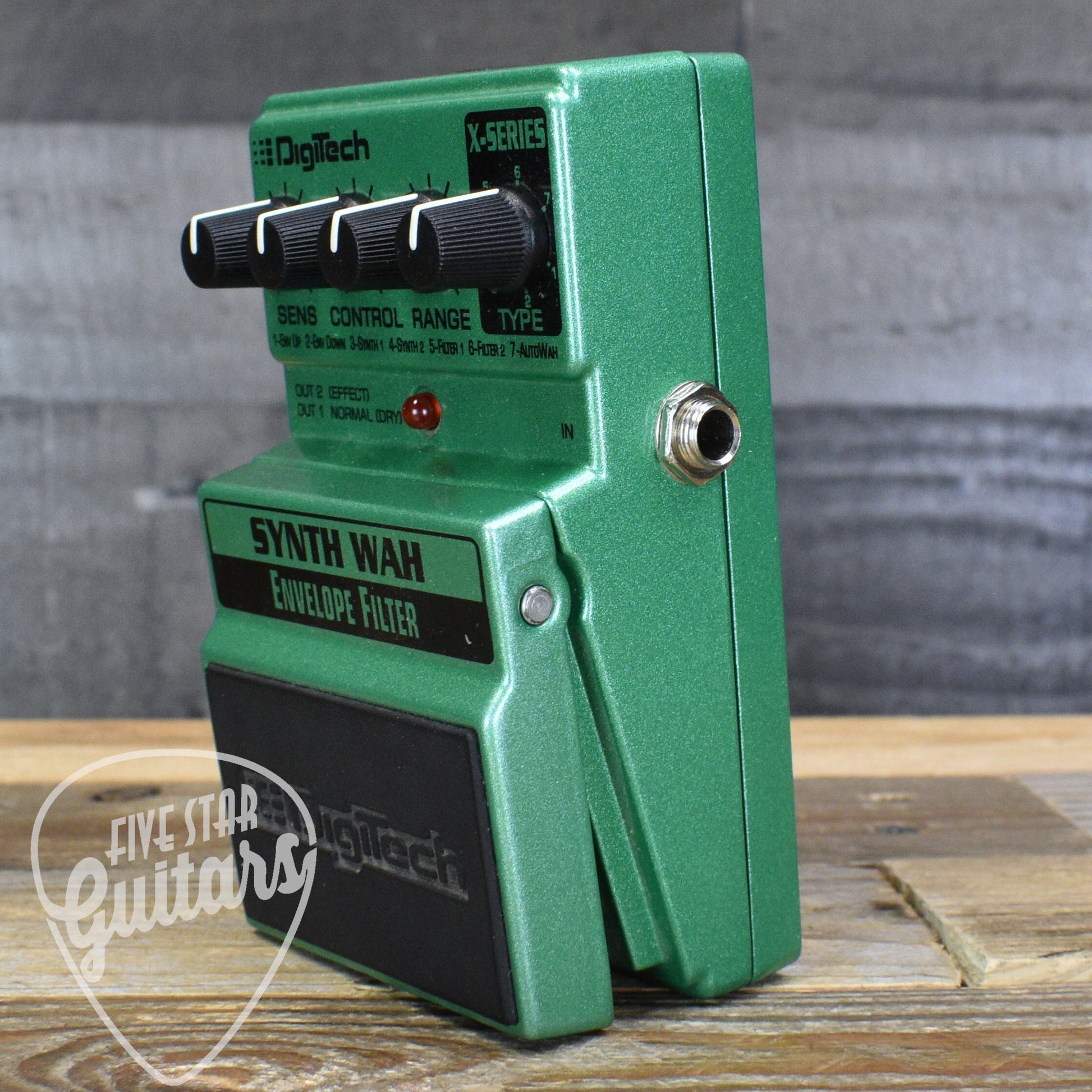

Built with rugged housing and a user-friendly footswitch, this pedal is made to withstand live use while maintaining quick access to battery replacement via its spring-loaded pedal release pins. At under 5 inches long and just over a pound in weight, the Synth Wah fits easily on any pedalboard while offering a wide range of tonal options in a single footprint.

Specifications

• Controls: Sens, Control, Range, Type, On/Off Pedal

• Jacks: Input, Out 1 Normal (Dry), Out 2 (Effect)

• Input Impedance: 1 MOhm

• Output Impedance: 100 Ohms

• Power Supply: 9V Alkaline Battery or PS200R Adapter (sold separately)

• Power Consumption: 4.8 Watts

• Battery Life: Approximately 4 hours (continuous use)

• Dimensions: 4 15/16" (L) x 3 1/8" (W) x 2 1/8" (H)

• Weight: 1.38 lbs


This guitar effect pedal ships fully insured with signature required.
