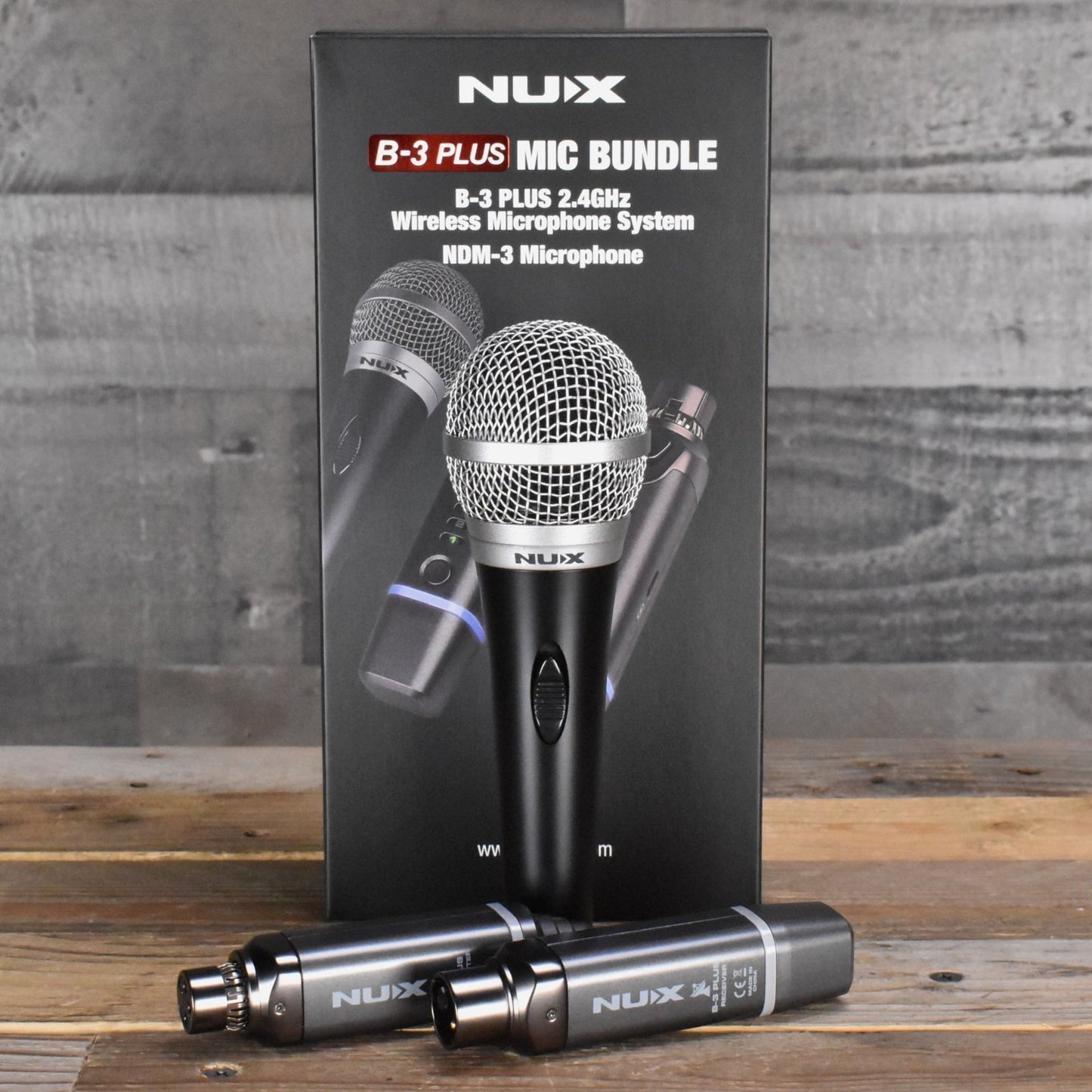

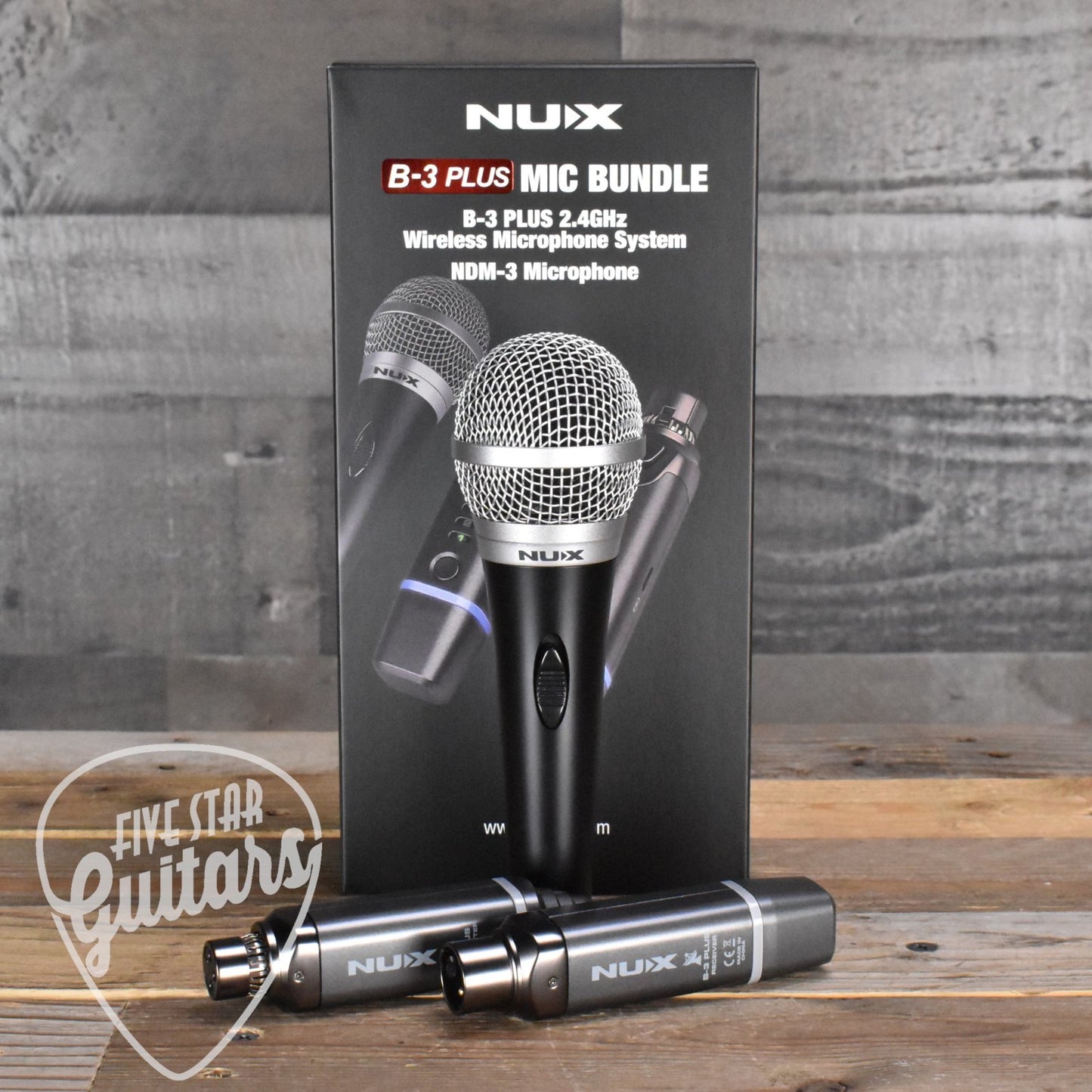

NUX B-3 Plus Microphone Bundle

Revolution of the Wireless Mic Experience

The B-3 PLUS MIC BUNDLE uses the newest 2.4GHz wireless algorithm with a NUX NDM-3 dynamic microphone. Plug the Transmitter (TX) to your mic Receiver (RX) to PA system and you are good to go. The B-3 Plus auto pairs with 6 channels scanning and can avoid Wi-Fi interference making it simple to use! Plug it in turn it on B-3 PLUS MIC BUNDLE makes it easy to everyone to embrace great wireless microphone sound.

Buskers singers or speakers who use microphones to communicate with audiences wireless offers you the freedom of unrestricted movement. No wires at all and no costly batteries required as it is fully rechargeable. With the B-3 PLUS MIC BUNDLE you won't go wrong for a revolution of the wireless experience. You'll never want to go back to the mic cable again.

Great Performance

The range limit of the B-3 Plus is 100-feet outdoor and the latency is less than 3.5ms. Hi-Resolution audio quality: 24-bit / 44.1 kHz. This range is perfect for just about any space or venue you can walk 100 feet away from the receiver and the signal will flow with no latency or a break. The long lasting built-in battery simply can be charged with USB cable which is included the package.

Operation

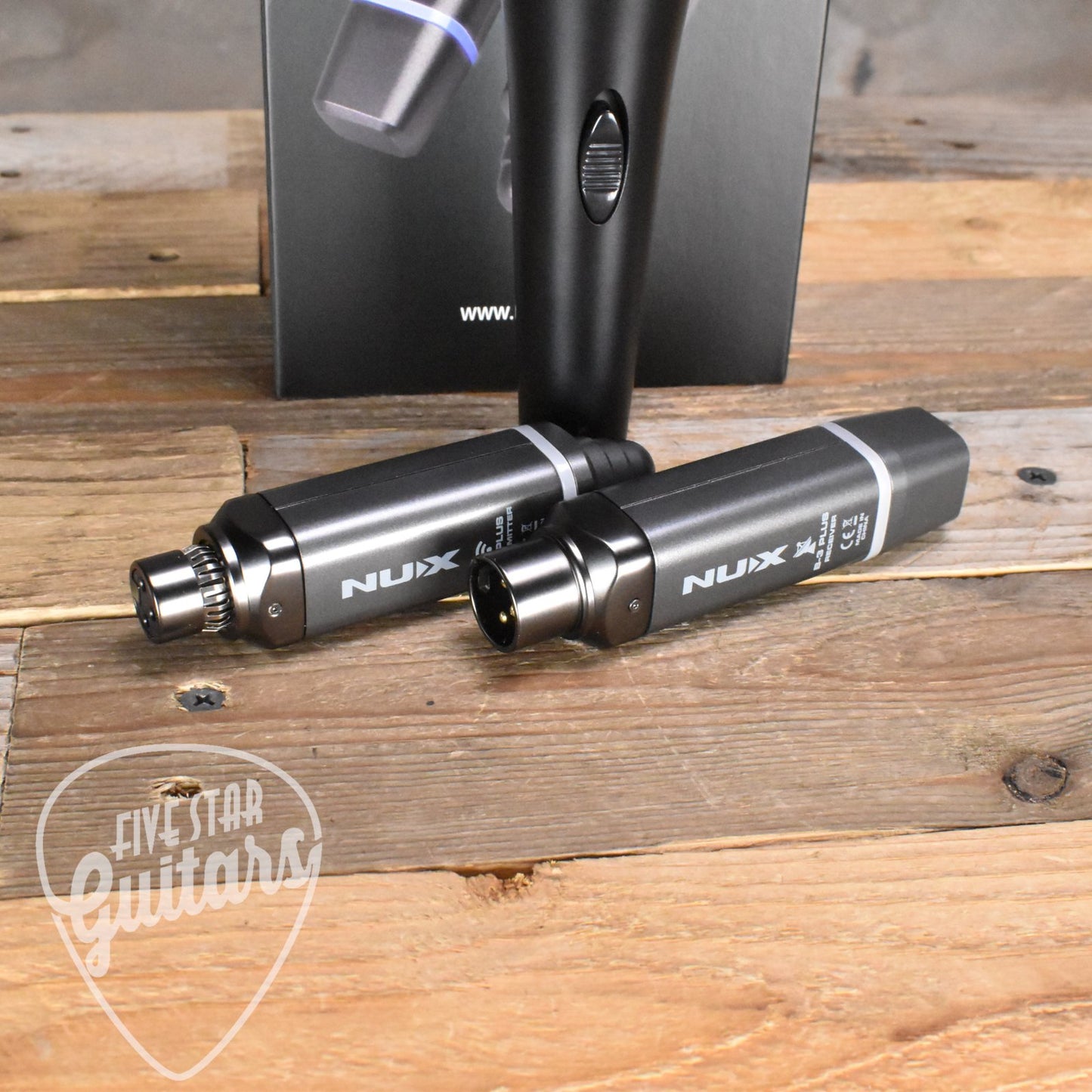

Connect the TX to microphone and connect the RX to a device you want to connect the microphone (amplifier speaker mixer camera or mobile phone).

If you are using B-3 PLUS MIC BUNDLE to connect to a camera or a mobile phone please use the included converter cables.

Turn on the TX and the RX

The auto pairing with channel selection will detect the current Wi-Fi environment and choose the best channel to operate.

Made for Video Shoots and Live Streaming

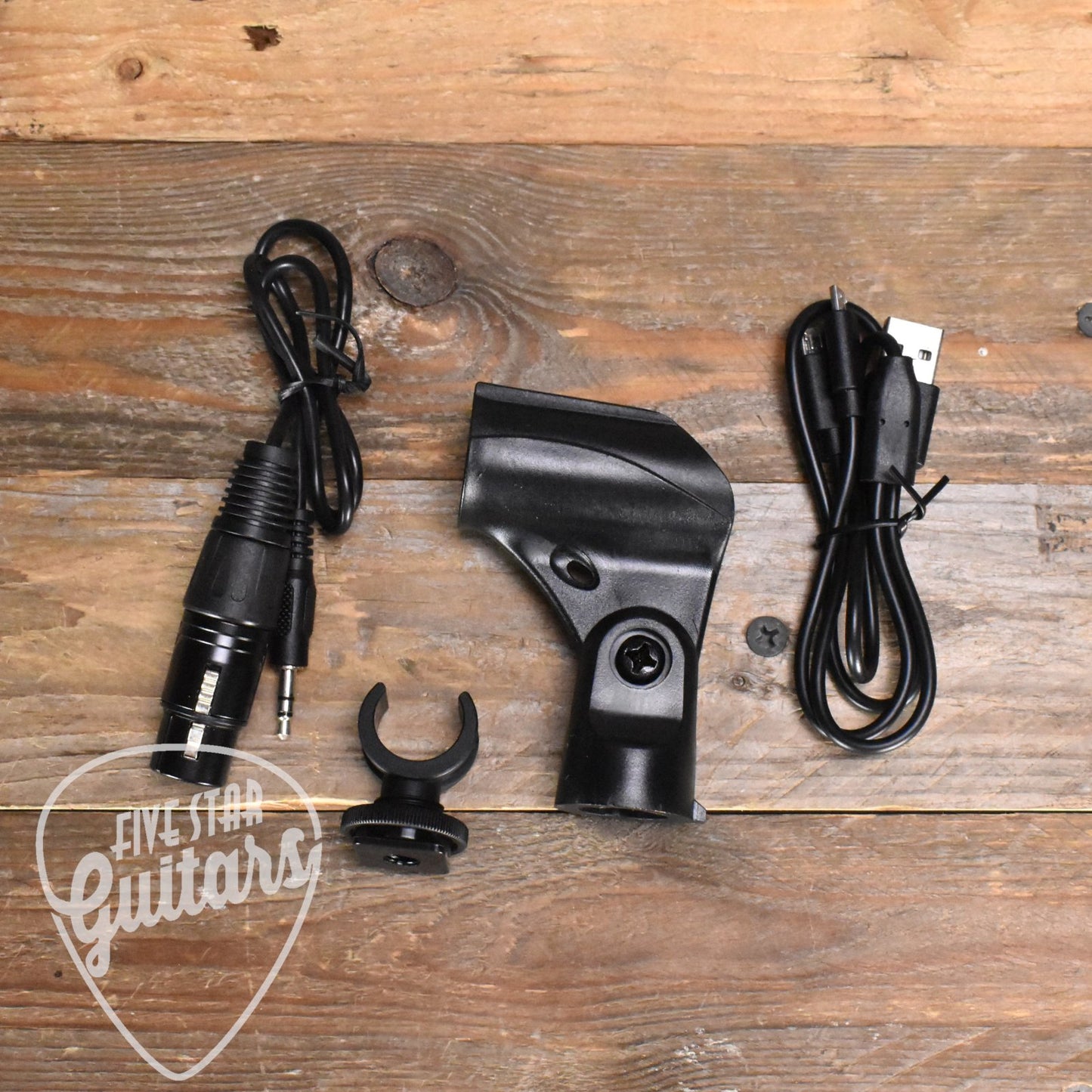

The NUX B-3 PLUS MIC BUNDLE comes with a hot shoe mic adapter XLR to 3.5mm phone jack cable which easily attaches to your camera.

Features

2.4 GHz Broadcast - interference free.
24-bit / 44.1kHz audio signal quality.
Less than 3.5 ms latency.
6 channels - auto pairing with channel selection.
Long lasting battery - up to 5 hours.
100-feet distance at open air areas.

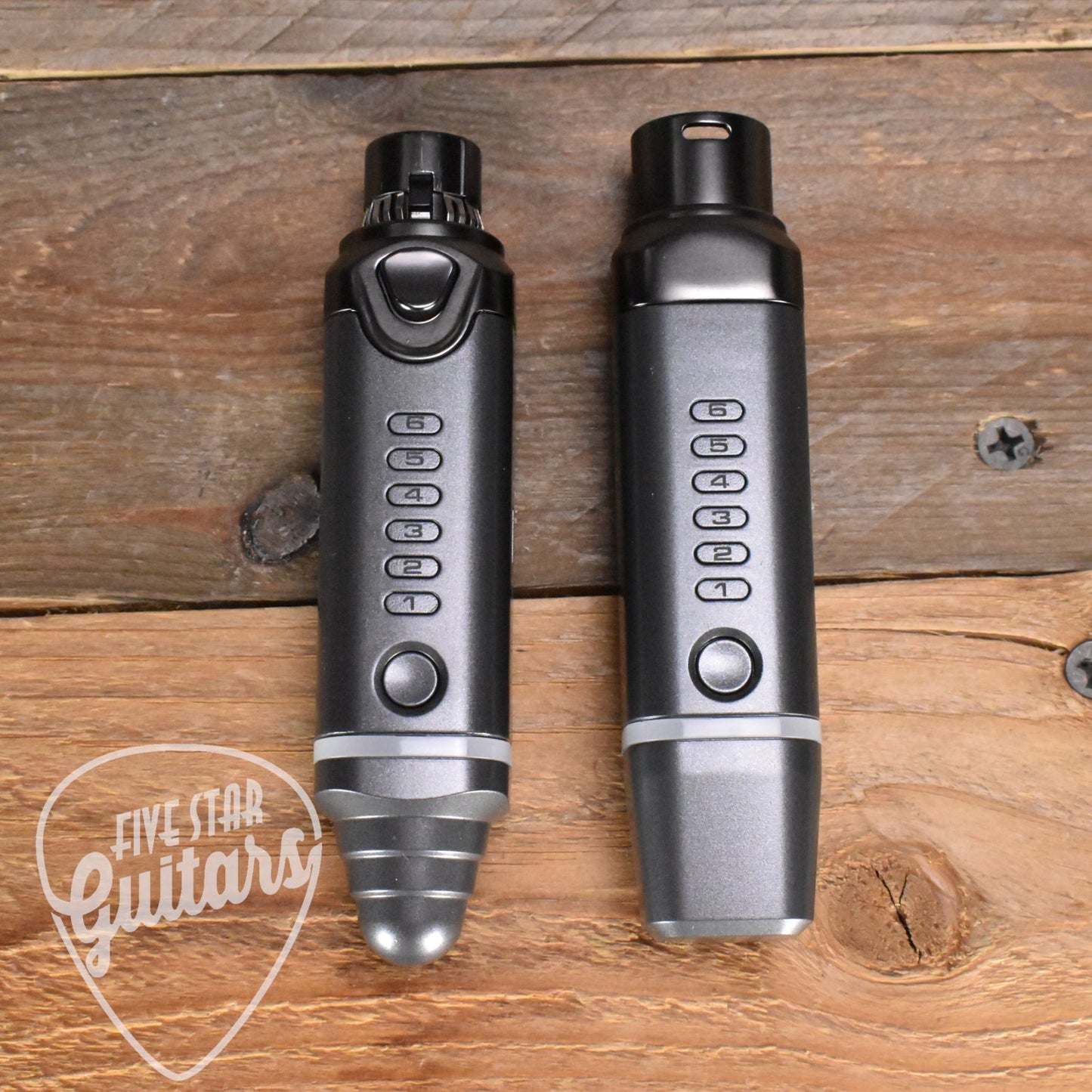

SpecificationsTransmitter & Receiver

2.4GHz operating frequency
Latency - <3.5ms
Transmission Range - Up to 100 feet line-of-sight
Dynamic Range - 110dB
THD + Noise - < 0.2% @1 kHz
Battery Life - 5hrs

Dimensions

Transmitter - 107mm(L)25mm(W)x25mm(H)
Receiver - 107mm(L)25mm(W)25mm(H)
Weight - Transmitter 68g / Receiver 70g

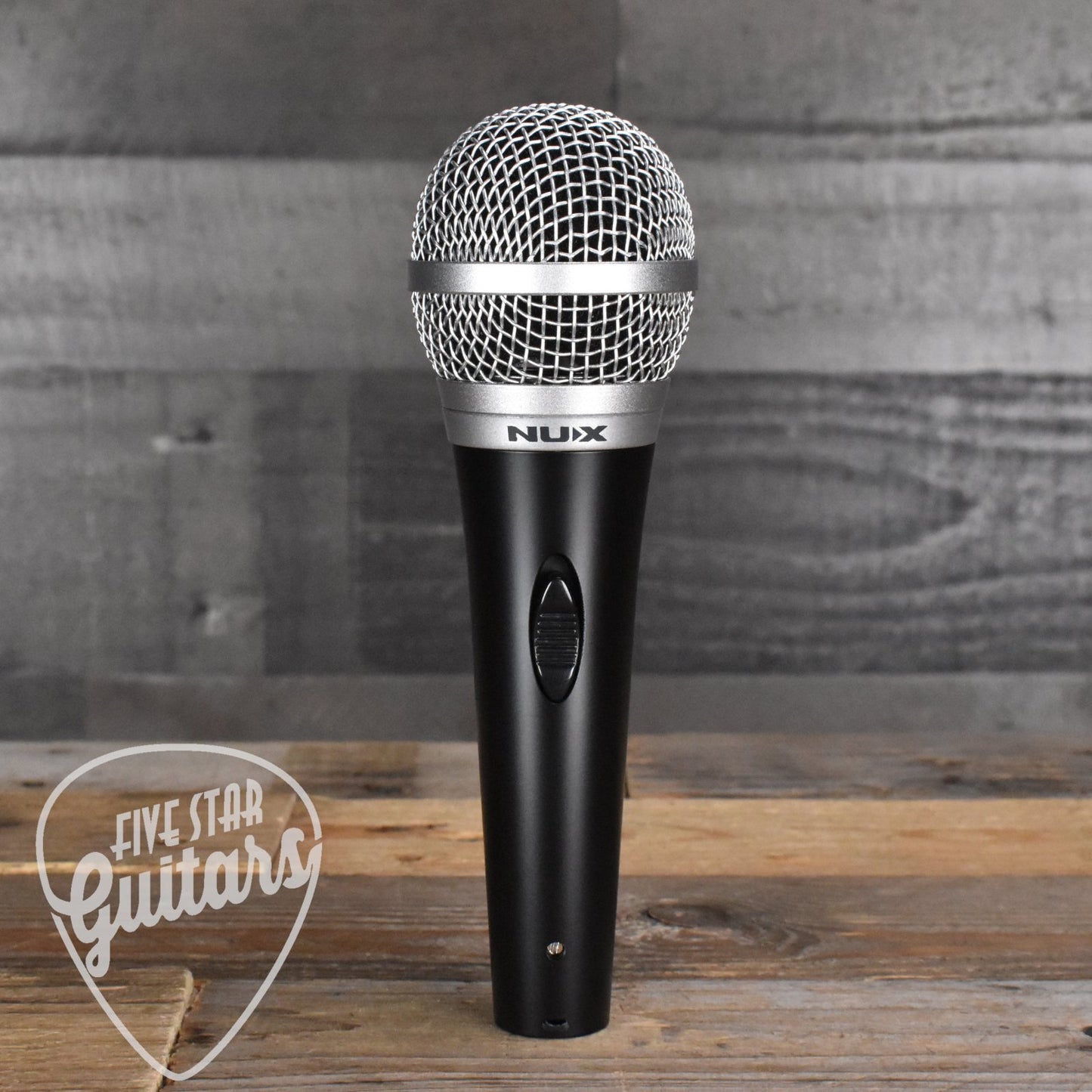

SpecificationsNDM-3 Dynamic Microphone

Type - Dynamic Type
Impedance - 600 15% (at 1K Hz)
Sensitivity - -48.4 3dB (0dB = 1v/pa)
Frequency Response - 50Hz ~ 15KHz
Direction - Uni-Directional (Cardioid) Polar Pattern
Operating Temperature - -30C ~ 60C
Construction - Sponge Ref-shake Type
Dimensions - 171mm(L) x 54mm(W) x 54mm(H)
Weight - 261g

*This item ships fully insured with signature required.*
