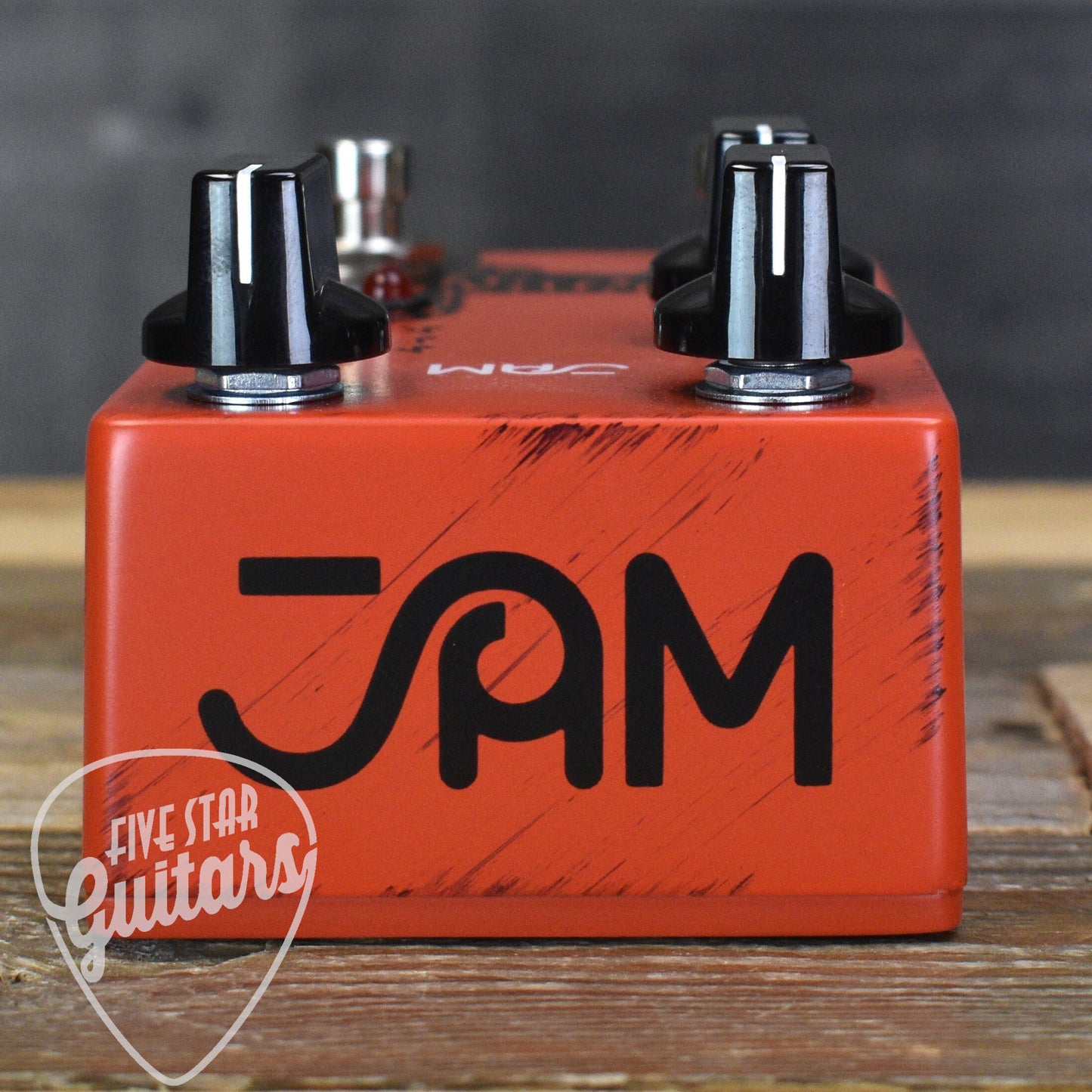

JAM Delay Llama MK3: Warm Analog BBD Delay with Tap Tempo

Rich, Organic Delay for Your Sound

The JAM Delay Llama MK.3 is an analog BBD delay pedal that adds warmth and depth to your sound with its rich, organic repeats. Utilizing faithful reproductions of the Panasonic MN3205 BBD chips, this tone machine seamlessly integrates into your playing, making it an indispensable part of your setup. With a maximum delay time of 600ms, the Delay Llama MK.3 provides a classic tape-echo feel with modern reliability.

Enhanced Features for Greater Control

The MK.3 version of the Delay Llama expands its utility while retaining its form factor and ease of use. New features include Tap Tempo with subdivisions and a Hold (self-oscillation) function. These additions allow you to precisely control your delay time and create dynamic soundscapes effortlessly. The pedal also offers selectable bypass modes, allowing you to choose between trails (buffered) and true bypass.

Versatile Controls for Precise Adjustment

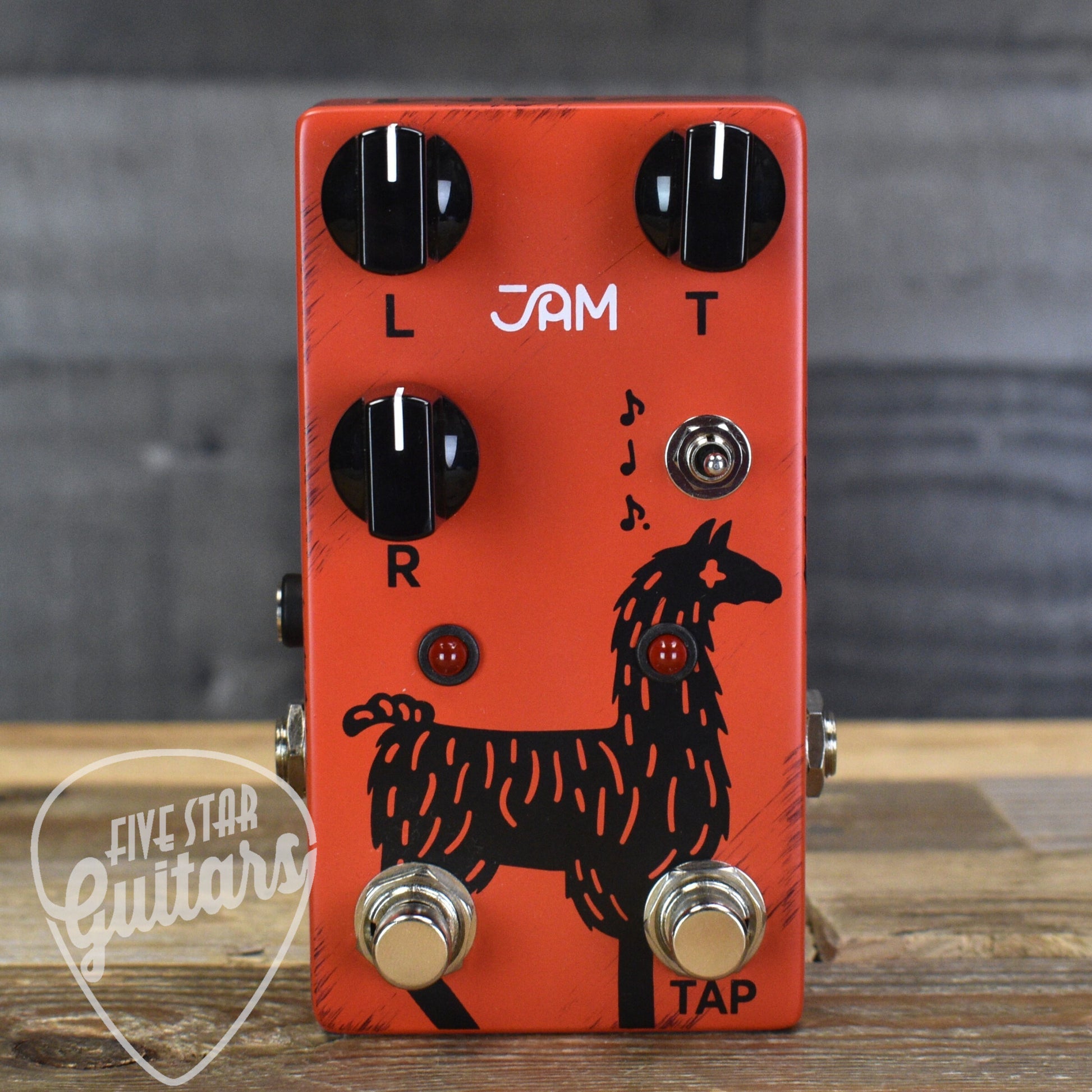

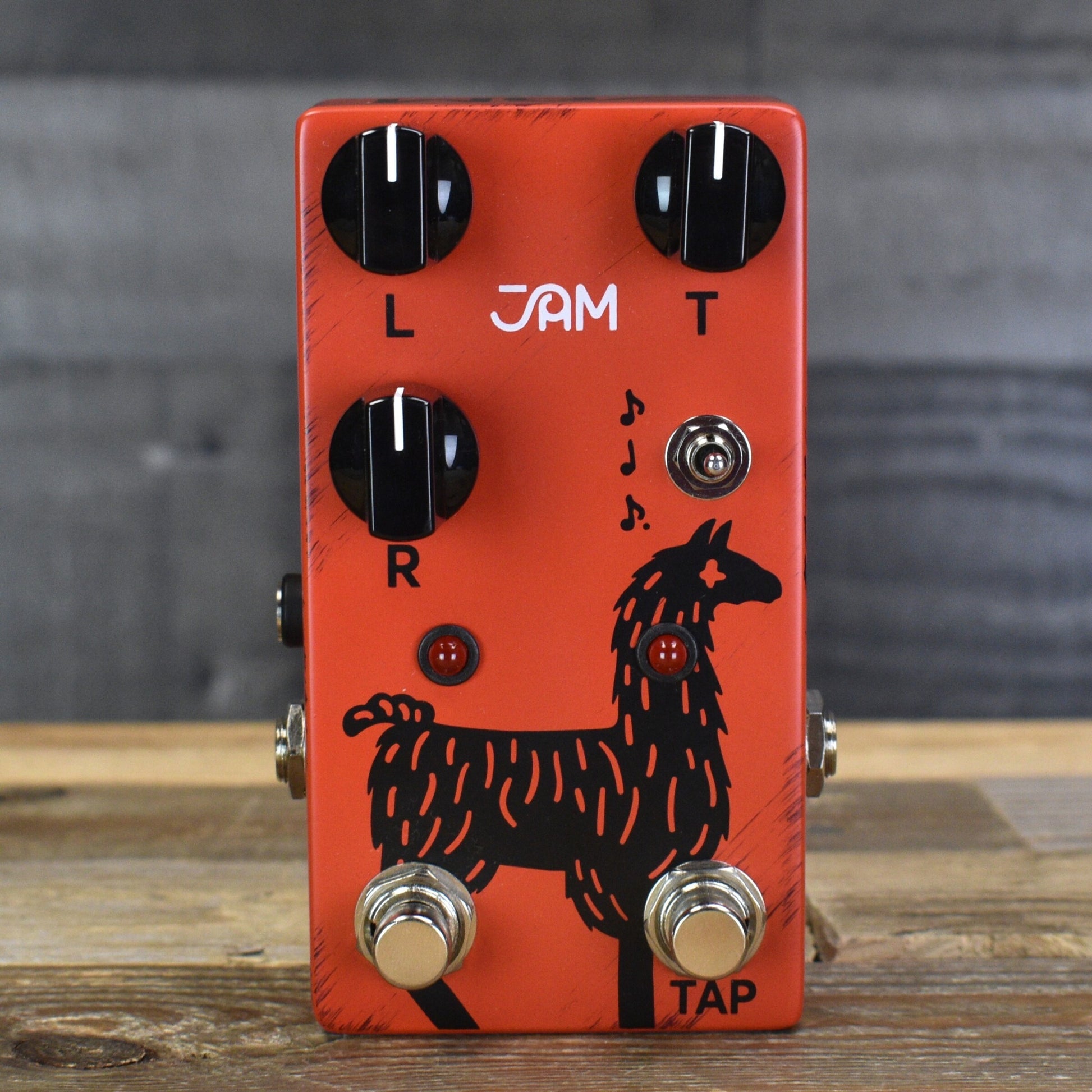

The Delay Llama MK.3 is designed for straightforward use, with intuitive controls that make dialing in your perfect delay easy:

• L (Level): Adjusts the level of the repeats on top of your dry signal.
• T (Time): Sets the delay time, up to 600ms.
• R (Repeats): Controls the number of repeats, from a single echo to infinite feedback.

Additionally, a 3-way toggle switch lets you select between quarter, eighth, and dotted eighth notes, based on the time you tap in, not the time knob.

Internal Trimmers for Customization

For added flexibility, the Delay Llama MK.3 includes internal trimmers:

• Trails Fade Out Time: Adjust the fade-out time for trails, accessible via a hole on the center of the top PCB.
• Max Number of Repeats: Set the maximum number of repeats with a multi-turn trimmer, located on a blue rectangle with a golden screw.

Suitable for Guitar and Bass

The Delay Llama MK.3 is versatile enough to be used with both electric guitar and bass, making it a great addition to any musician's pedalboard.

Specifications:

• Type: Analog BBD Delay
• Max Delay Time: 600ms
• Controls: Level, Time, Repeats, 3-way toggle switch for subdivisions
• Bypass Modes: Selectable trails (buffered) or true bypass
• Internal Trimmers: Trails fade out time, max number of repeats
• Additional Features: Tap Tempo with subdivisions, Hold (self-oscillation)
• Compatibility: Suitable for both guitar and bass

This pedal ships fully insured with signature required.
