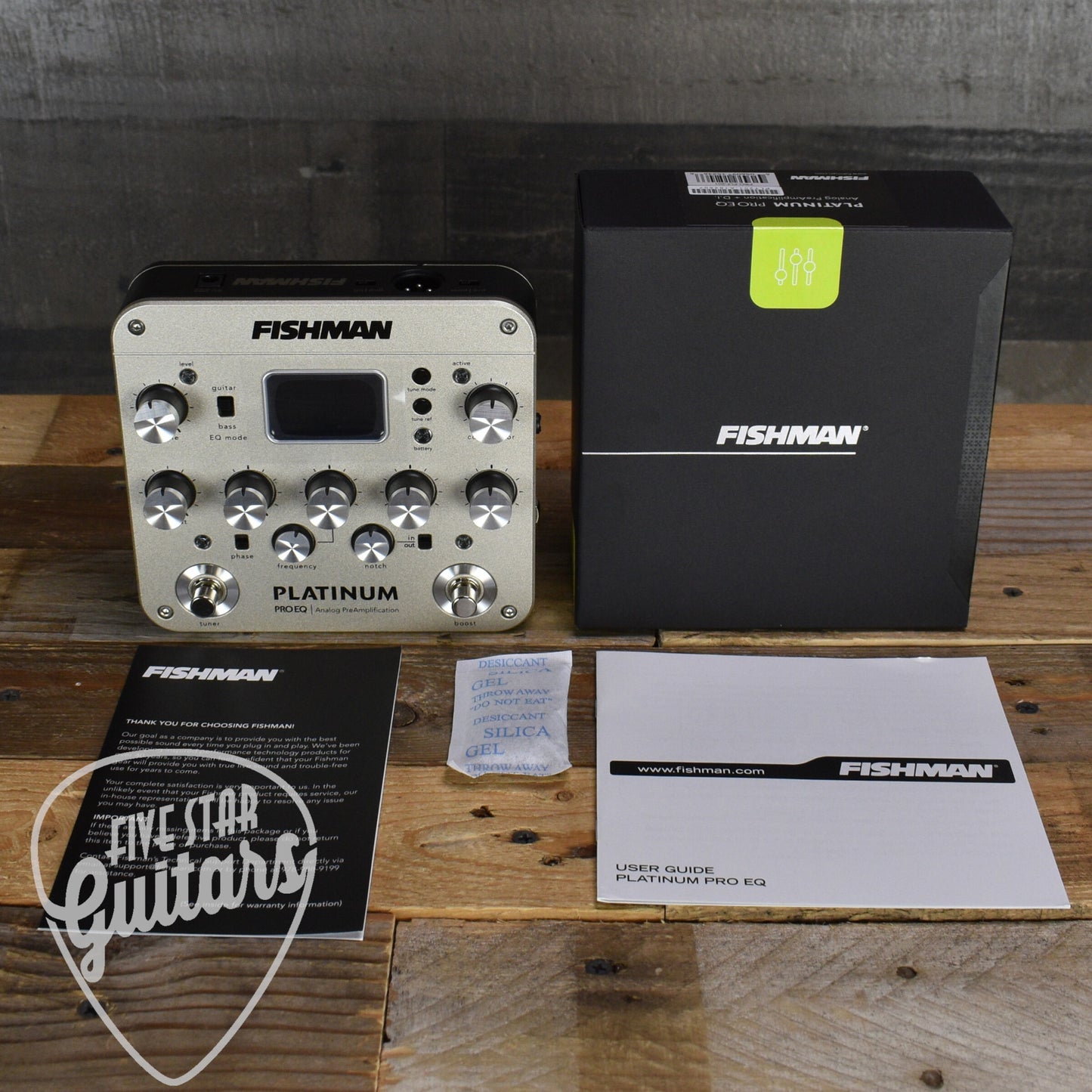

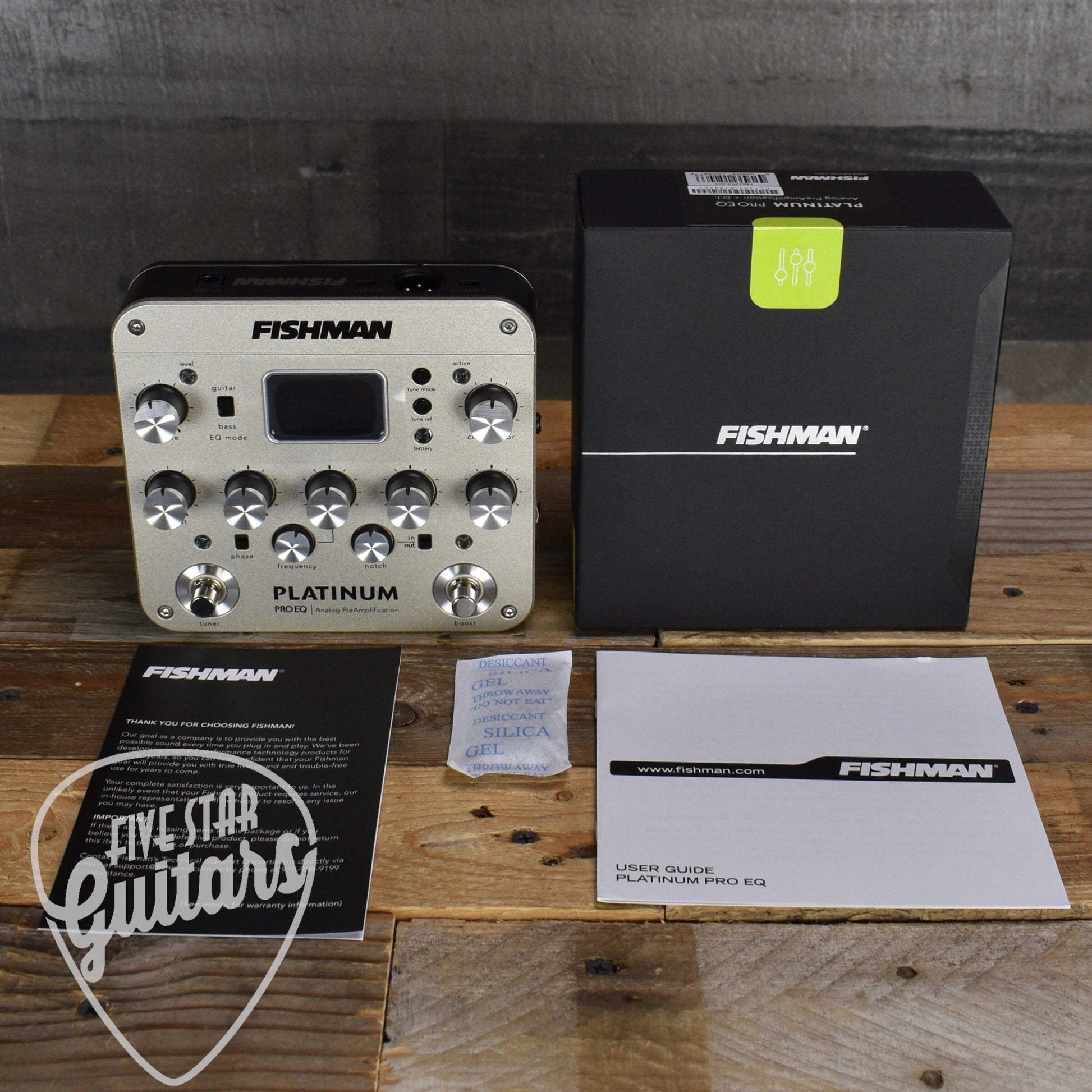

Fishman Platinum Pro EQ/DI Analog Preamp

The Fishman Platinum Pro EQ: Premium Preamp and DI for Serious Acoustic Tone Shaping

Comprehensive Acoustic Tone Control

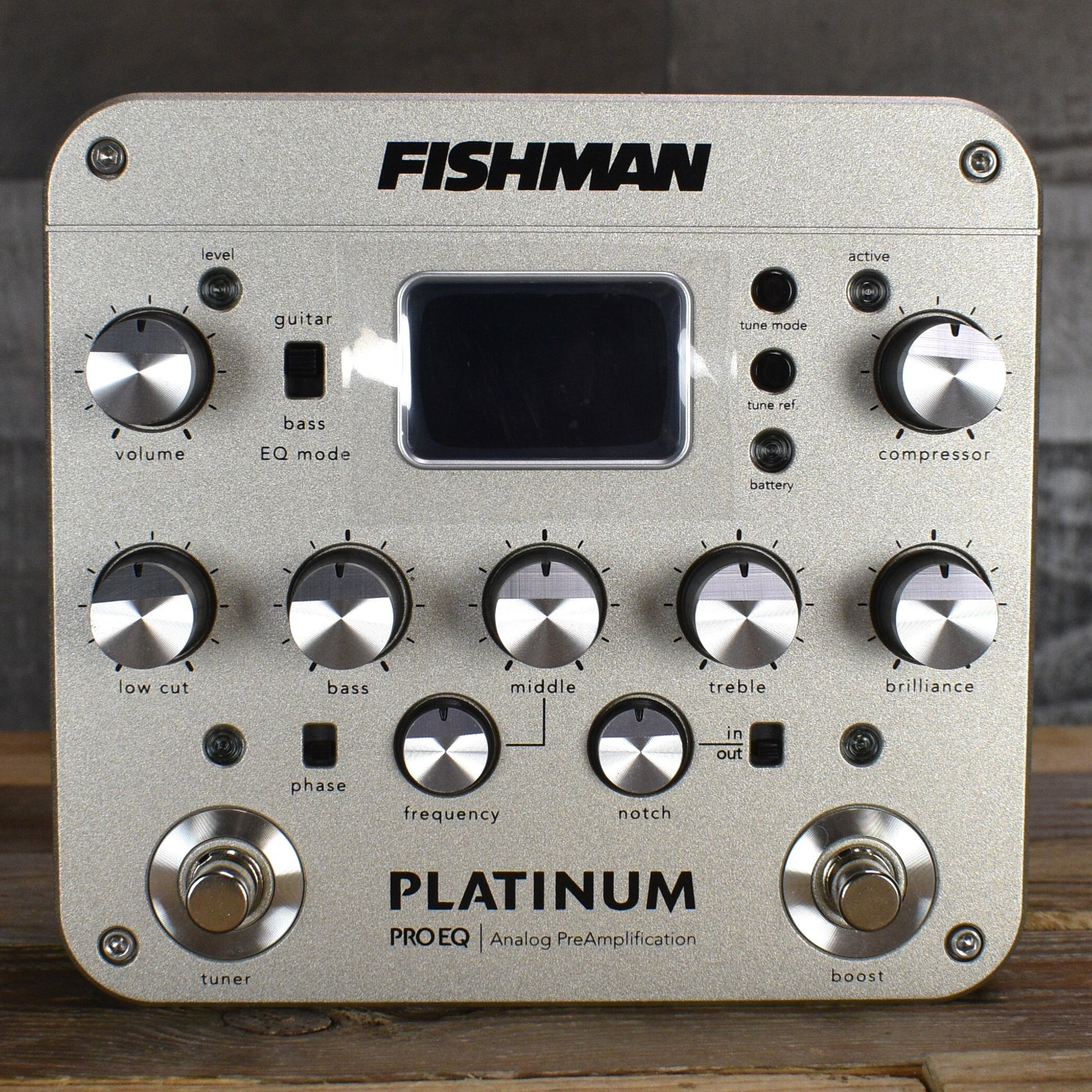

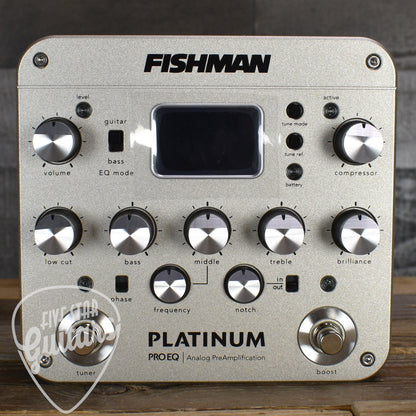

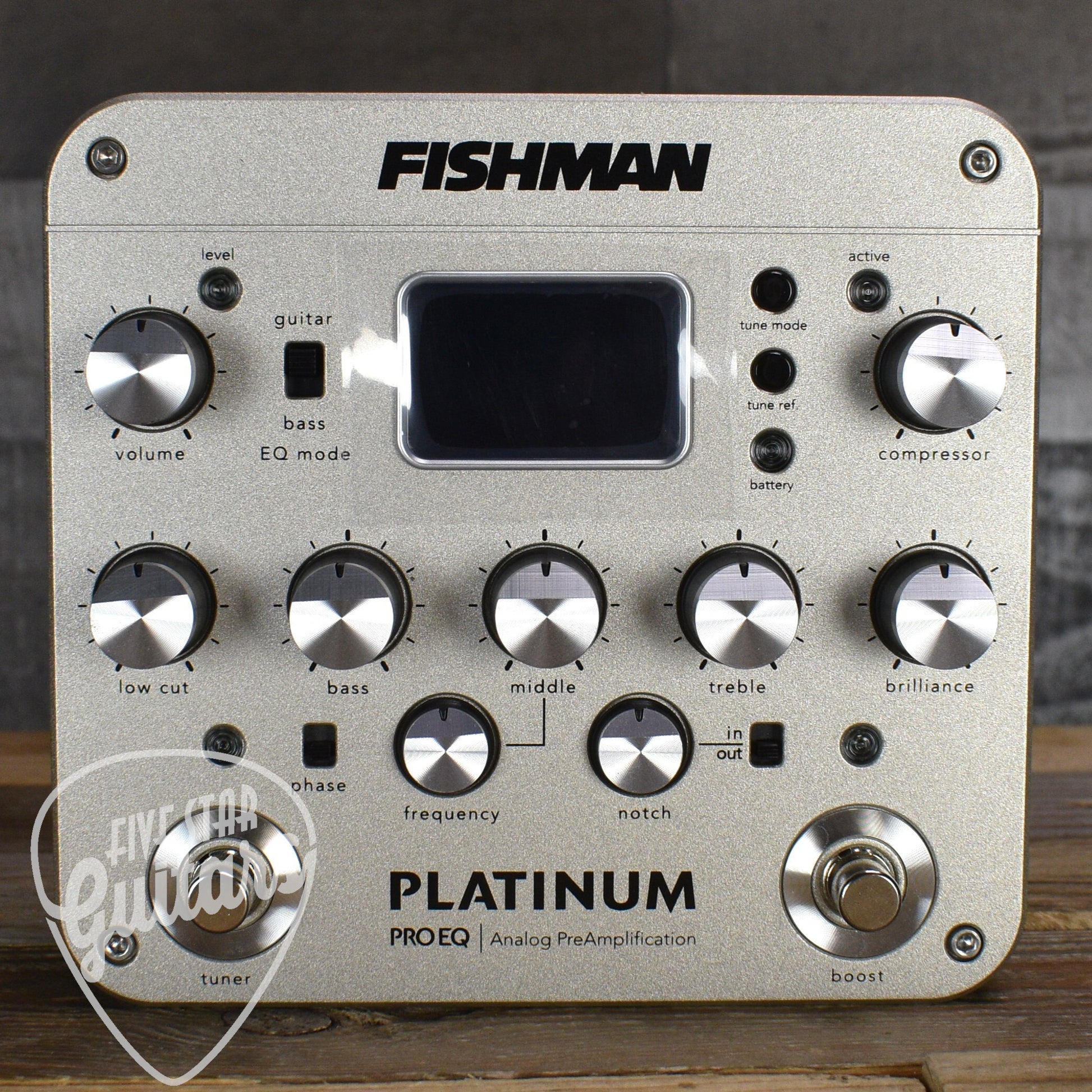

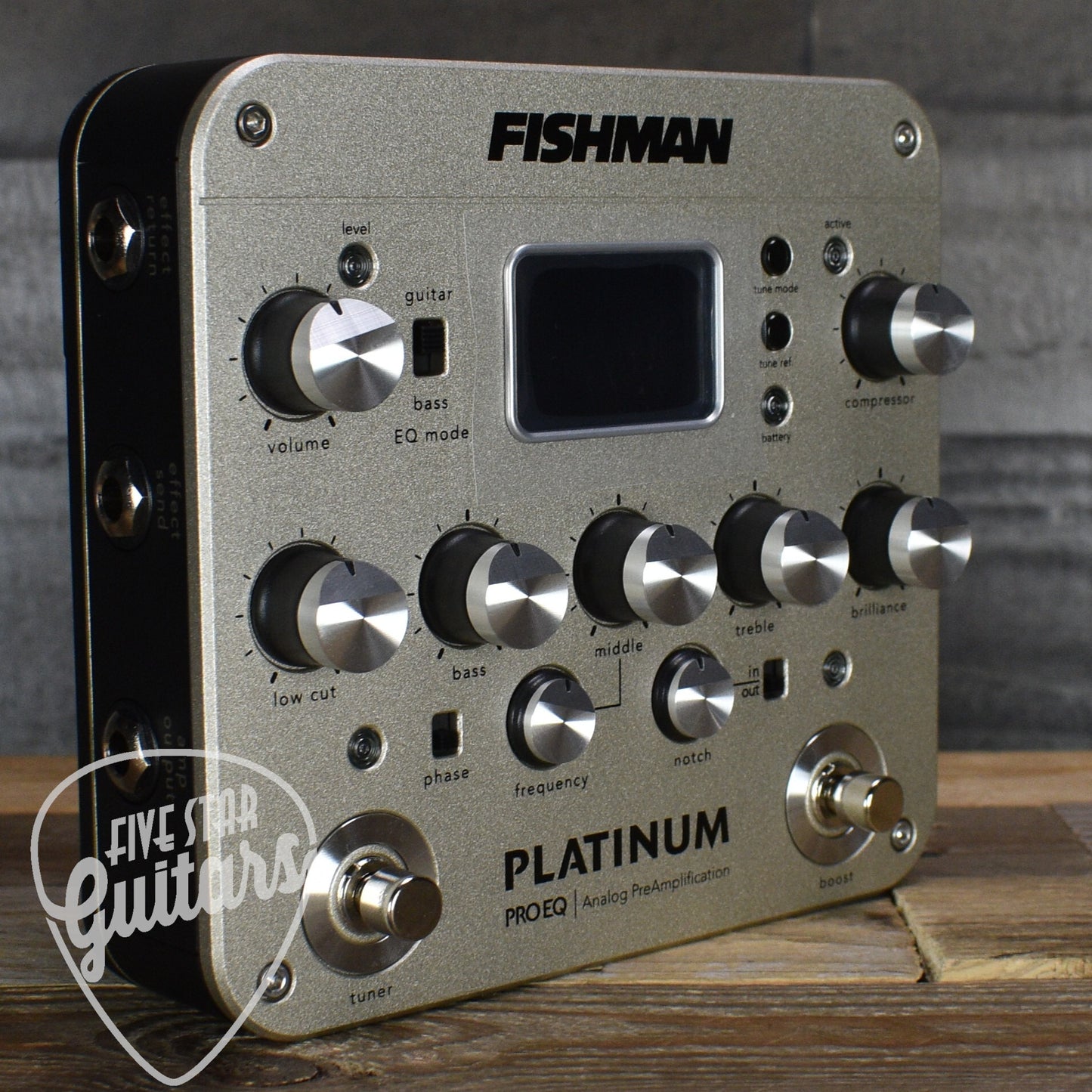

The Fishman Platinum Pro EQ/DI Analog Preamp is a fully-loaded acoustic instrument preamp designed to deliver studio-grade tone shaping in a rugged, stage-ready format. Whether you're plugging into a PA system, studio console, or acoustic amp, the Platinum Pro EQ gives you precise control over every aspect of your sound. Featuring a 5-band tone control section with sweepable mids and a dedicated brilliance knob, this pedal allows you to hone in on every detail of your acoustic tone.

Built-In Tools for Live Performance

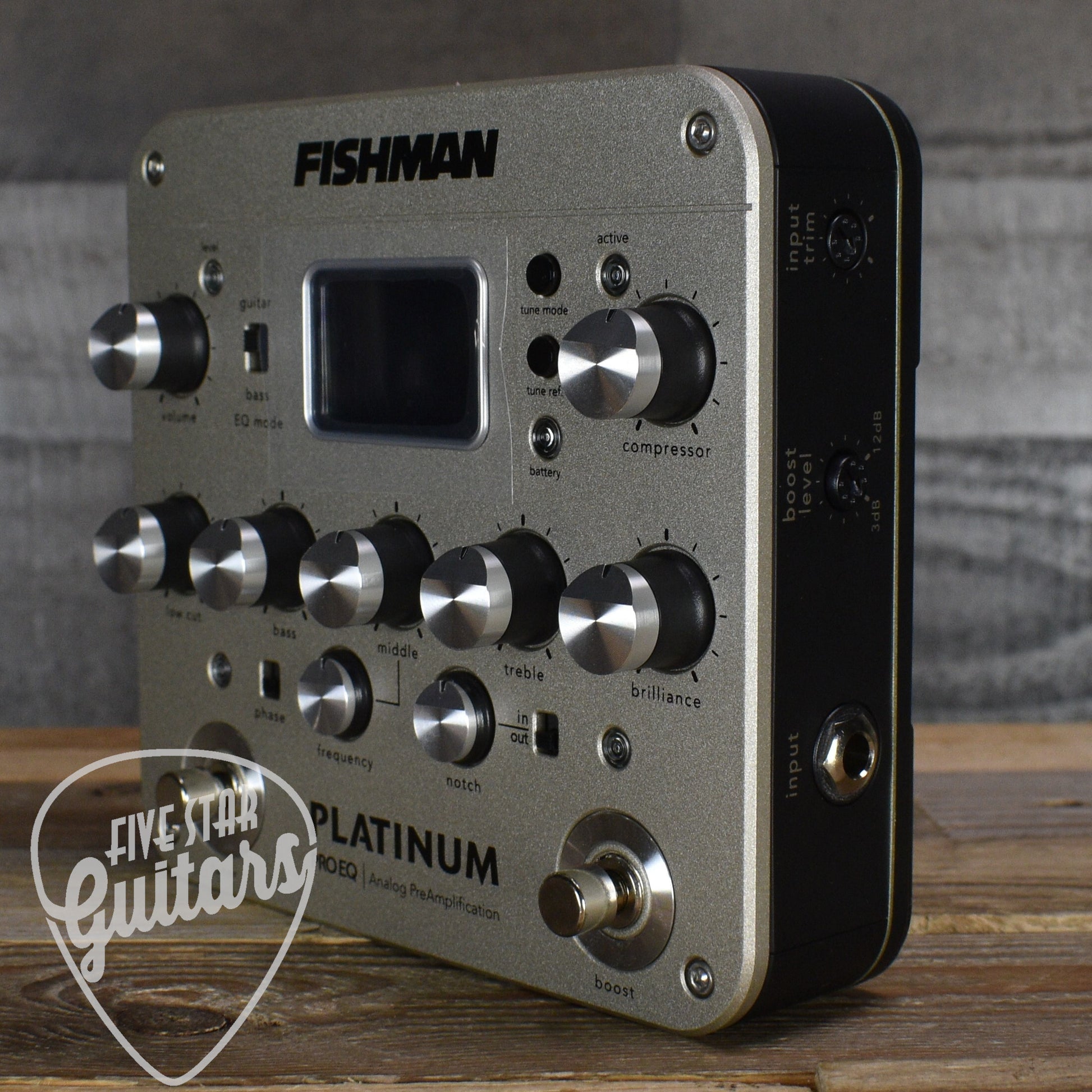

Feedback onstage? The notch filter and phase switch are engineered to target and eliminate problem frequencies fast, keeping your performance smooth and controlled. The boost footswitch delivers a volume jump when you need it most, adjustable from 3dB to 12dB for leads, solos, or more dynamic passages. It’s paired with a level LED and input trim, so dialing in your gain structure is effortless and accurate.

Compression and Clarity

A built-in soft-knee compressor helps control dynamic spikes and smooth out your playing with a single knob. Ideal for performers who want a more even response, the compressor is intuitive and effective without compromising the instrument’s natural tone. Whether you're fingerpicking or strumming aggressively, the compression keeps your signal consistent and musical.

Pro-Level Connectivity

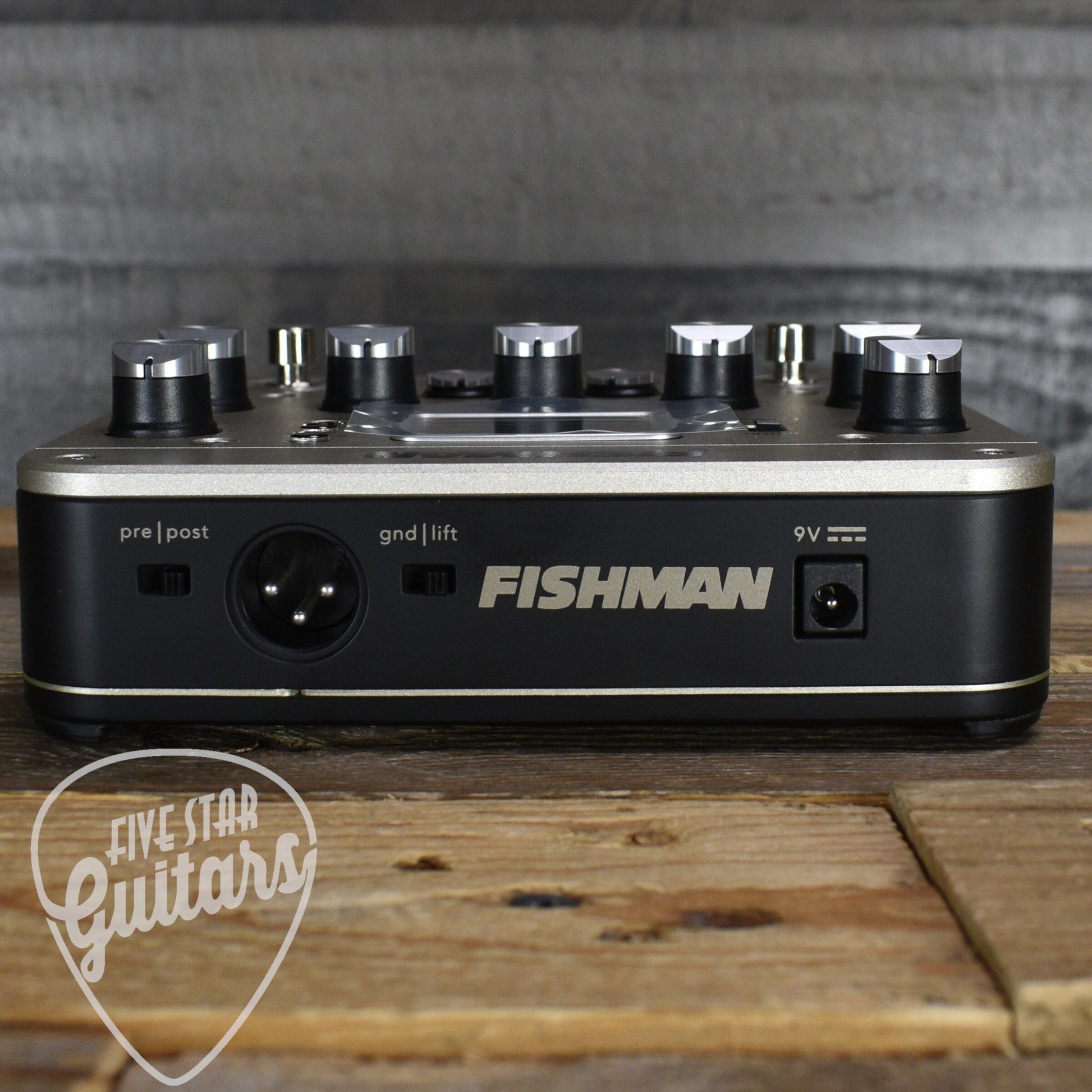

The Platinum Pro EQ includes both 1/4-inch and balanced XLR outputs for full-range signal integration, plus an FX loop for inserting external processors without tone degradation. The DI output features a pre/post EQ switch and ground lift for noise-free, flexible routing to mixers and audio interfaces.

Performance-Grade Extras

You also get a built-in chromatic tuner with dedicated footswitch and a bright, easily readable LED display. The tuner mutes the output while engaged, making mid-set tune-ups silent and stress-free. This preamp runs on a standard 9V battery or DC power supply (not included), giving you the freedom to power it how you choose.

Specifications

• Input impedance: 10M Ohms

• Input trim gain range: -6dB to +14dB

• Amp output level: -∞ to +6dBV

• Amp output impedance: 1k Ohms

• XLR D.I. output level (pre EQ): -10 dB

• XLR D.I. output level (post EQ): 0 dB

• XLR D.I. output impedance: 600 Ohms

• Baseline noise: -90dBA

• Dynamic range: 95dBA

• Low Cut: 10Hz to 160Hz

• Bass: ±12dB @ 115Hz (guitar) / ±12dB @ 85Hz (bass)

• Middle: ±12dB @ 200Hz to 3.1kHz

• Treble: ±12dB @ 6kHz (guitar) / ±12dB @ 3kHz (bass)

• Brilliance: ±7dB @ 10kHz (guitar) / ±7dB @ 5kHz (bass)

• Notch Filter: 45Hz to 370kHz, Q = 8

• Compressor Ratio: 2.5:1, Attack Time: 10ms, Release Time: 100ms

• Tuner Modes: Chromatic, Guitar, Bass, Ukulele, Violin

• Tuning Range: 27.5Hz to 4186Hz

• Tuning Accuracy: ±0.5 cents

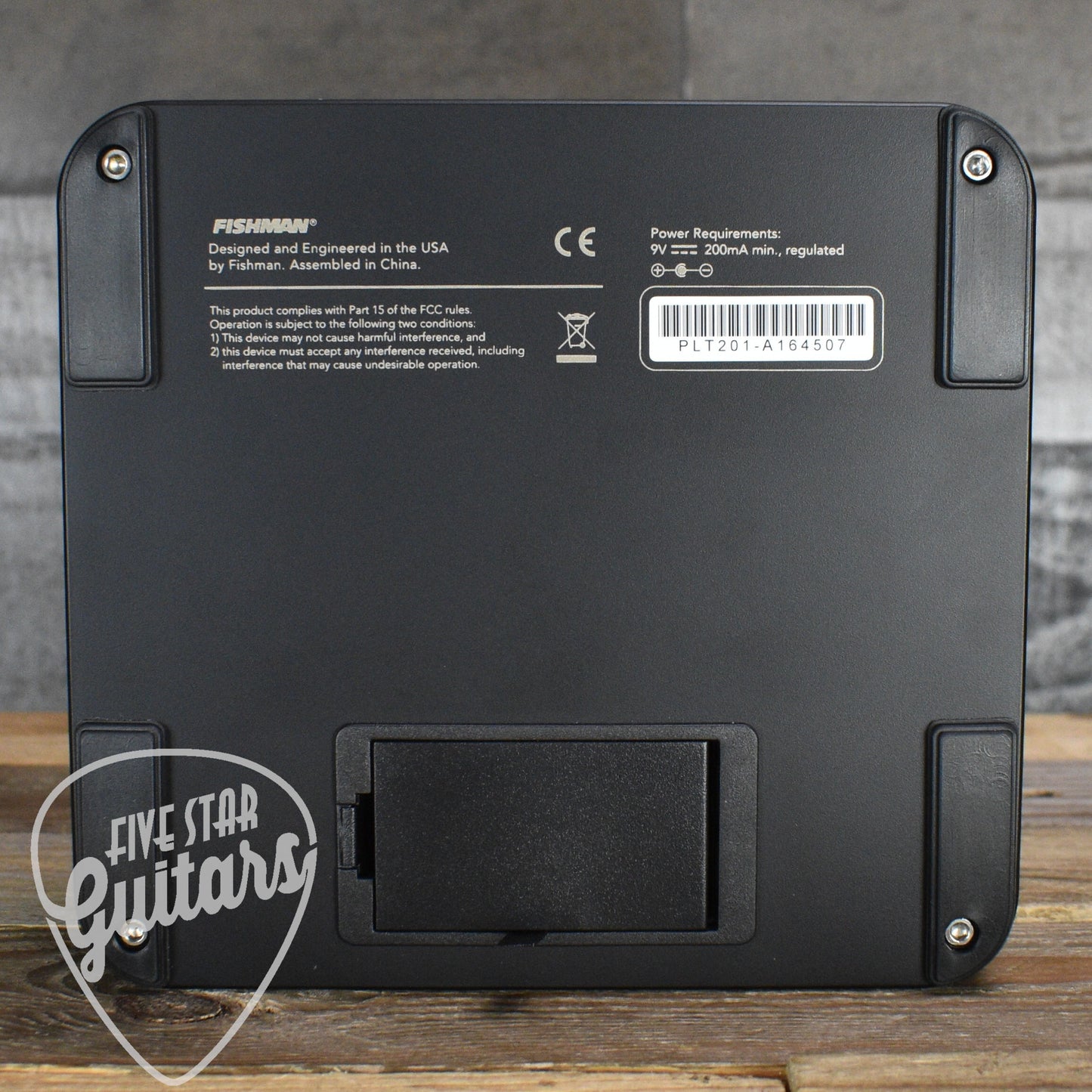

• Power Requirements: 9V battery or 9VDC adapter (not included)

This effects pedal is Brand New and ships fully insured with signature required.
