Dunlop CBM95 Cry Baby Mini Wah
The Dunlop CBM95 Cry Baby Mini Wah - Big Tone in a Compact Package
Classic Wah Sound in a Pedalboard-Friendly Size
The Dunlop CBM95 Cry Baby Mini Wah delivers the iconic wah tones of a full-sized Cry Baby in a compact, space-saving design. Featuring the legendary Fasel inductor, this mini wah offers the same expressive sweep and dynamic response that players have relied on for decades. Whether you need subtle vocal-like modulation or aggressive funk-inspired wah, the CBM95 delivers the full Cry Baby experience in a pedal that's half the size of the original.
Three Selectable Wah Voicings for Versatile Expression
Unlike traditional Cry Baby pedals, the CBM95 features three internally adjustable wah modes:
- Low: A darker, deeper wah with a more pronounced low-end response.
- Vintage: A classic, midrange-focused wah inspired by vintage Cry Baby models.
- GCB95: The standard modern Cry Baby voicing with a balanced, articulate sweep.
These selectable voicings allow players to tailor the wah effect to their personal playing style and musical genre, from warm bluesy sweeps to cutting rock solos.
True Bypass and Road-Ready Durability
Built with high-quality hardware, the CBM95 Mini Wah is designed for rigorous live performance. Its true bypass switching ensures that your signal remains pure and uncolored when the pedal is disengaged. The rugged enclosure and rock-solid construction guarantee durability, making this pedal ideal for gigging musicians and frequent travelers.
Multiple Power Options for Easy Integration

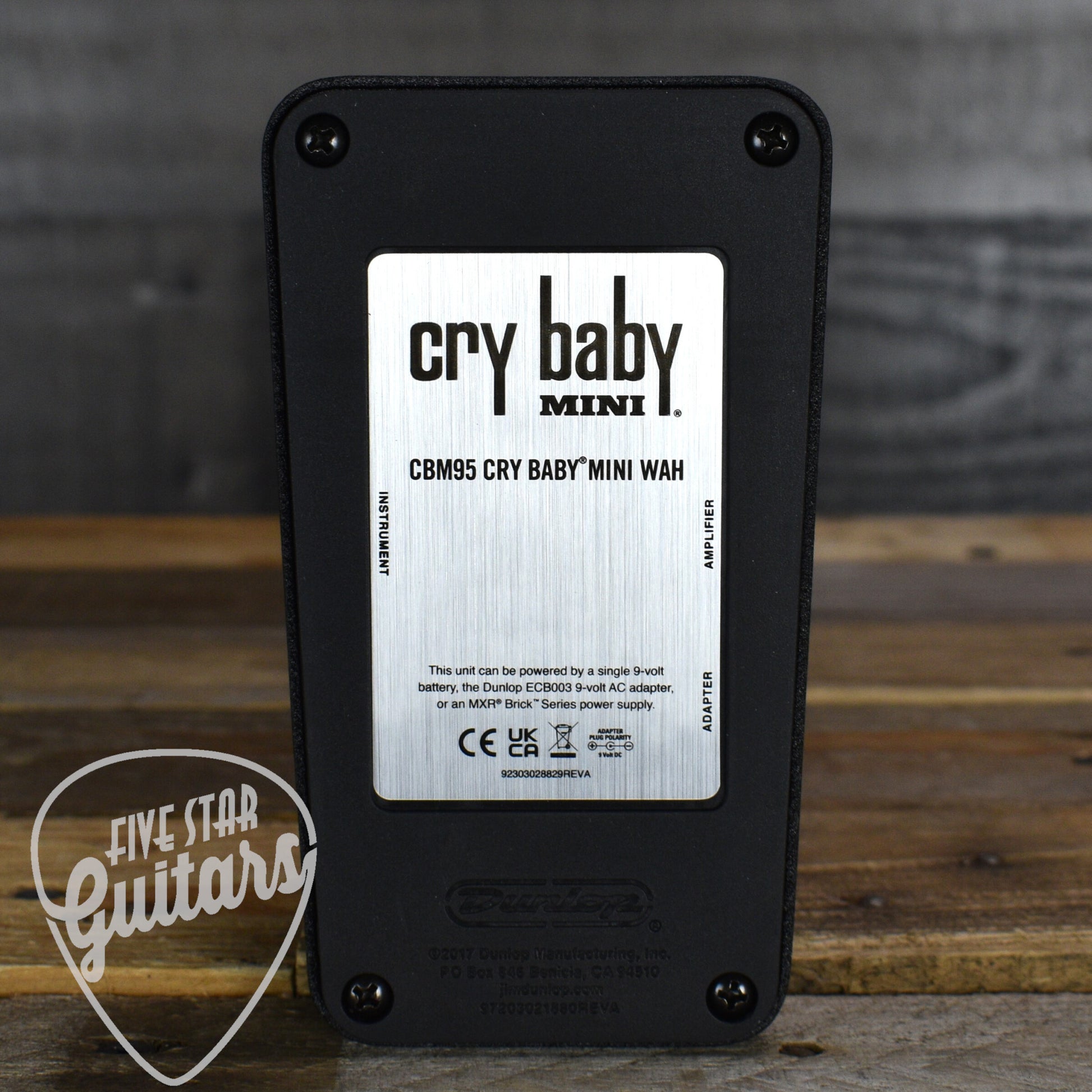

The CBM95 Cry Baby Mini Wah runs on a 9V battery (accessible via the bottom panel) or can be powered using a standard 9V AC adapter ensuring easy compatibility with your pedalboard setup.
Specifications
Power
- Power Source: 9V battery (bottom access) or 9V AC adapter
- Current Draw: 900 µA
Impedance
- Input Impedance: 800 kΩ
- Output Impedance: 10 kΩ
Resonant Frequency
- Heel Down: 350 Hz - 450 Hz
- Toe Down: 1.5 kHz - 2.5 kHz
Maximum Levels
- Input: -8.0 dBV
- Output: +10 dBV
Gain
- Heel Down: +19.5 dB
- Toe Down: +19.0 dB
Bypass Type
- True Hardwire Bypass
Noise Floor (A-weighted, OdBV = 1VRMS)
- Heel Down: -98 dBV
-
Toe Down: -89 dBV
