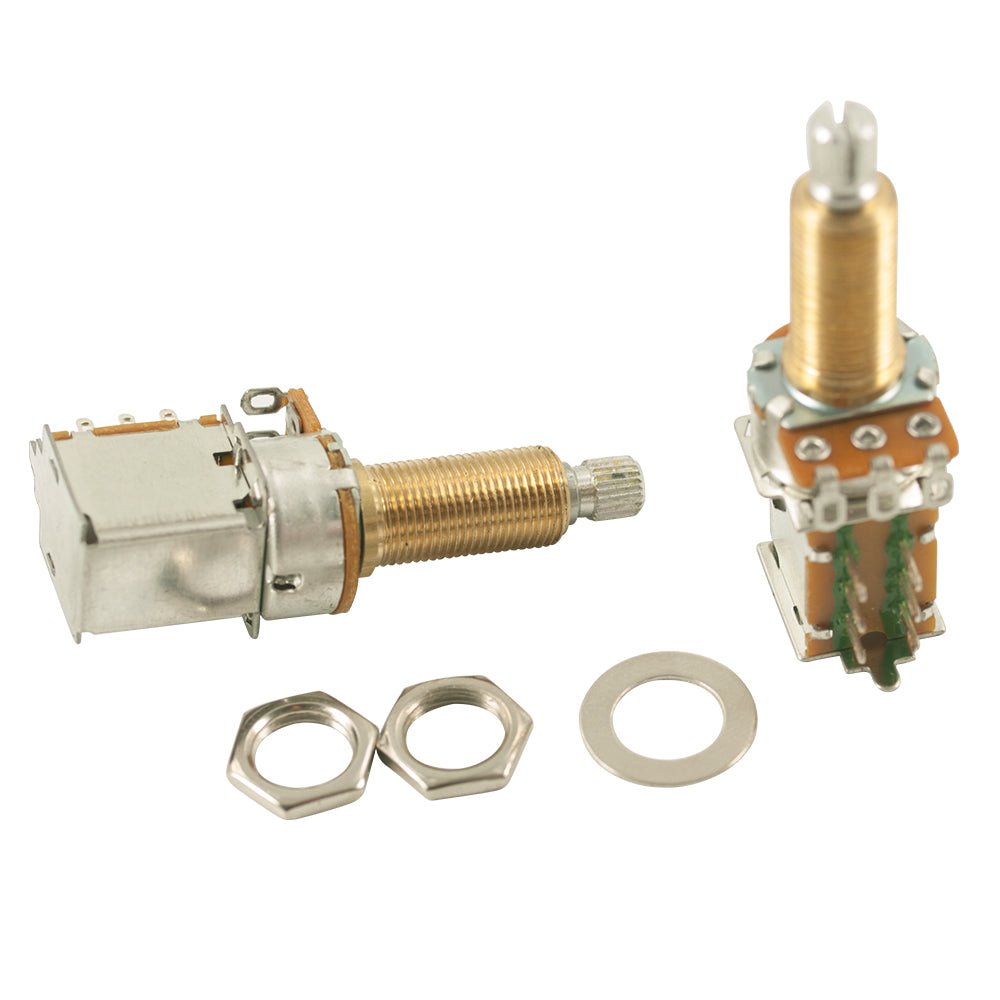

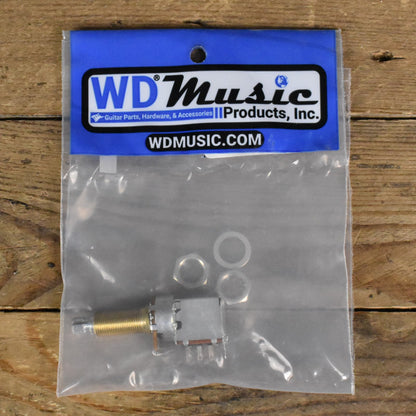

Alpha Potentiometer With Push-Pull DPDT Switch 500k ohm

Alpha full size potentiometer for USA instrument with push-pull or push-push actuator switch used for coil tapping, splitting, phasing, or similar applications.

Measurements:

• Diameter= 24mm
• Bushing Threads = 3/8-32

DPDT Switch:

• Push-Pull

Resistance:

<
• 500 kohm

Taper:

• Audio Taper

Shaft:

• Split Shaft (24 Tooth)

Bushing Length:

• Long Bushing 3/4 in
