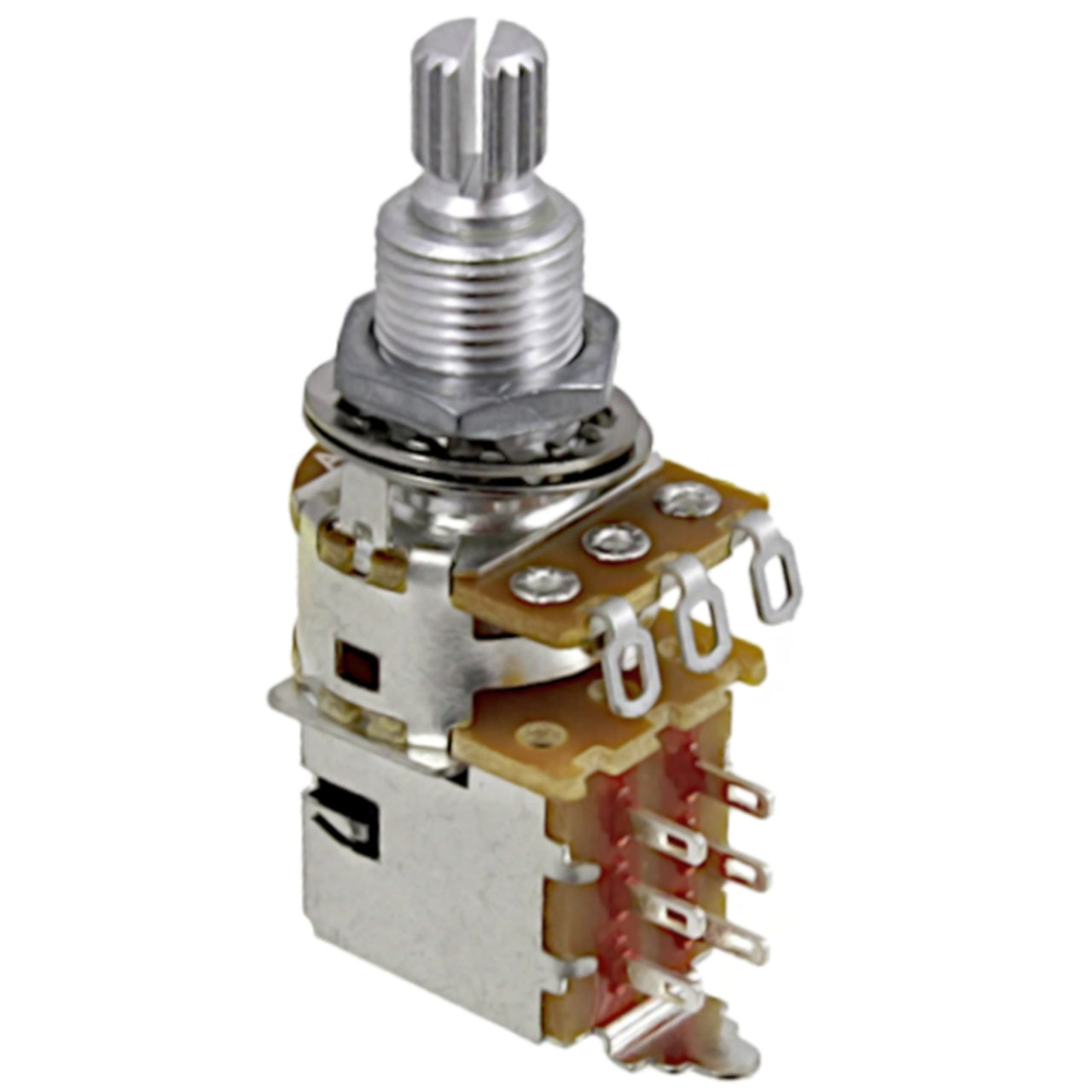

Alpha 25K DPDT Push/Pull pot

Push/Pull 25K double pull double throw Audio Taper Potentiometer with Nut and Washer

Alpha Push/Pull Pot Specs

• Ohms: 25K
• Taper: Audio
• Tolerance: +/-20%
• Pot Diameter: 17mm (.669")
• Shaft Material: Aluminum
• Threaded Shaft Length: 3/8" (.375")
• Shaft Type: Split Knurled
• Threaded Shaft Material: Aluminum
• Spline Count(Type): 18 (Coarse)
• Threaded Shaft Diameter: 3/8" (.375")
• Spline Height: 3/8" (.375")
• Thread Pitch: 3/8-32NEF
• Required Cavity Depth: 1.05"
